Flywheel: Testing and Inspection
FLYWHEEL INSPECTION 1.
Refer to CLUTCH UNIT REMOVAL/INSTALLATION to remove the
flywheel.
Service and Repair 2.

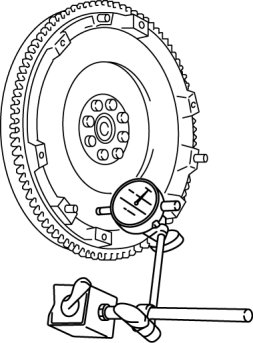

Install a dial gauge on the cylinder block.
3.
Measure the
flywheel runout using a dial gauge.
-
If the runout is excessive, replace the
flywheel.
Service and RepairFlywheel runout limit -
0.1 mm {0.004 in}
