Trunk / Liftgate Relay: Service and Repair
TRUNK LID OPENER RELAY REMOVAL/INSTALLATION 1.
Remove the battery cover.
2.
Disconnect the negative battery cable.
Removal and Replacement 3.
Remove the trunk end trim.
Trunk End Trim Removal/Installation 4.

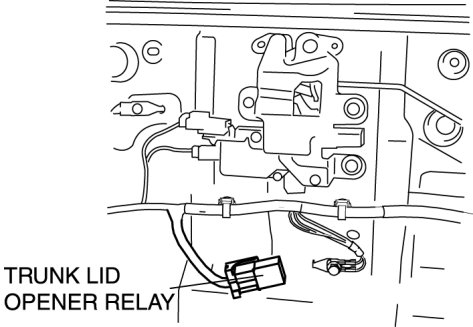

Remove the trunk lid opener relay.
5.
Install in the reverse order of removal.
