Security Light 11

SECURITY LIGHT: 11, DTC: B10D9:87/P1260:00 [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)]

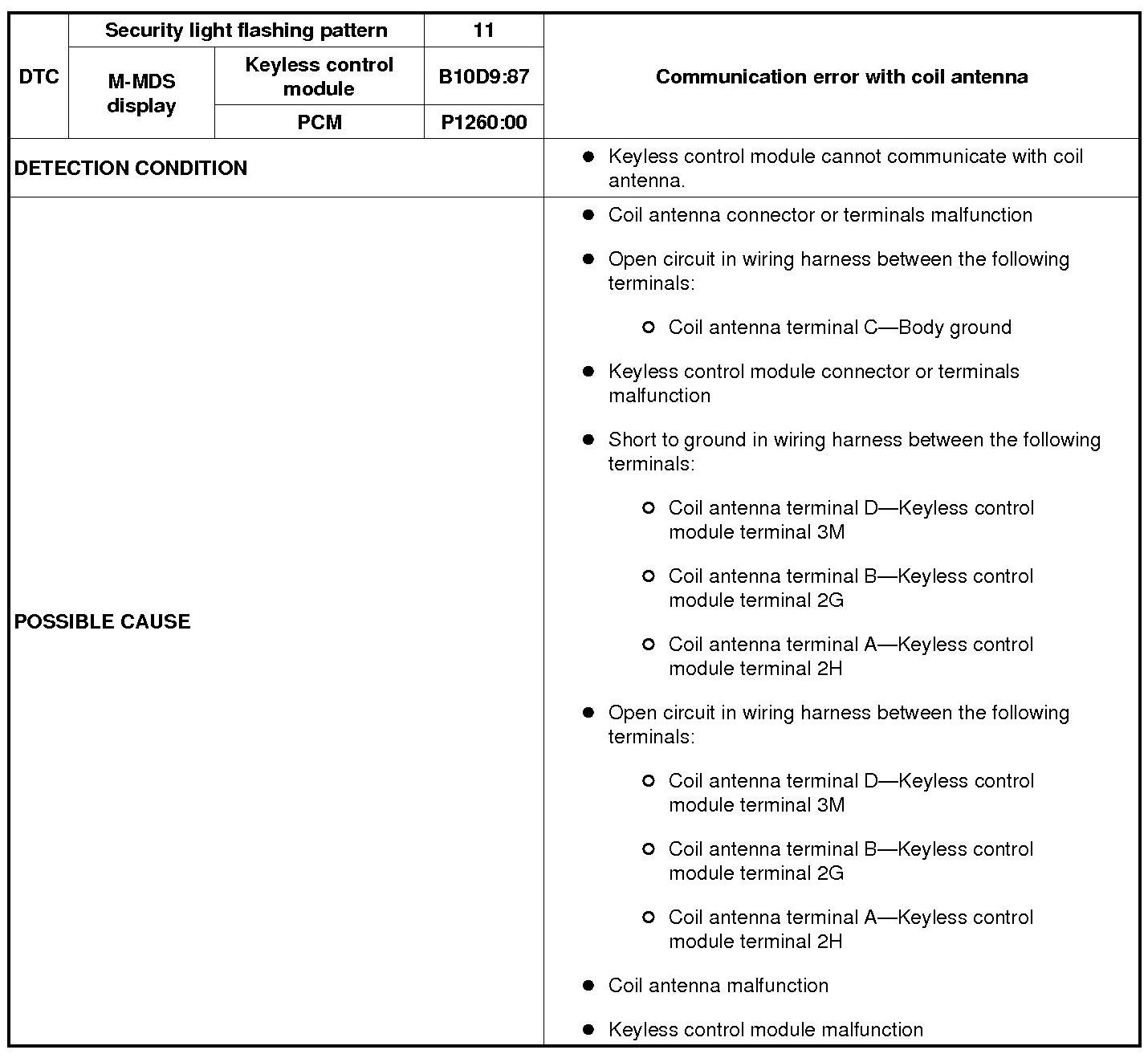

Detection Condition/Possible cause (Part 1):

Detection Condition/Possible cause (Part 2):

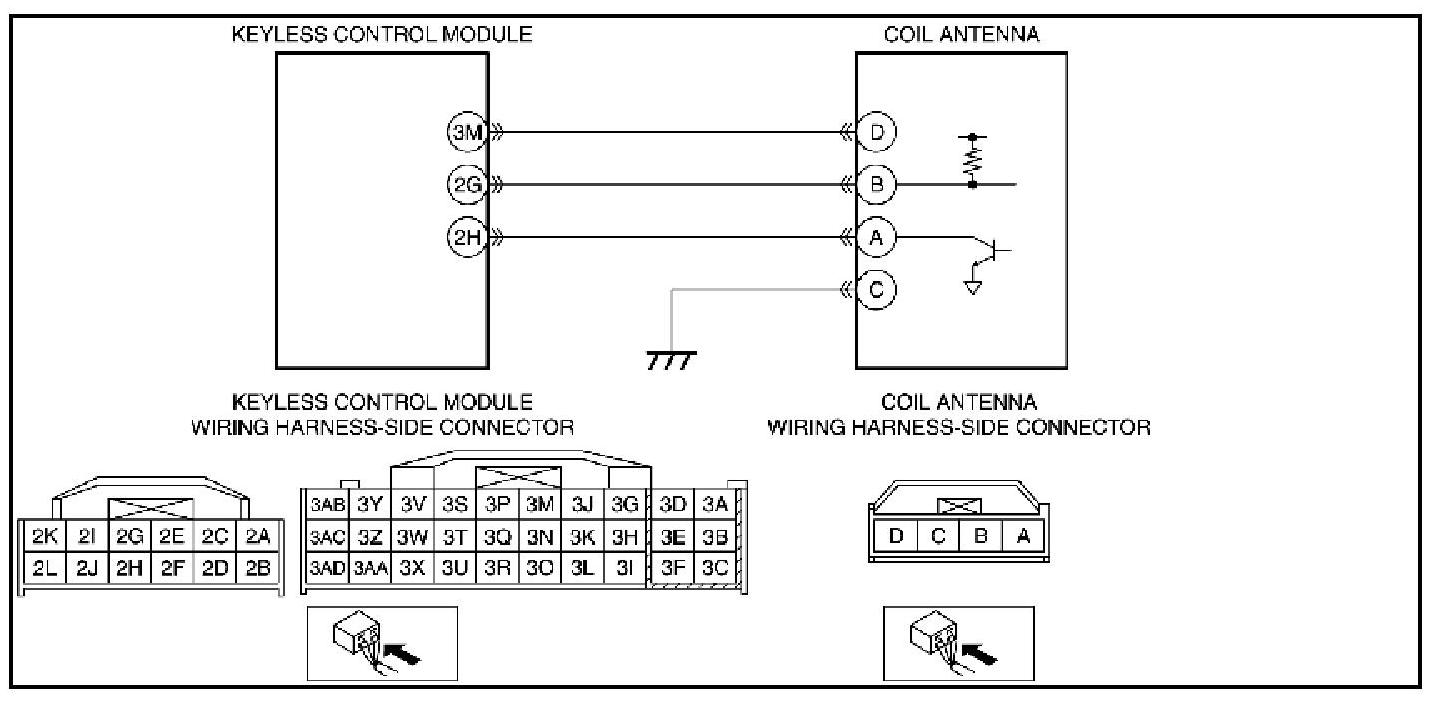

Diagnostic Procedure

Security Light 11

Detection Condition/Possible cause (Part 1):

Detection Condition/Possible cause (Part 2):

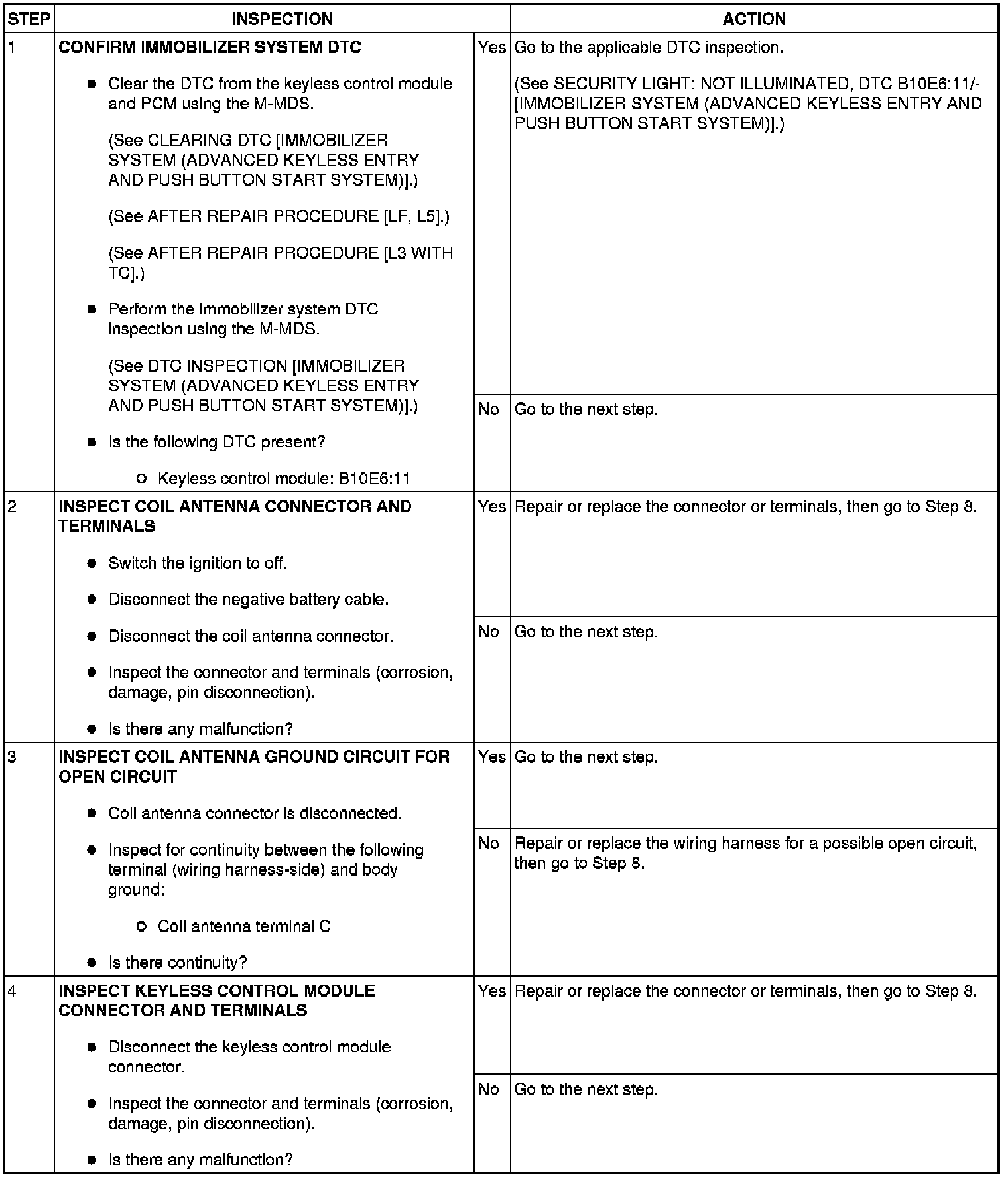

Step 1-Step 4:

Step 5-Step 6:

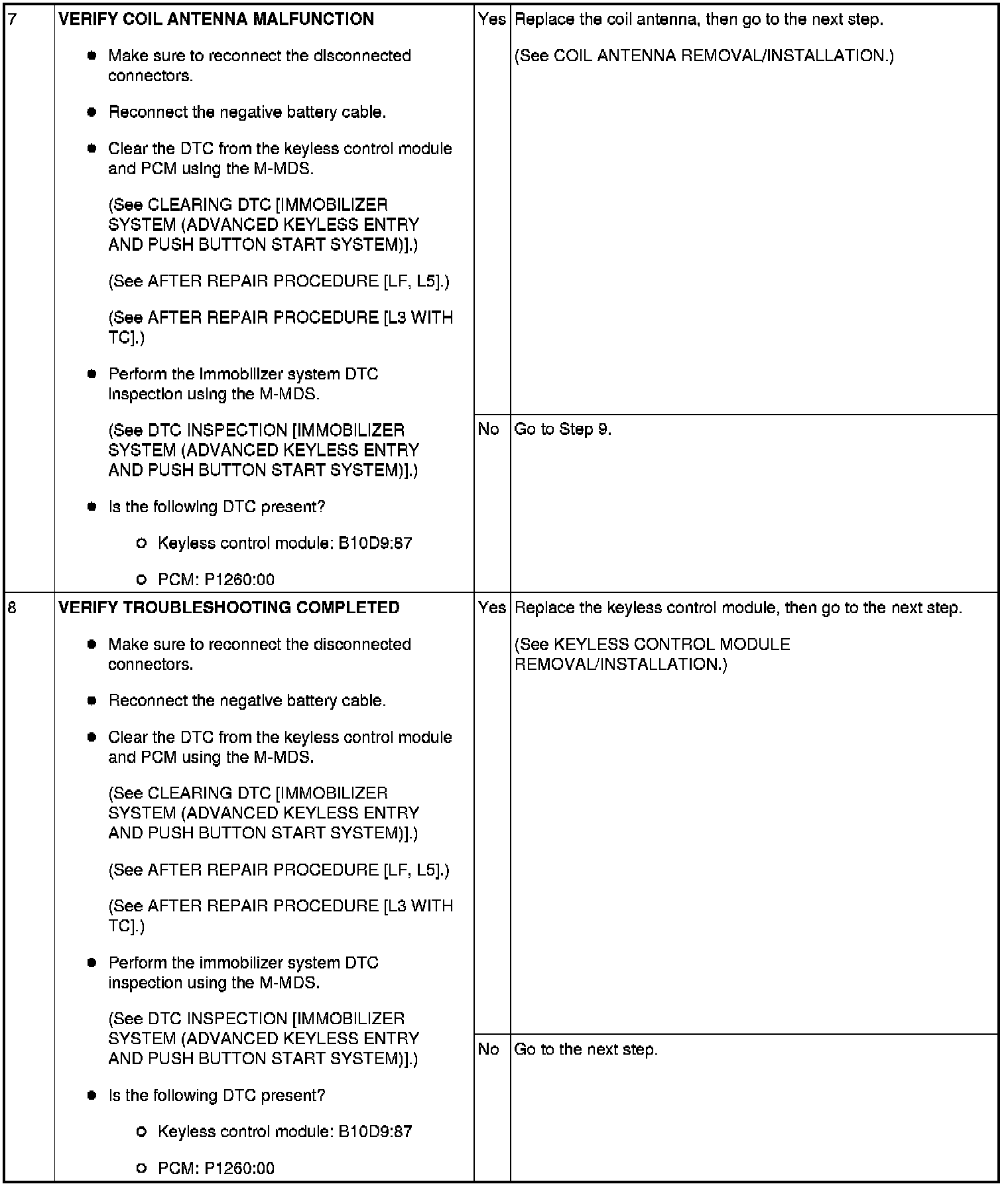

Step 7-Step 8:

Step 9:
