Bolt Re-Usability

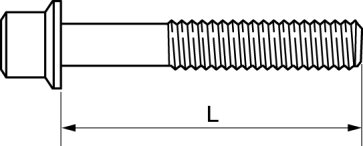

Measure the length of each cylinder head bolt. Replace any cylinder head bolts that exceed the maximum length.
Cylinder head bolt length
Standard:
144.7-145.3 mm {5.697-5.720 in}
Maximum:
146 mm {5.74 in}
