Trunk / Liftgate Switch: Service and Repair

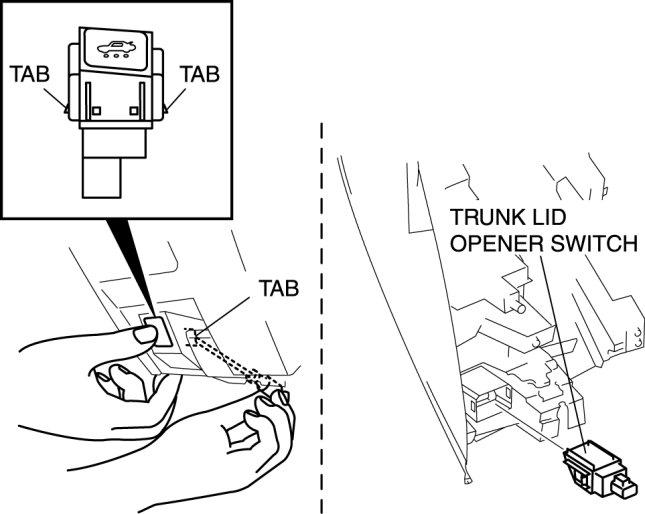

TRUNK LID OPENER SWITCH REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Using a small flathead screwdriver, detach the tabs of the trunk lid opener switch from the dashboard.
3.
Push the trunk lid opener switch into the dashboard and remove.
4.
Disconnect the trunk lid opener switch connector.
5.
Install in the reverse order of removal.
