Intake Manifold

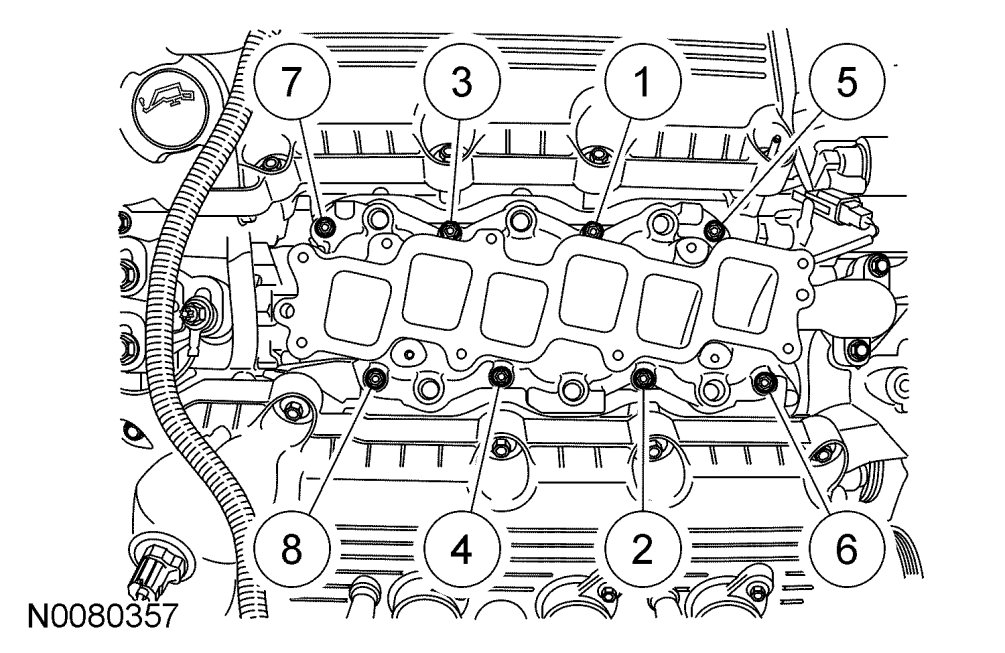

Lower Intake ManifoldTighten in the sequence shown to
10 Nm {0.1 kgf-m, 89 in-lbf}

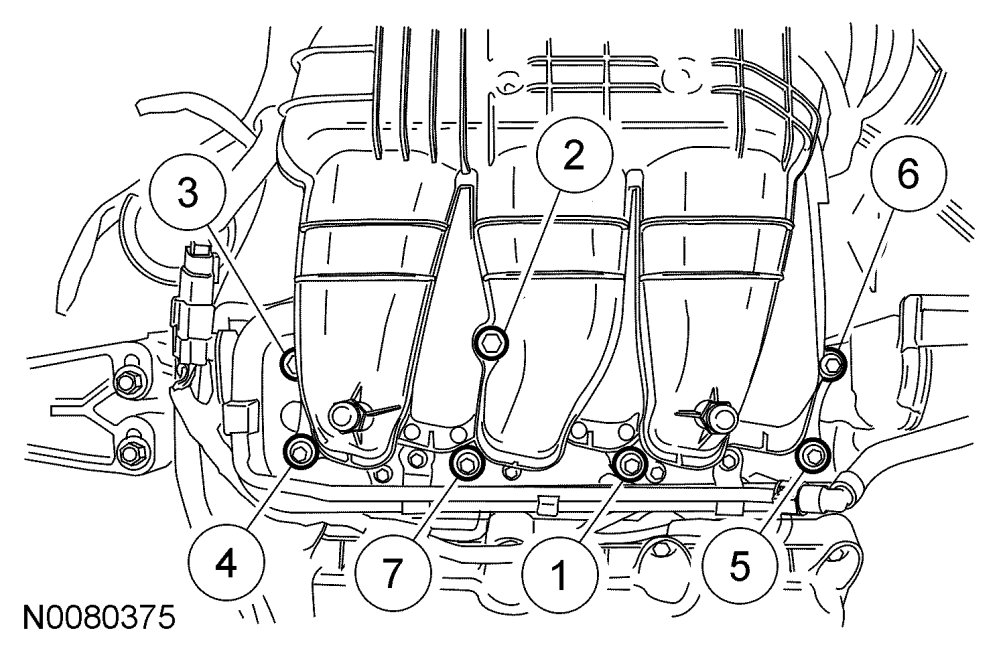

Upper Intake ManifoldTighten the bolts in 2 stages in the sequence shown
Stage 1: Tighten to
10 Nm {1.0 kgf-m, 89 in-lbf}
Stage 2: Tighten an additional
45 degrees
2 upper intake manifold support bracket bolts
Tighten to
10 Nm {1.0 kgf-m, 89 in-lbf}
