Front Bumper Bracket: Service and Repair







FRONT BUMPER BRACKET REMOVAL [PANEL REPLACEMENT]

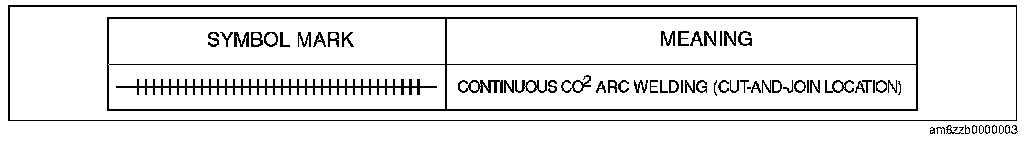

Symbol Mark







Removal Procedure

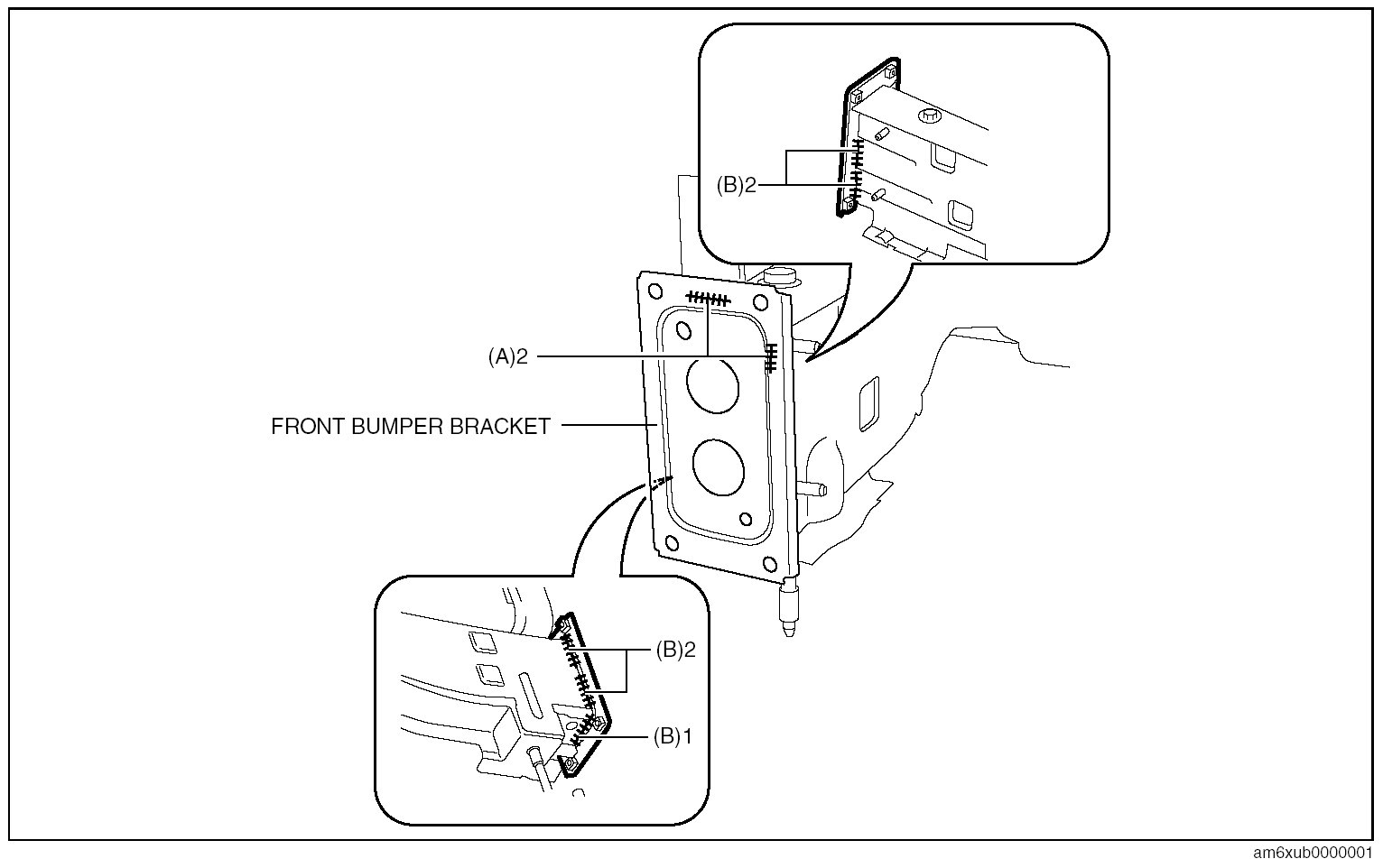

1. Grind the 2 locations indicated by (A) shown in the figure.







2. Grind the 5 locations indicated by (B) shown in the figure.
3. Remove the front bumper bracket.

FRONT BUMPER BRACKET INSTALLATION [PANEL REPLACEMENT]

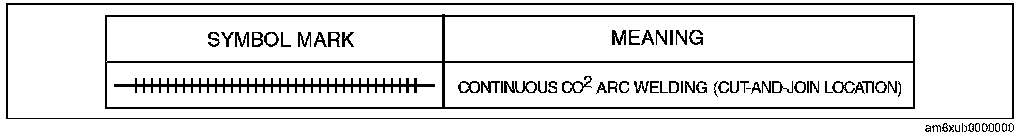

Symbol Mark







Installation Procedure
1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.
2. After temporarily installing new parts, make sure the related parts fit properly.

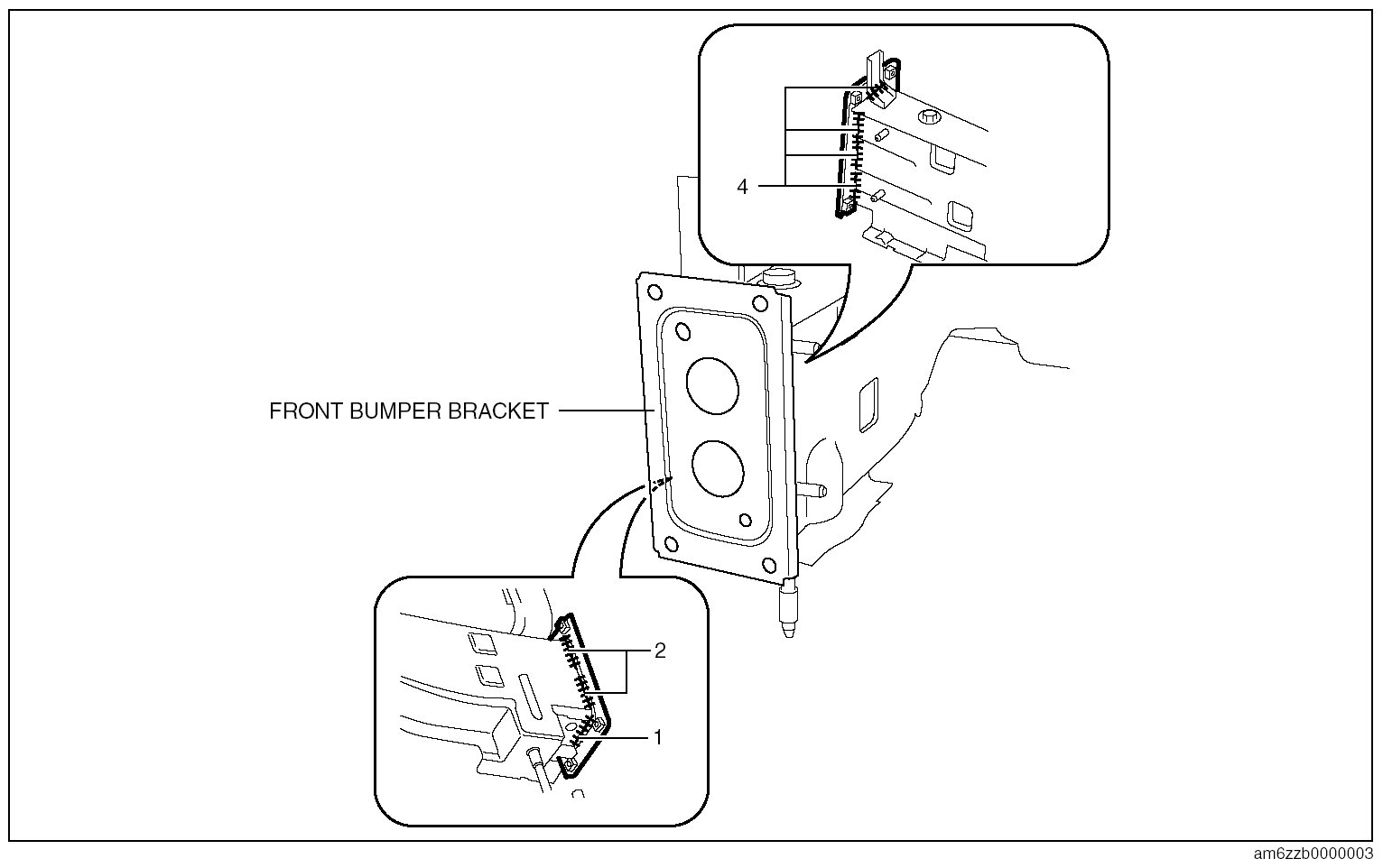

3. Continuous CO2 arc weld the 7 locations shown in the figure.
