Overhaul

REAR BUMPER DISASSEMBLY/ASSEMBLY

CAUTION:
Vehicles with BSM system
- Sticking reflecting objects such as stickers.
- Dust and dirt
- Sticking metals
- Applying putty
- The following acts are prohibited in order to prevent the improper reflections of the Blind Spot Monitoring Rader.

- Sticking objects including stickers on the surface of the rear bumper
- Applying putty to the surface of the rear bumper

- Keep the surface of the rear bumper clean. Dust and dirt may interfere with the proper reflections of the Blind Spot Monitoring Rader, which may cause malfunction.

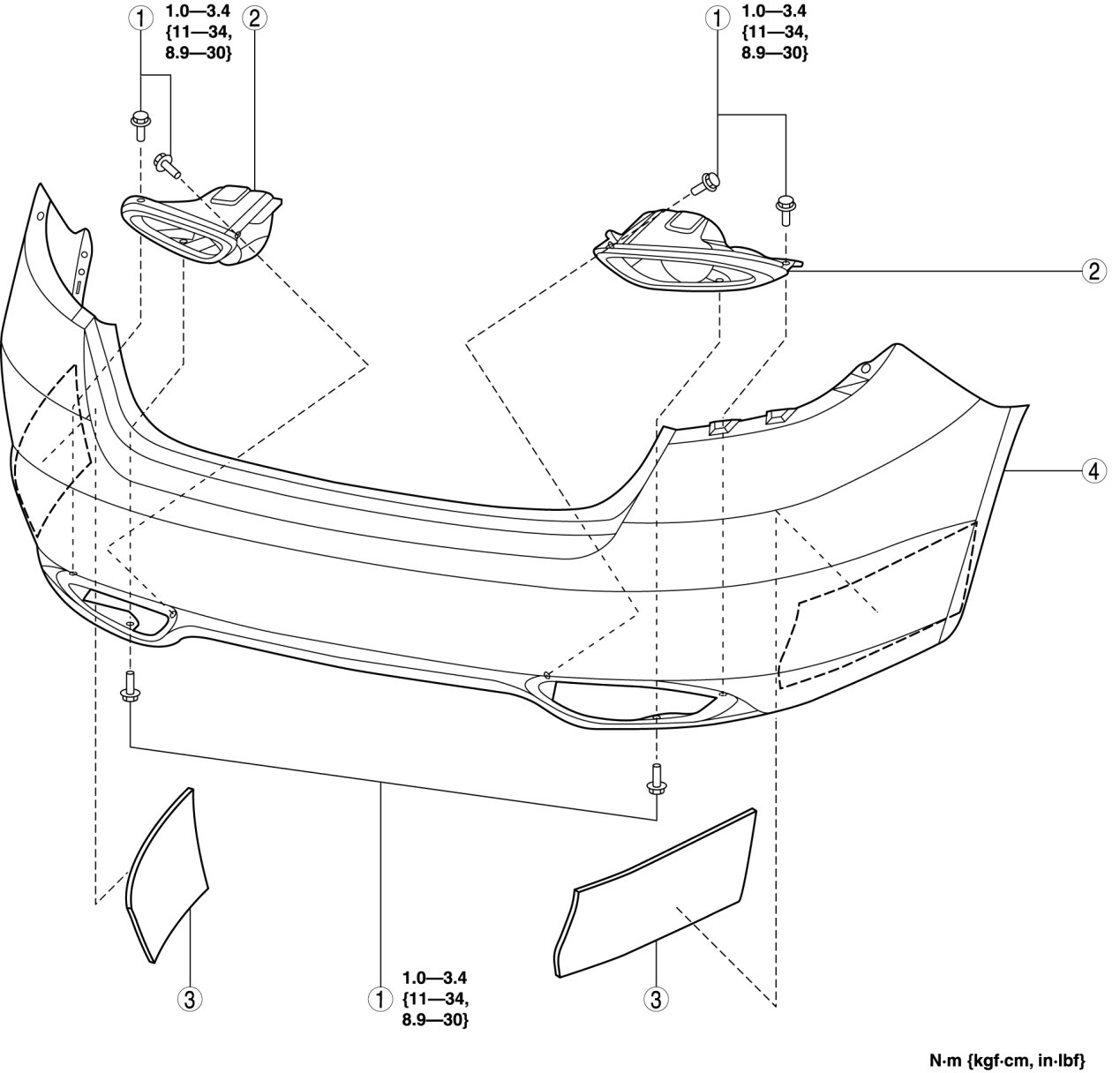

A Type

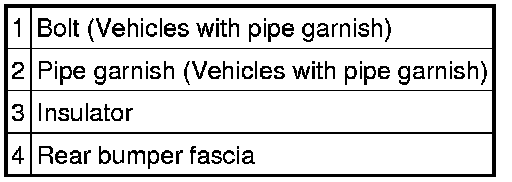

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.

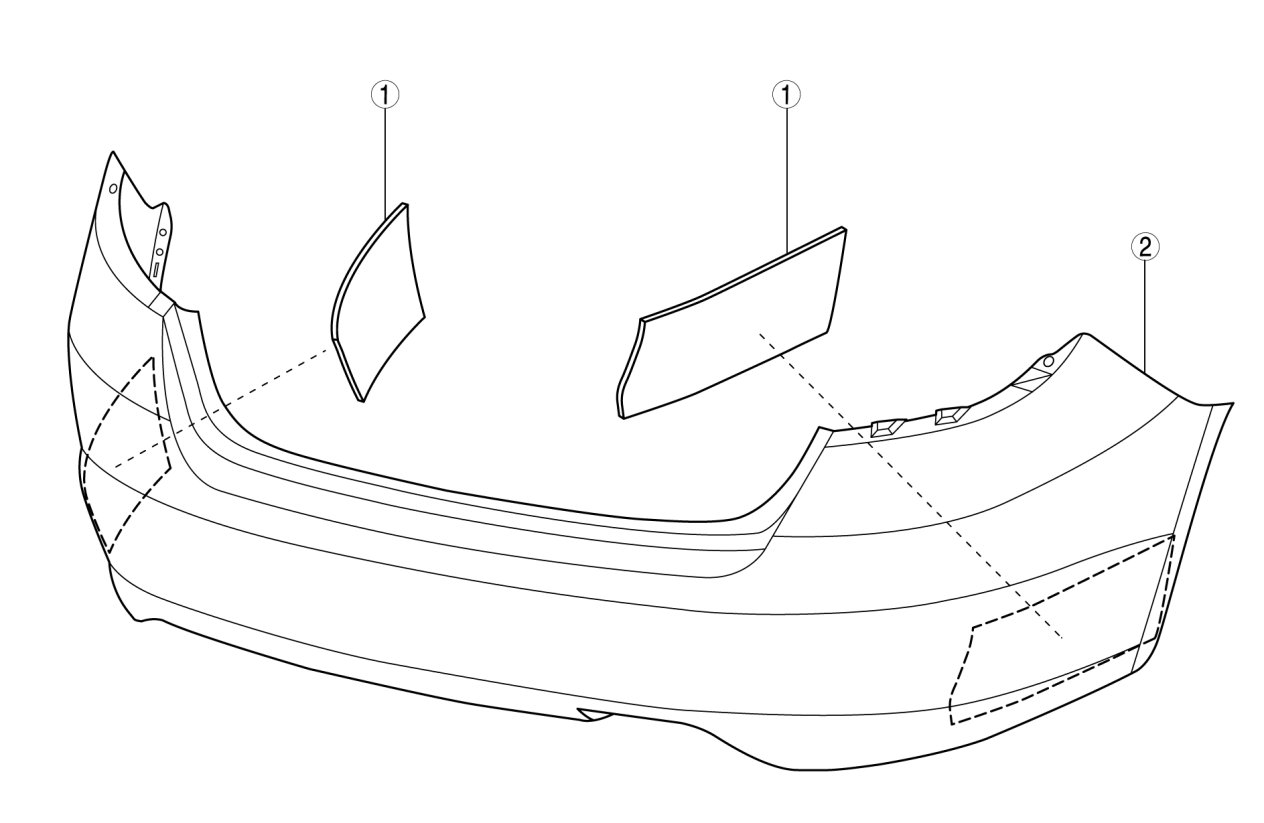

B Type

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.
