Rear Fender Liner: Service and Repair

REAR MUDGUARD REMOVAL/INSTALLATION

1. Remove the splash shield. (See Splash Shield Removal/Installation )

2. Remove the cap nuts A, B and fastener C.

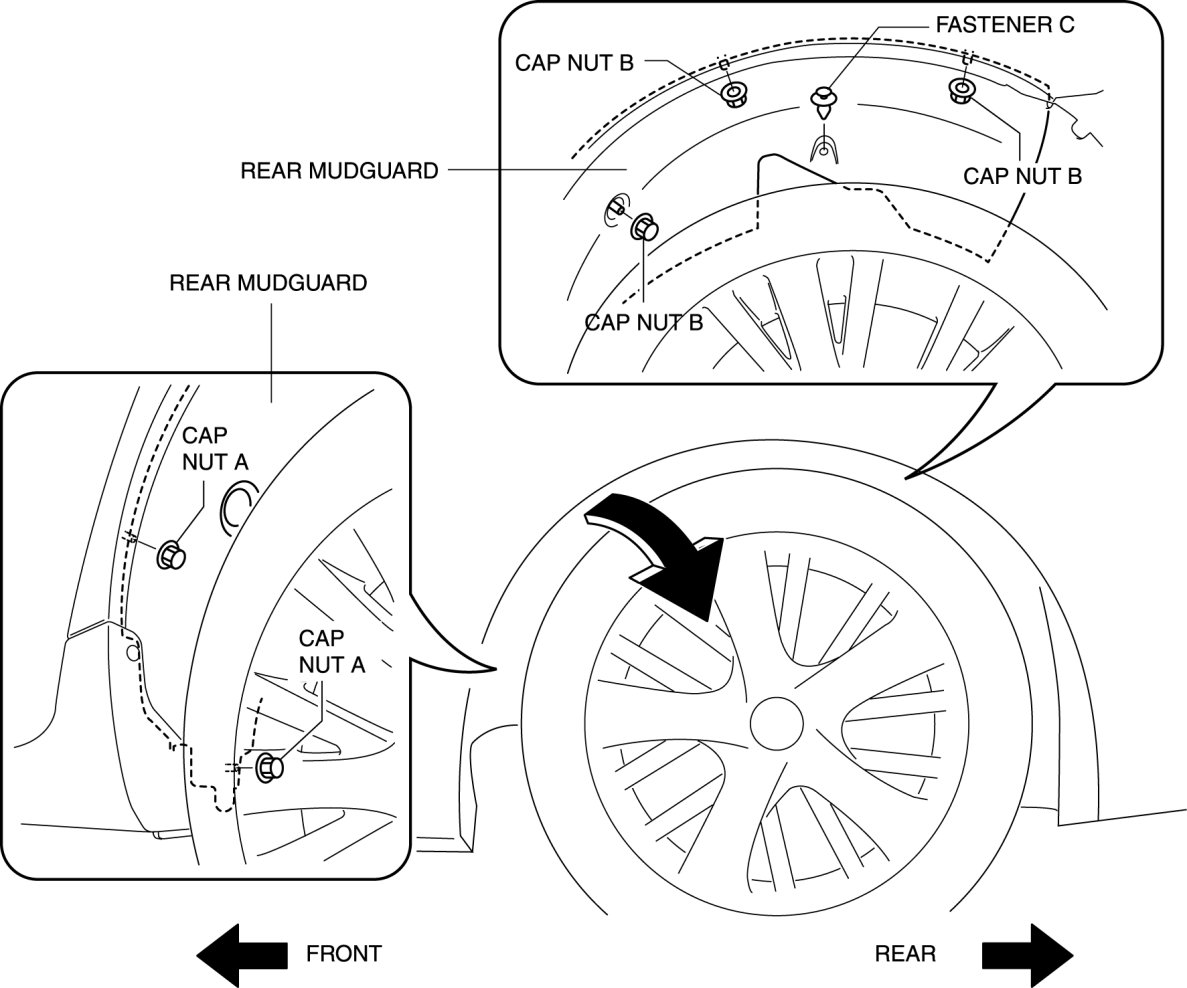

3. Remove the rear mudguard in the direction of the arrow shown in the figure.

4. Install in the reverse of removal.
