Outer Mirror Glass Inspection

OUTER MIRROR GLASS INSPECTION

Auto-dimming

1. Disconnect the negative battery cable.

2. Remove the outer mirror glass.

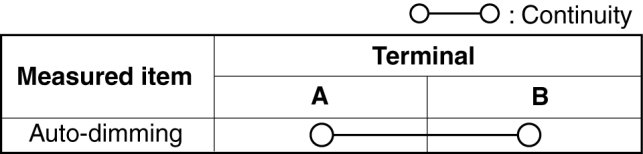

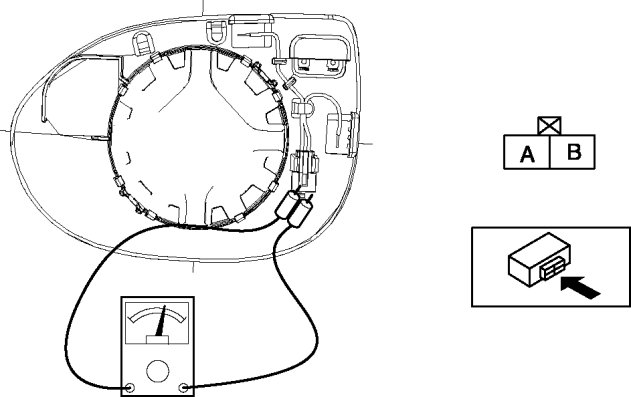

3. Verify that the continuity is as indicated in the table.

4. Verify that the continuity between outer mirror glass terminal and the body ground is as indicated in the table.

- If not as indicated in the table, replace the outer mirror glass. Outer Mirror Glass Removal Outer Mirror Glass Installation
