Wiper Bracket

WIPER BRACKET COMPONENT REMOVAL [PANEL REPLACEMENT]

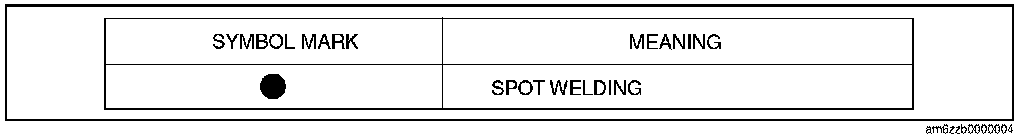

Symbol Mark







Removal Procedure

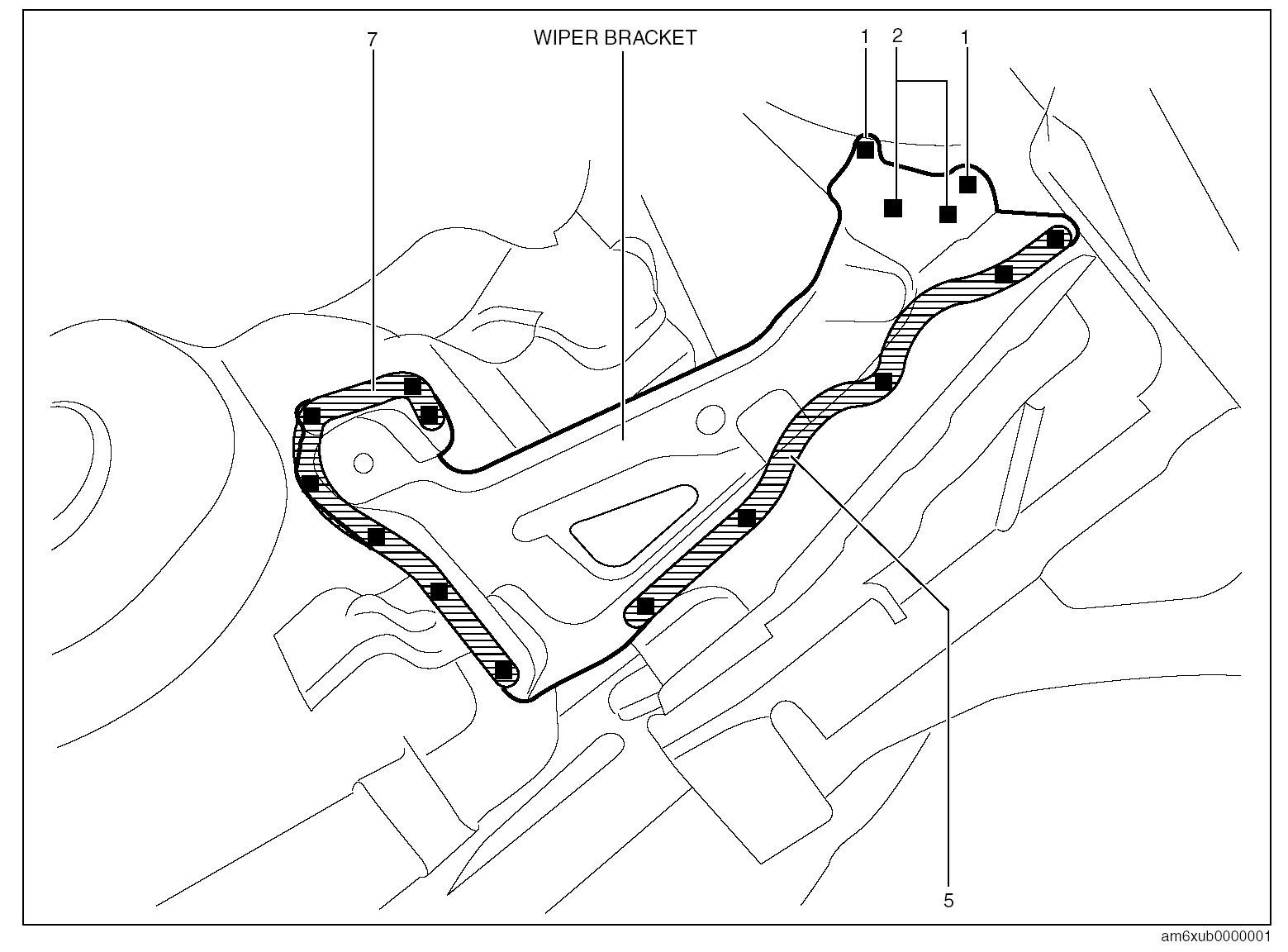

1. Drill the 16 locations indicated shown in the figure.







2. Remove the wiper bracket.

WIPER BRACKET COMPONENT INSTALLATION [PANEL REPLACEMENT]

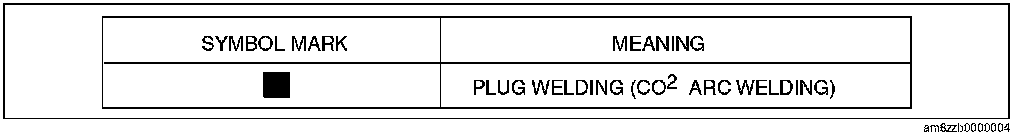

Symbol Mark







Installation Procedure
1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.
2. Drill holes for the plug welding before installing the new parts.
3. After temporarily installing new parts, make sure the related parts fit properly.

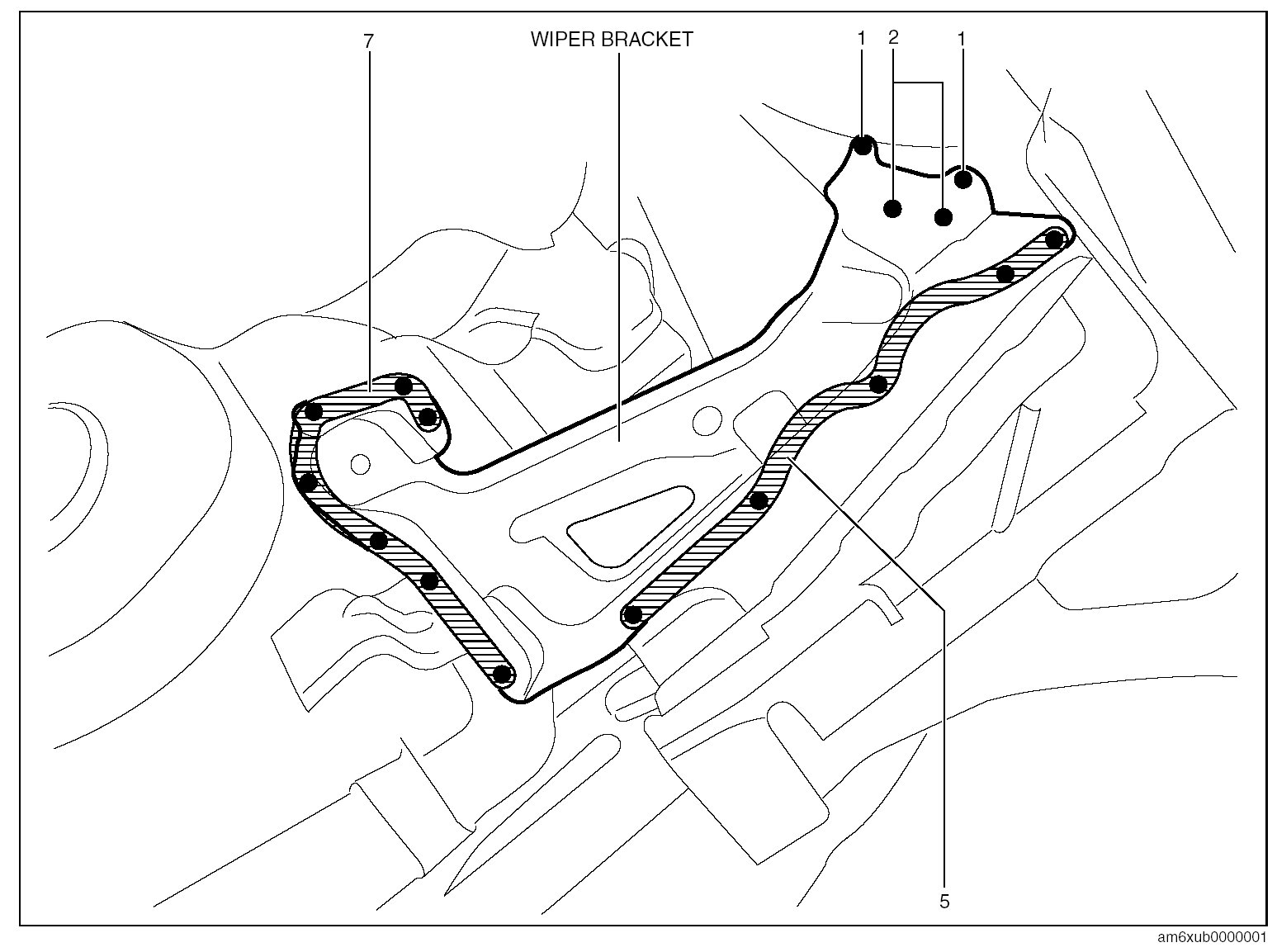

4. Plug weld the 16 locations indicated shown in the figure.
