Caliper (Rear) Disassembly/Assembly

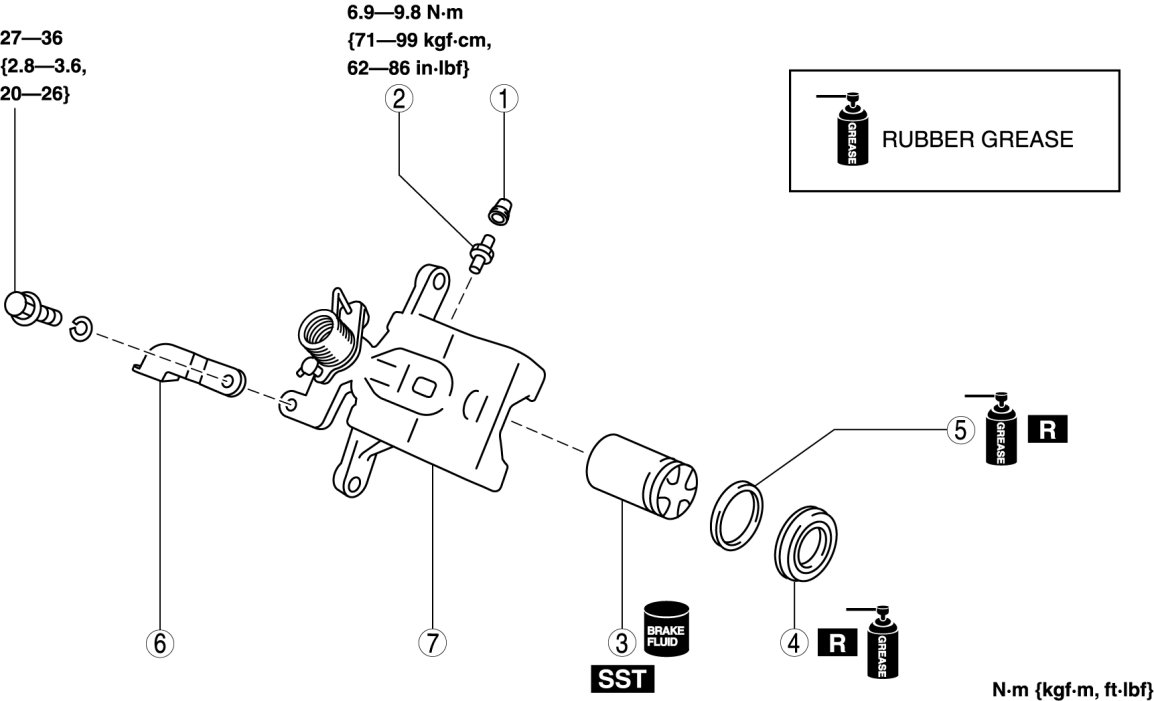

CALIPER (REAR) DISASSEMBLY/ASSEMBLY 1.
Disassemble in the order indicated in the table.
2.
Assemble in the reverse order of disassembly.

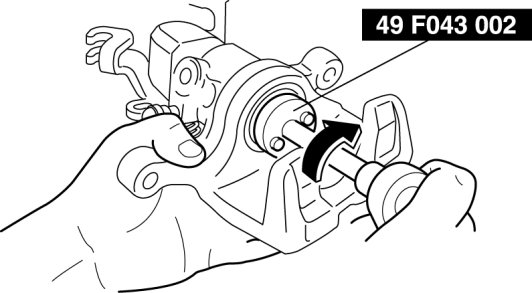

Piston Disassembly Note 1.
Rotate the piston counterclockwise using the
SST and remove it from the caliper body.
Piston Assembly Note 1.
Rotate the piston clockwise slowly using the
SST and press the piston into the caliper body completely.
