Hydraulic Assembly: Testing and Inspection
DSC HU/CM INSPECTION 1.
Disconnect the DSC HU/CM connector.
Service and Repair 2.
Connect the negative battery cable.
Removal and Replacement Removal and Replacement 3.
Attach the tester lead to the DSC HU/CM wiring harness-side connector, then inspect the voltage, continuity, or resistance according to the standard (reference) on the table.

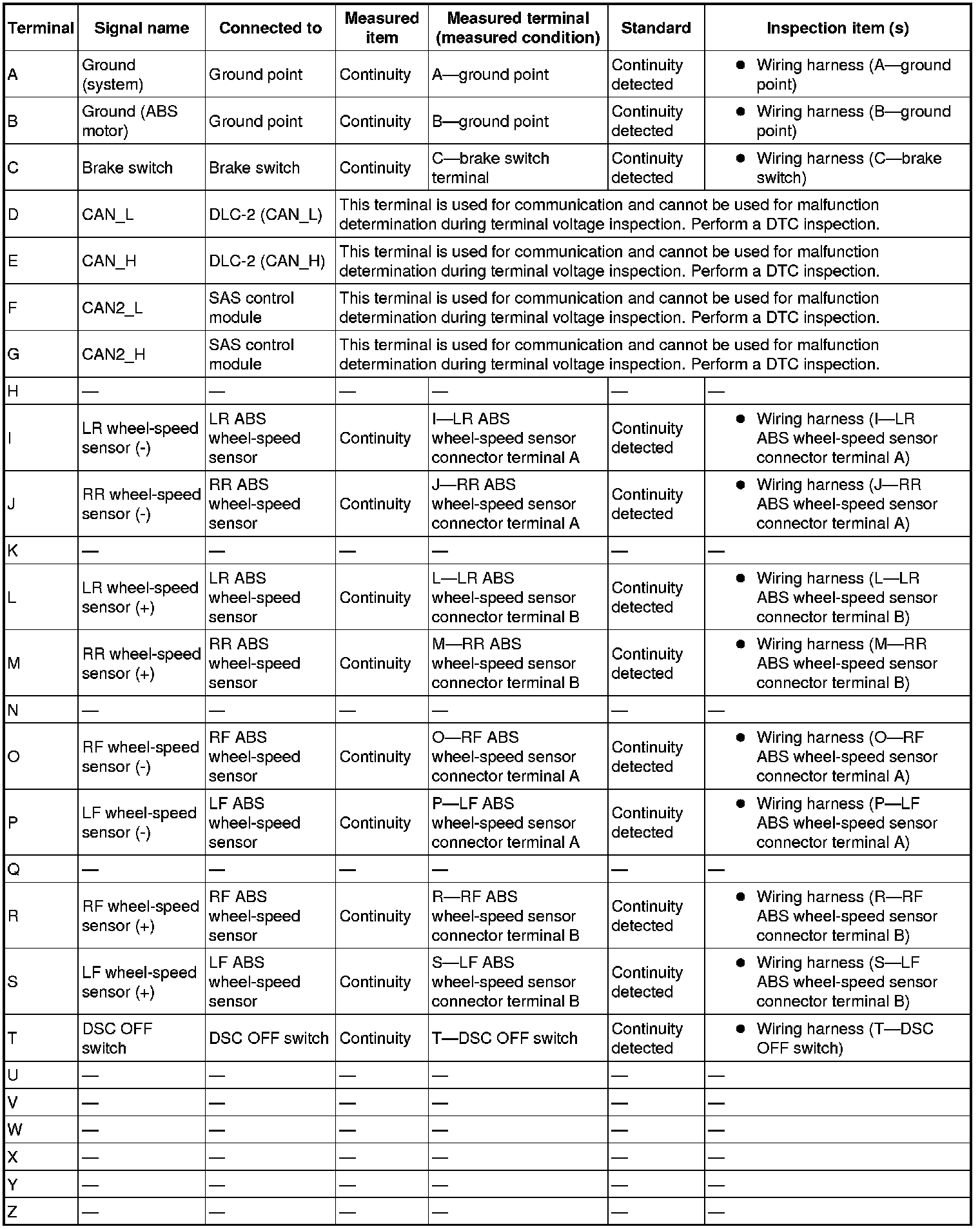

Terminal Voltage (Reference)
