Programming and Relearning

INSTRUMENTATION/DRIVER INFO. PERSONALIZATION FEATURES SETTING PROCEDURE

Instrument Cluster

1. Connect the M-MDS (IDS) to the DLC-2.






2. After the vehicle is identified, select the following items from the initialization screen of the IDS.

- Select the "Module Programming".

3. Then, select items from the screen menu in the following order.
1 Select "Programmable Parameters".
2 Select "Warning Lamps / Chimes".

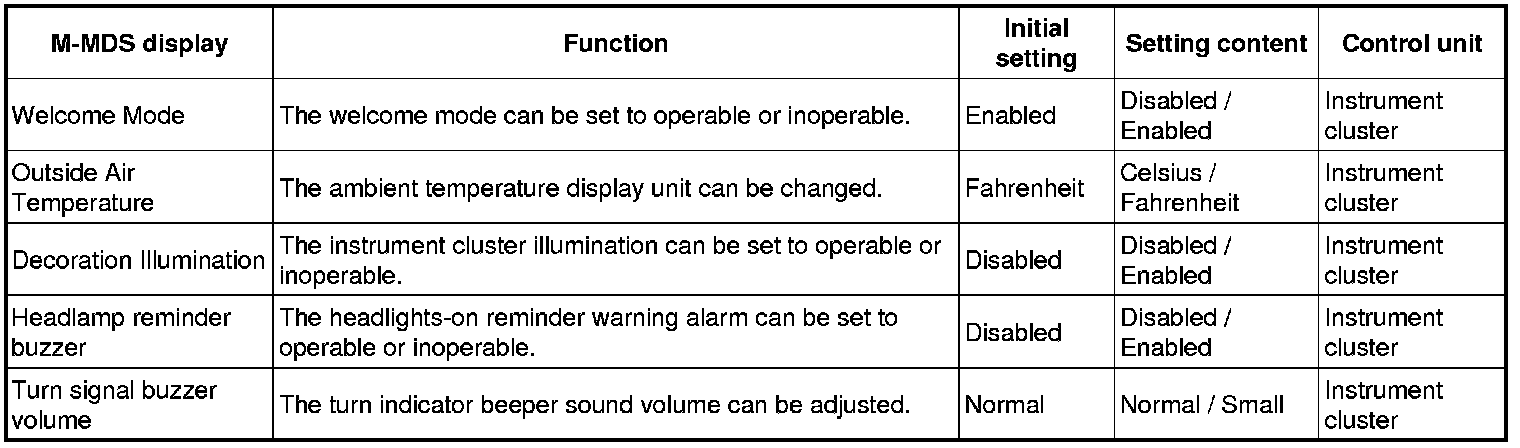

4. Select an item name, and then select option.





CAUTION:

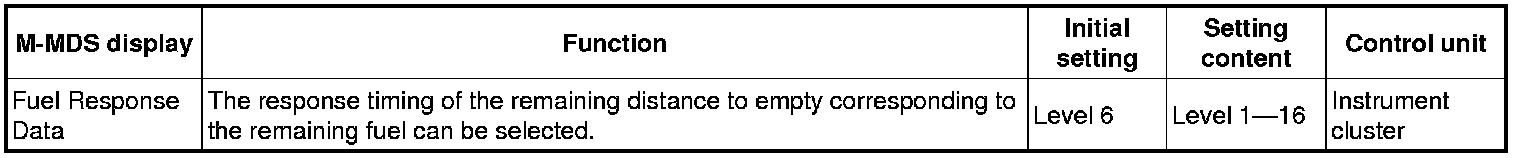

- The M-MDS screen displays the following items, however, do not change the setting. If the setting is changed, a difference occurs between the instrument cluster indication and actual fuel level leading to unexpected fuel shortage.

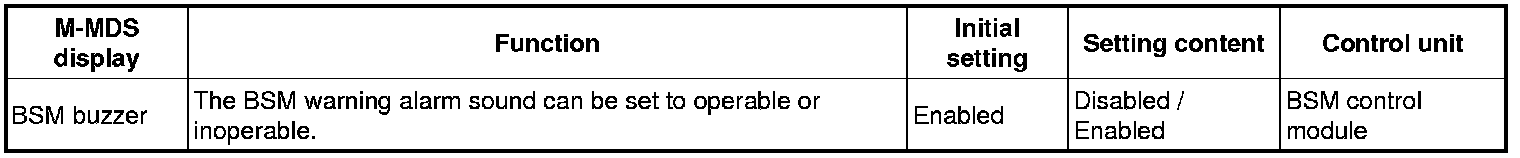

Blind Spot Monitoring (BSM) System

1. Connect the M-MDS (IDS) to the DLC-2.






2. After the vehicle is identified, select the following items from the initialization screen of the IDS.

- Select the "Module Programming".

3. Then, select items from the screen menu in the following order.
1 Select "Programmable Parameters".
2 Select "Personality".

4. Select an item name, and then select option.
