Steering Column Lock: Testing and Inspection

STEERING LOCK UNIT INSPECTION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

1. Remove the column cover. Service and Repair

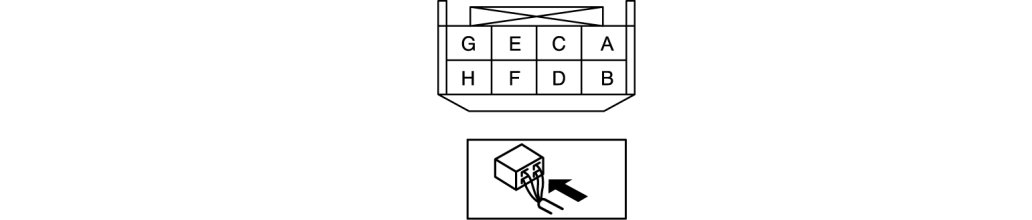

2. Measure each terminal voltage under the measurement condition.

- If the voltage is not as specified in the terminal voltage table, inspect the parts under "Inspection item(s)".

- If the system does not work normally even though the inspection items are normal, replace the steering lock unit.

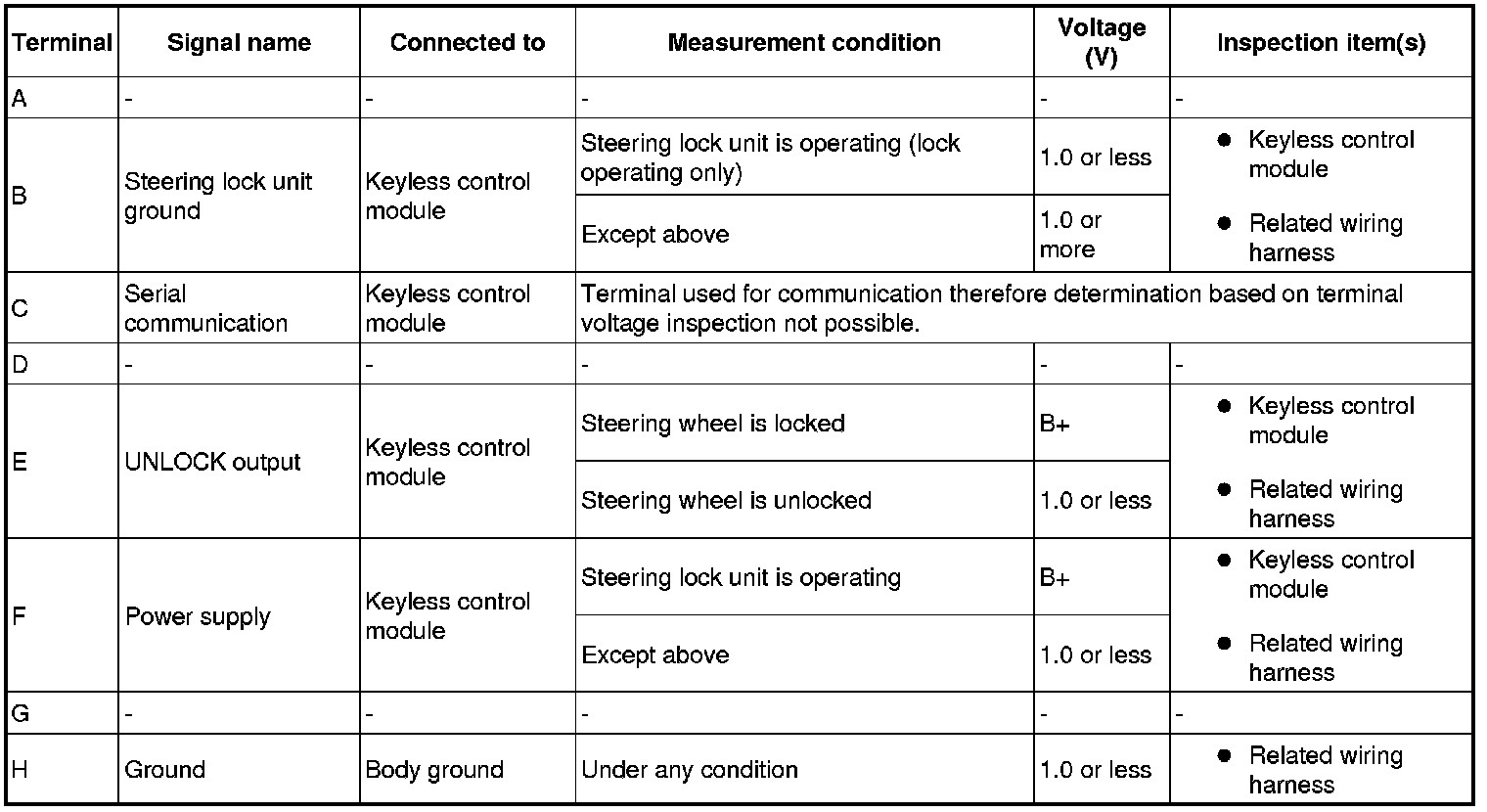

Terminal Voltage (Reference)
