Flywheel Inspection
FLYWHEEL INSPECTION [G66M-R] 1.
Refer to CLUTCH UNIT REMOVAL/INSTALLATION to remove the
flywheel.
Service and Repair 2.

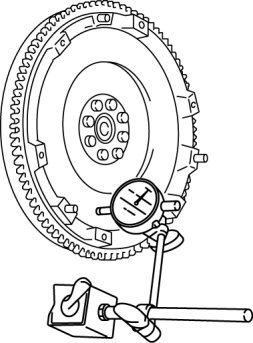

Install a dial gauge on the cylinder block.
3.
Measure the runout of the surface that contacts the
clutch disc using a dial gauge.
-
If it exceeds the maximum specification, replace the
flywheel.
Service and RepairFlywheel maximum runout -
0.1 mm {0.004 in}
