Door Lock Cylinder Switch: Testing and Inspection

DOOR LOCK-LINK SWITCH INSPECTION

Front/rear

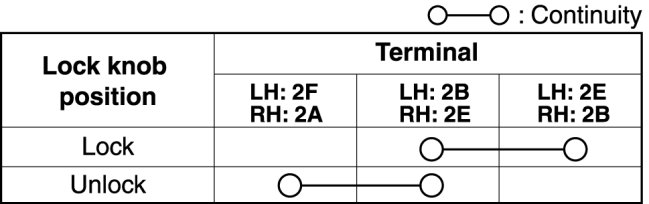

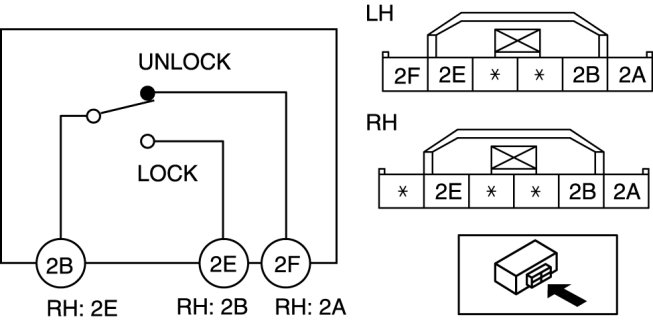

1. Inspect for continuity between the door lock-link switch terminals.






- If not as specified, replace the front/rear door latch and lock actuator.
