Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2011
>>
CX-7 FWD L4-2.3L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>

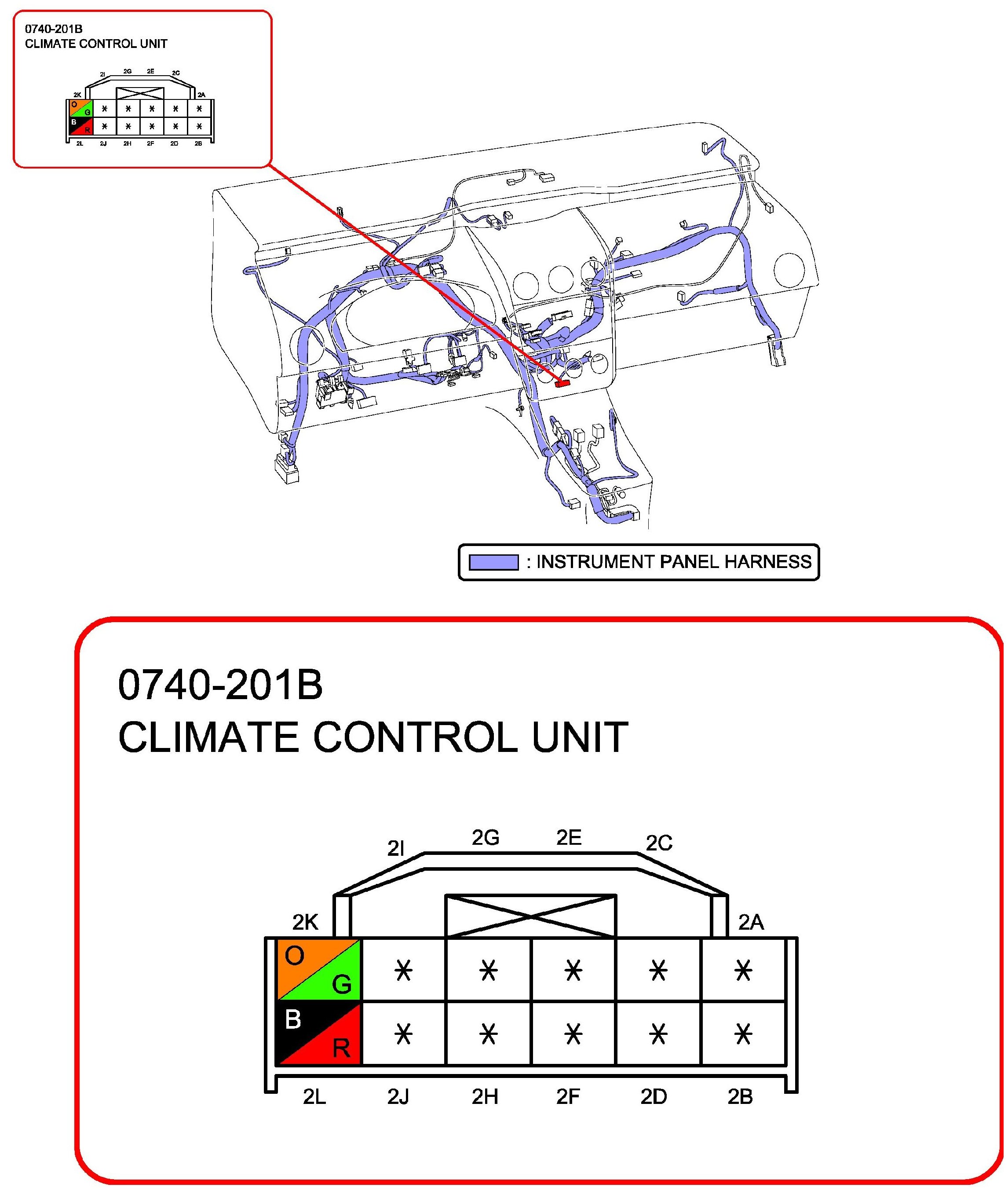

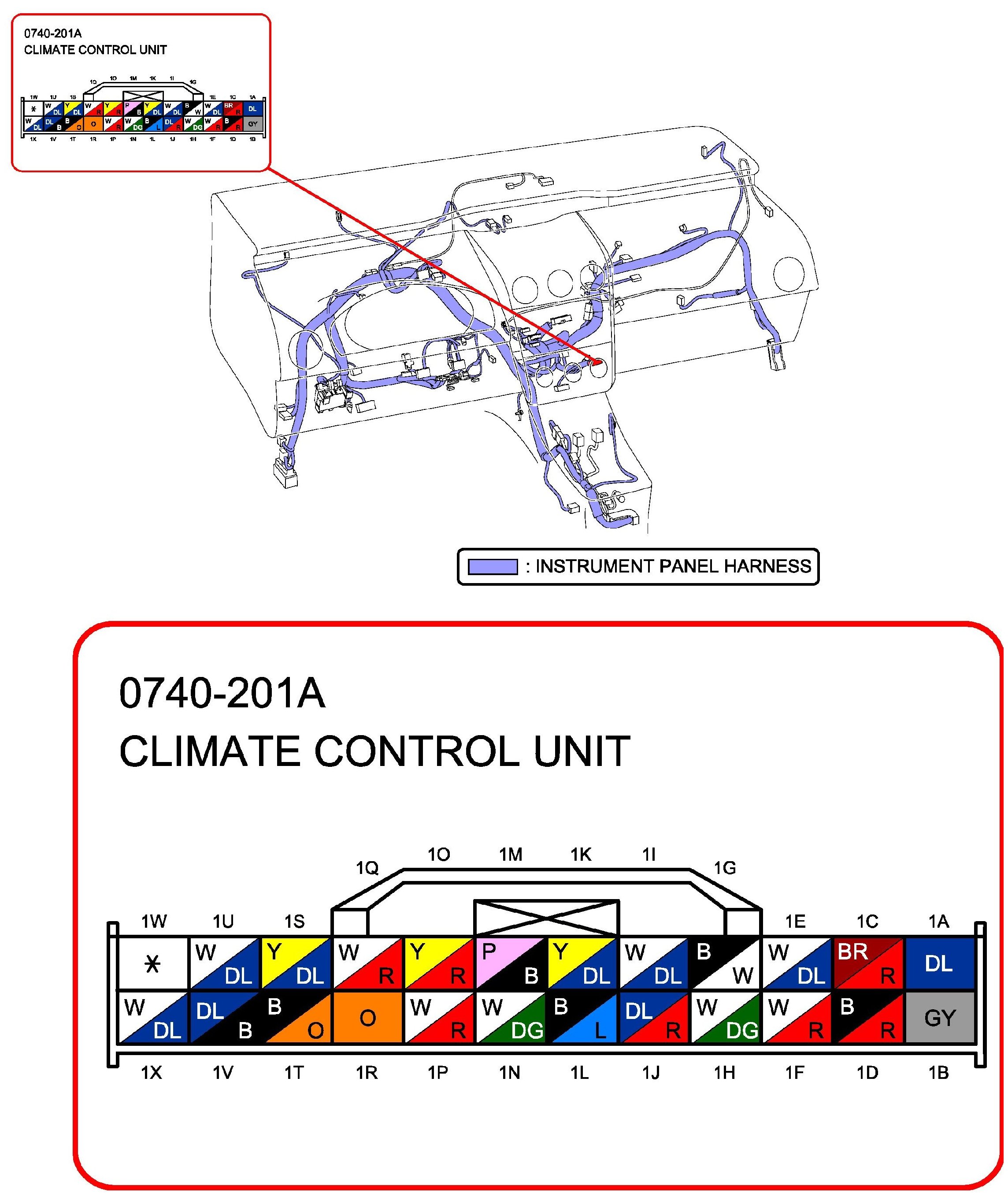

Climate Control Unit
>>
Full-Auto Air Conditioner
Full-Auto Air Conditioner
