Console Removal/Installation




CONSOLE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the console panel. Console Panel Removal/Installation

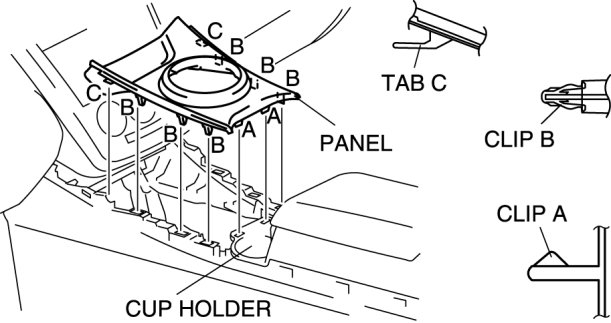

3. Pull the panel upward and detach clips A, B and tabs C.






4. Disconnect the accessory socket connector.

5. Disconnect the seat warmer switch connectors. (vehicles with seat warmer system)

6. Remove the panel.

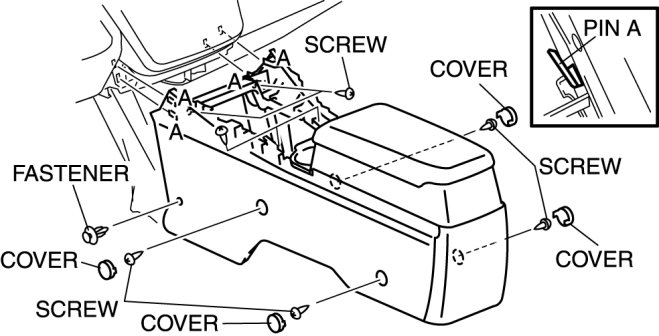

7. Remove the covers.






8. Remove the fasteners and screws.

9. Remove the pins A.

10. Remove the console.

11. Install in the reverse order of removal.
