Outer Mirror Glass Removal




OUTER MIRROR GLASS REMOVAL

1. Disconnect the negative battery cable.

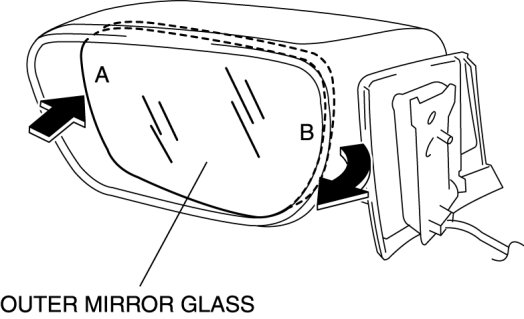

2. Press area A of the mirror glass so that area B moves outward.

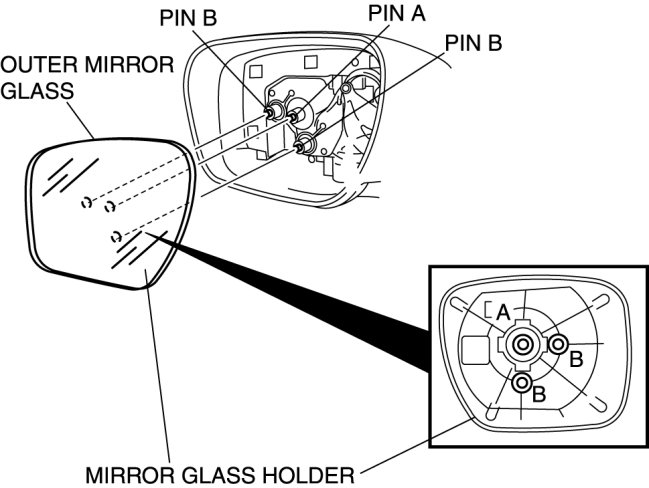

3. Detach pin A while lifting up the inside of the mirror glass holder.






4. Pull the mirror glass holder and remove pins B.

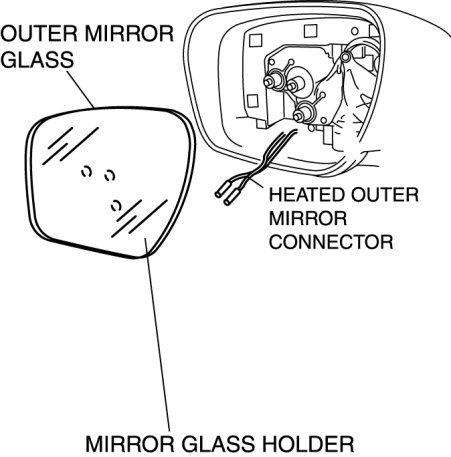

5. Disconnect the heated outer mirror connectors. (vehicles with heated outer mirrors)

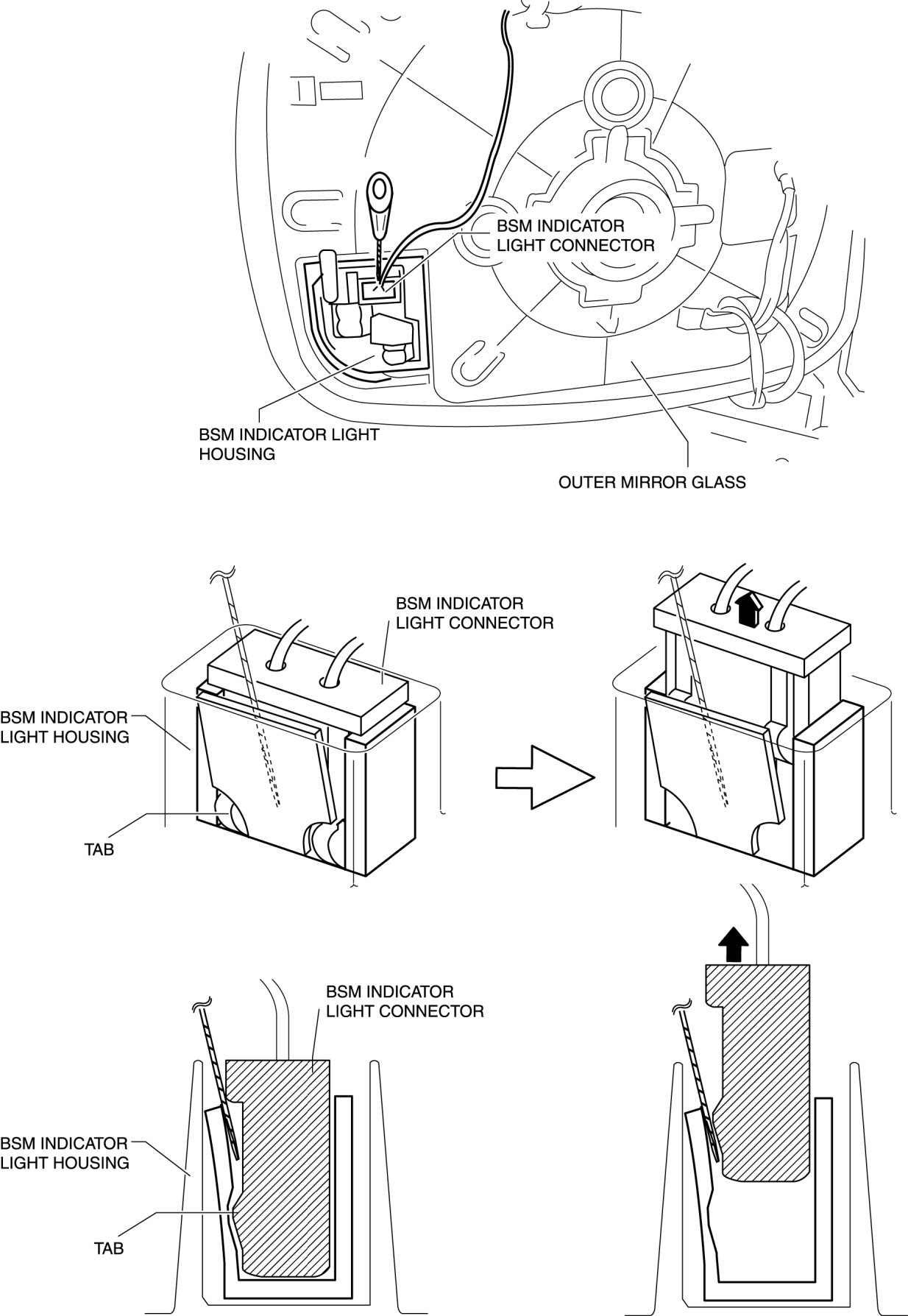

6. Insert a tape-wrapped flathead screwdriver to the position shown in the figure, remove the connector. (Vehicles with BSM)

CAUTION:
- The connector can be easily deformed, therefore do not apply excessive force.





7. Remove the mirror glass holder and the outer mirror glass as a single unit.
