Air Fuel Ratio (A/F) Sensor Removal/Installation

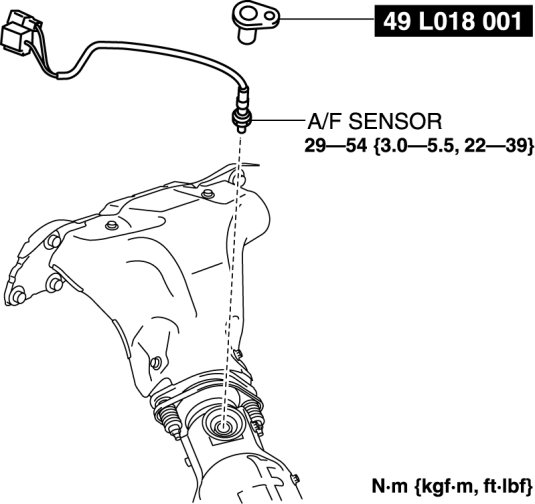

AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [L5]

WARNING:
- A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.

1. Disconnect the negative battery cable.

2. Disconnect the A/F sensor connector.

3. Remove the A/F sensor using the SST.

4. Install in the reverse order of removal.
