Coil Resistance Inspection

Coil resistance inspection

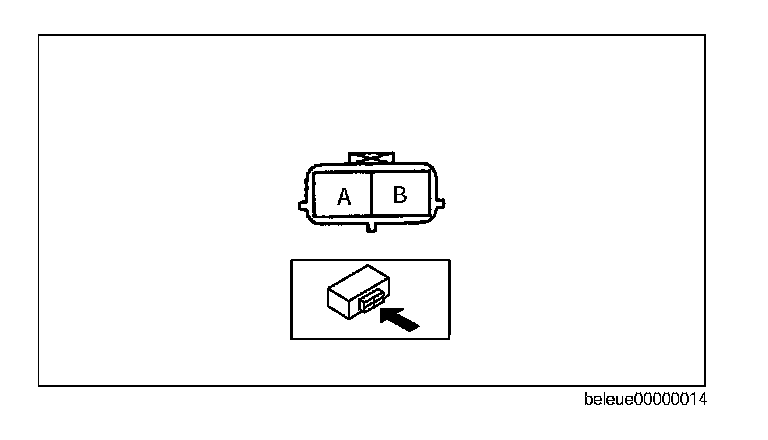

1. Measure the resistance between terminals A and B using an ohmmeter.
^ If not as specified, replace the OCV.

OCV coil resistance
6.9-7.9 ohms [20°C (68°F)]

2. Connect the OCV connector.
