Keyless Entry System




KEYLESS RECEIVER INSPECTION [KEYLESS ENTRY SYSTEM]

1. Measure the voltage at the auto light/wiper control module terminals as indicated below.

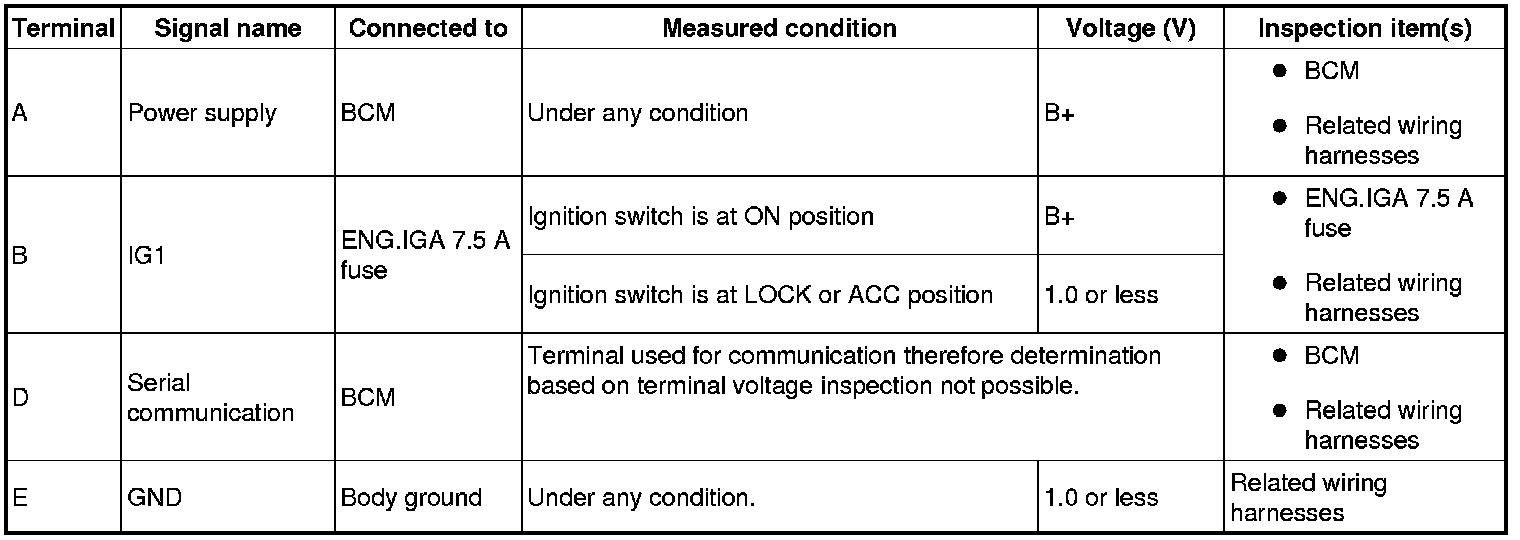

Terminal Voltage Table (Reference)
