Entertainment System Remote Controller: Service and Repair

REMOTE CONTROLLER BATTERY REPLACEMENT

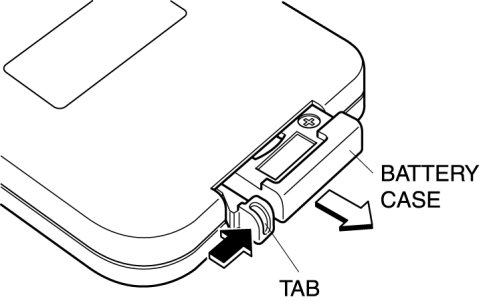

1. Push the tab, and pull the battery case out.

2. Remove the old battery.

3. Insert a new battery (CR2023) with the positive pole (+) facing up.

Used battery
- Lithium battery CR2023

4. Slide the battery case back into the remote controller until the tab clicks into place.
