Condenser Removal/Installation




CONDENSER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Trunk box

b. Seat side box Seat Side Box Removal/Installation

c. Trunk end trim Trunk End Trim Removal/Installation

d. Third-row seat Rear - Third-Row Seat Removal/Installation

e. Third-row seat belt lower anchor installation bolt Third-Row Seat Belt Removal/Installation

f. Rear scuff plate inner Rear Scuff Plate Removal/Installation

g. Trunk side trim

h. Roof side trim Roof Side Trim Removal/Installation

i. Third-row seat belt upper anchor installation bolt Third-Row Seat Belt Removal/Installation

j. D-pillar trim D-Pillar Trim Removal/Installation

3. Slightly bend back the headliner.

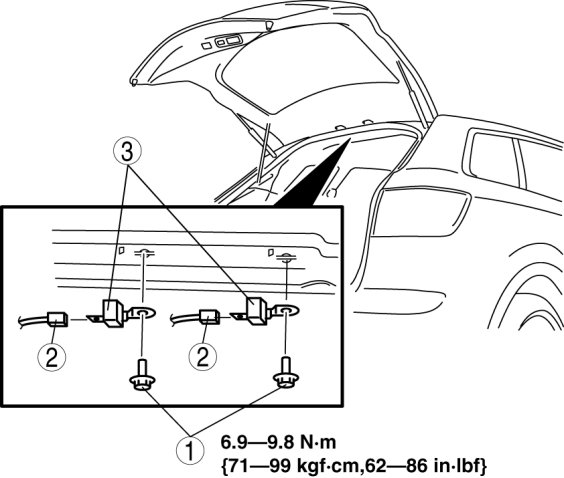

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.
