Overhaul

FRONT BUMPER DISASSEMBLY/ASSEMBLY

1. Remove the front fog light. (Vehicles with front fog lights) Service and Repair

2. Remove the radiator grille. Service and Repair

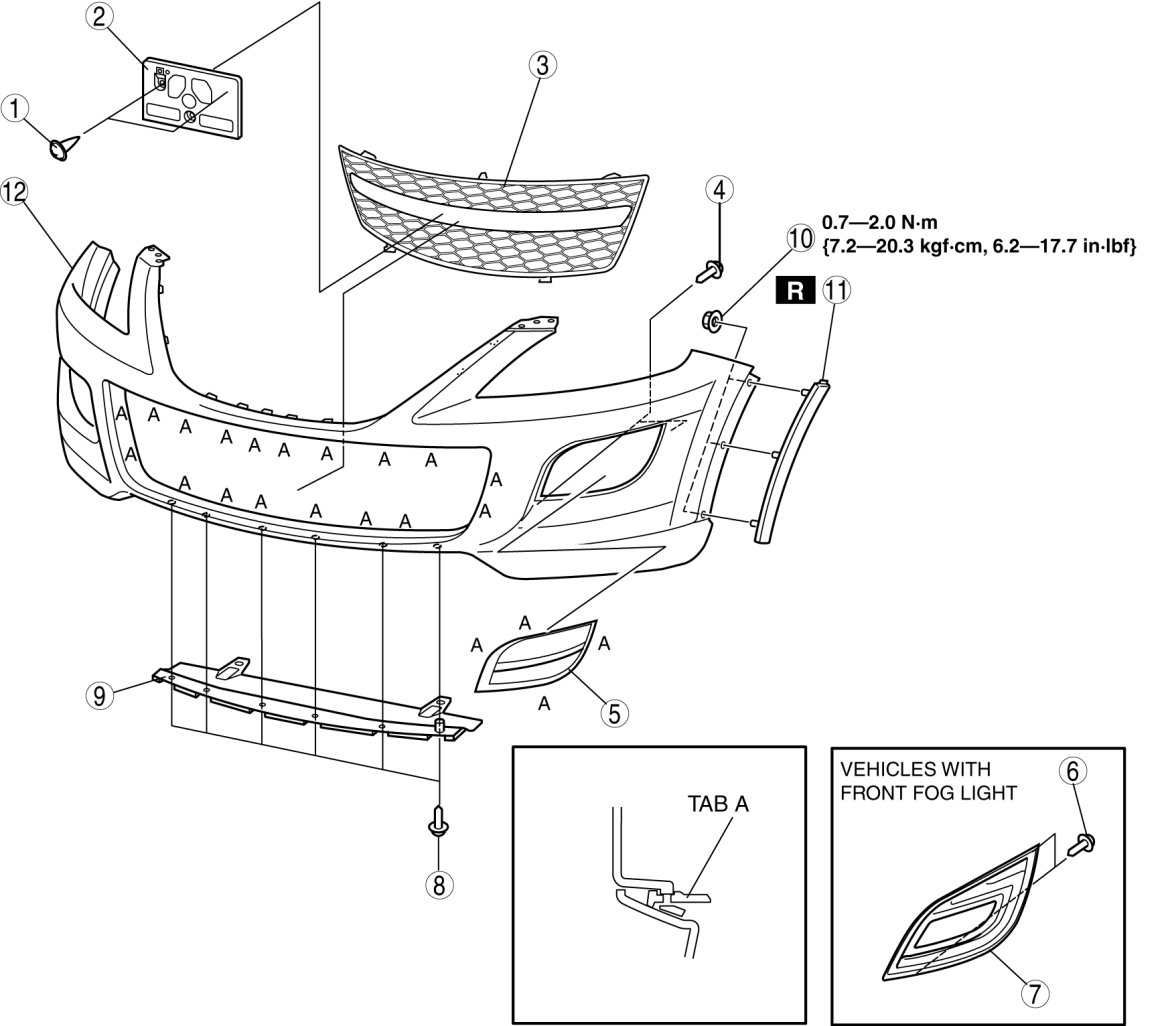

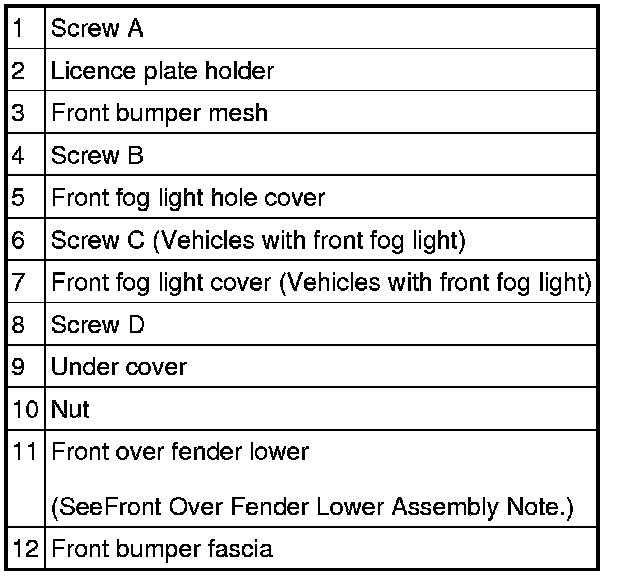

3. Disassemble in the order indicated in the table.

4. Assemble in the reverse order of disassembly.

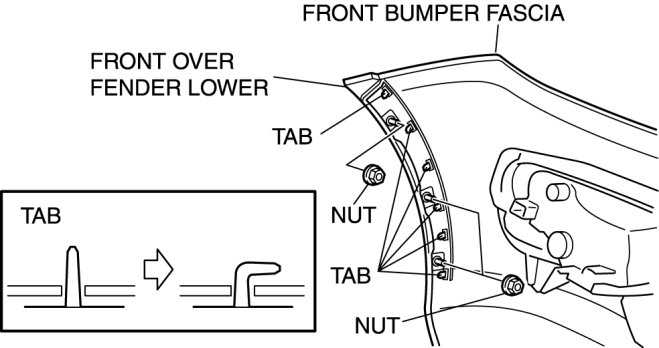

Front Over Fender Lower Assembly Note

1. Attach the front over fender lower to the front bumper fascia with nuts.

2. Use a soldering copper and thermally deform the tab in order to fasten the stiffening rib.
