Wiper Bracket

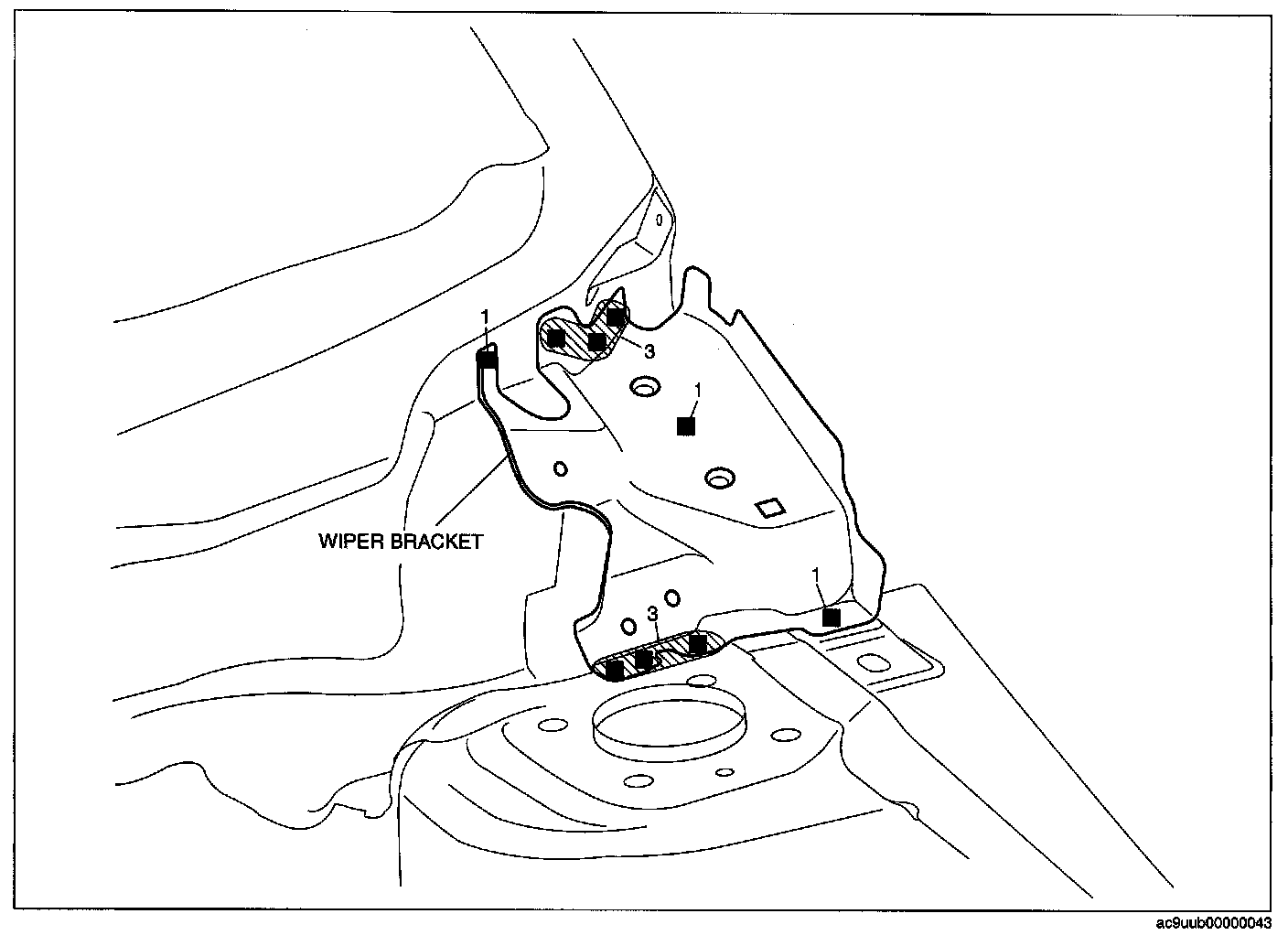

WIPER BRACKET COMPONENT REMOVAL [PANEL REPLACEMENT]

1. Remove the wiper bracket component.

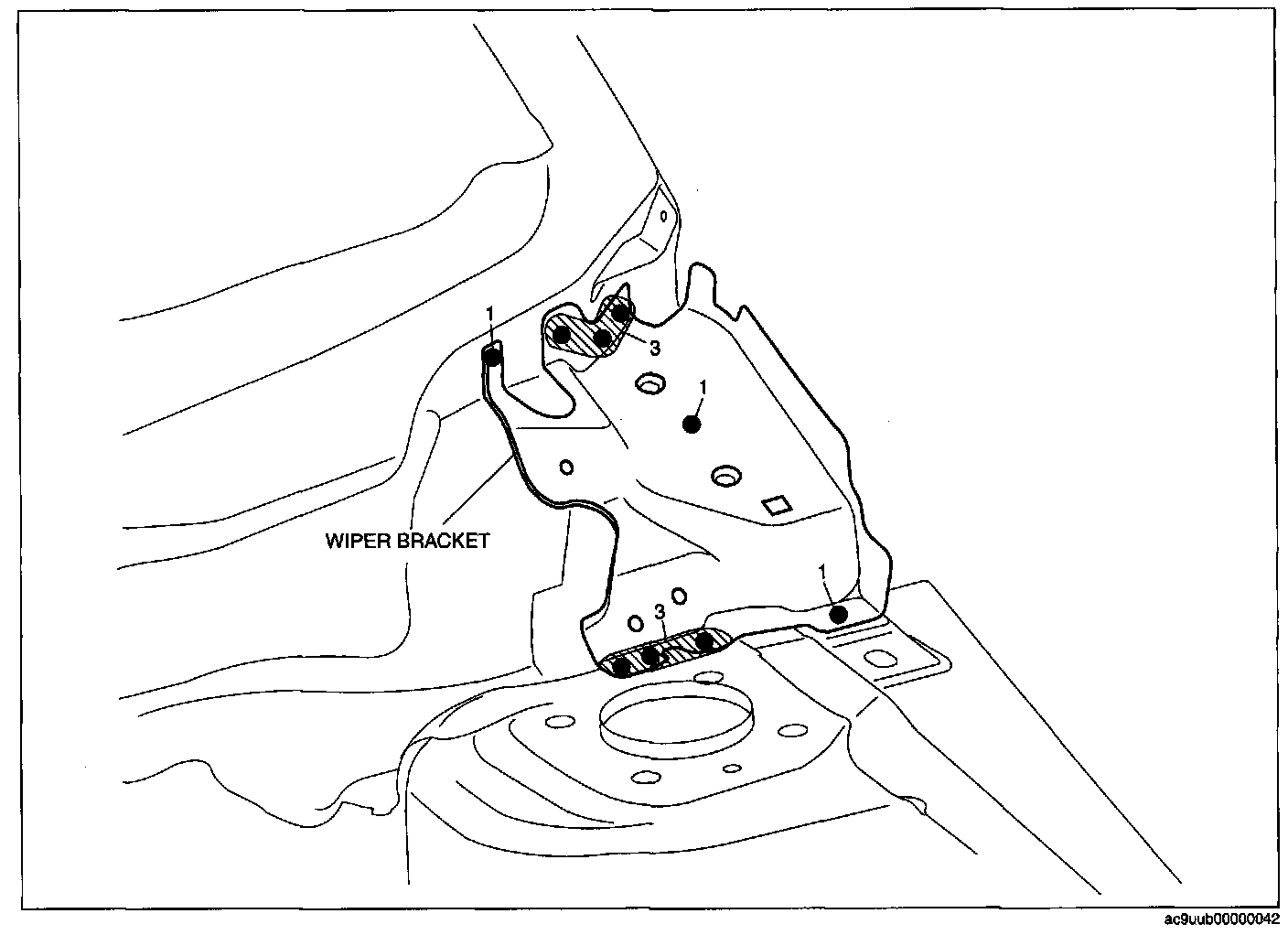

WIPER BRACKET COMPONENT INSTALLATION [PANEL REPLACEMENT]

1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.
2. Drill holes for the plug welding before installing the new parts.

3. After temporarily installing new parts, make sure the related parts fit properly.
