Front Fender: Service and Repair

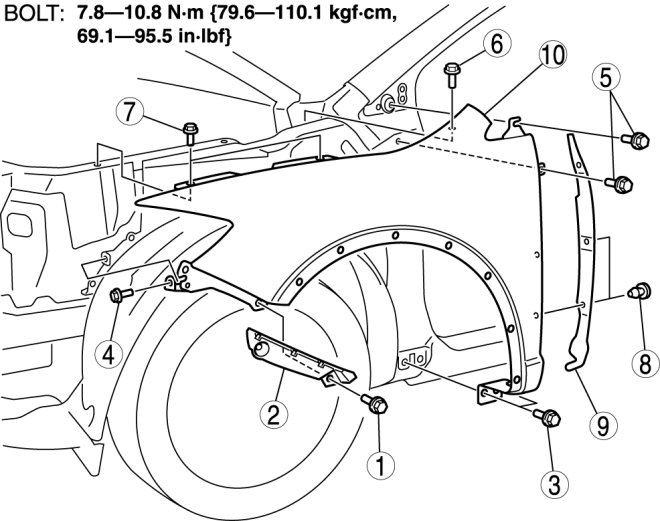

FRONT FENDER PANEL REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Windshield wiper arm and blade (See Windshield Wiper Arm And Blade Removal/Installation)

b. Side cowl grille (See Cowl Grille Removal/Installation)

c. Front over fender (See )

d. Front bumper (See Removal and Replacement)

e. Front combination lights (See Service and Repair)

f. Sail garnish (See Sail Garnish Removal/Installation)

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
