Console Removal/Installation




CONSOLE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Decoration panel Decoration Panel Removal/Installation

b. Front console box mat Front Console Box Mat Removal/Installation

c. Indicator panel Indicator Panel Removal/Installation

d. Front console box Front Console Box Removal/Installation

e. Dashboard under cover Dashboard Under Cover Removal/Installation

f. Side wall Side Wall Removal/Installation

g. Console panel Console Panel Removal/Installation

h. Console cover Console Cover Removal/Installation

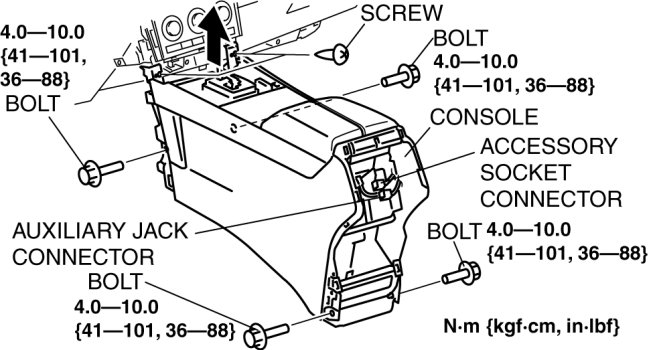

3. Remove the screws.






4. Remove the bolts.

5. Disconnect the accessory socket connector and auxiliary jack connector, and keyless antenna connector.

6. Remove the console in the direction of the arrow.

7. Install in the reverse order of removal.
