Front Console Box Removal/Installation




FRONT CONSOLE BOX REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Decoration panel Decoration Panel Removal/Installation

b. Front console box mat Front Console Box Mat Removal/Installation

c. Indicator panel Indicator Panel Removal/Installation

3. Remove the screw.

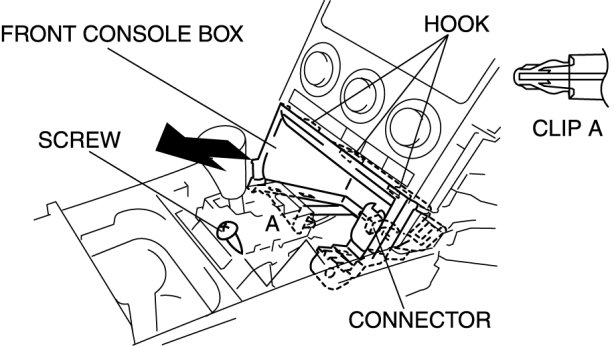

4. Detach clip A and hooks by pulling them in the direction of the arrow.

5. Disconnect the connector.

6. Remove the front console box.

7. Install in the reverse order of removal.
