Removal and Replacement

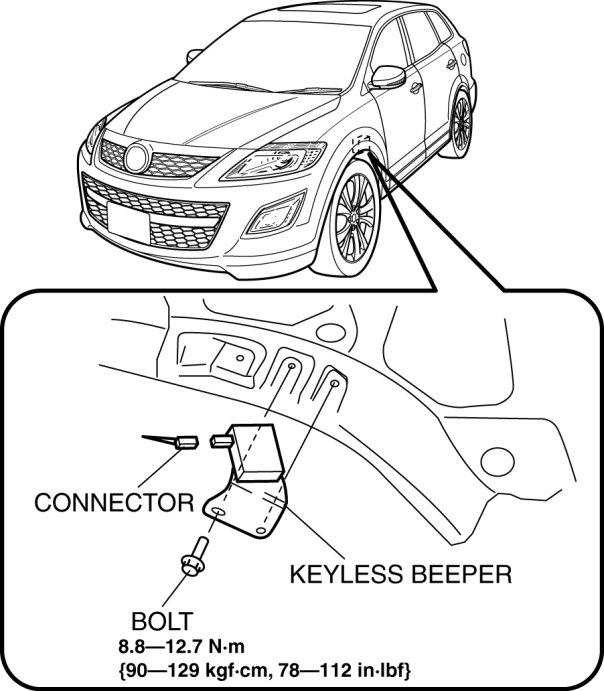

KEYLESS BEEPER REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND START SYSTEM]

1. Disconnect the negative battery cable.

2. Partially peel back the splash shield (LH).

3. Remove the bolt and screw.

4. Disconnect the connector, then remove the keyless beeper.

5. Install in the reverse order of removal.
