Auto-Dimming Mirror Installation

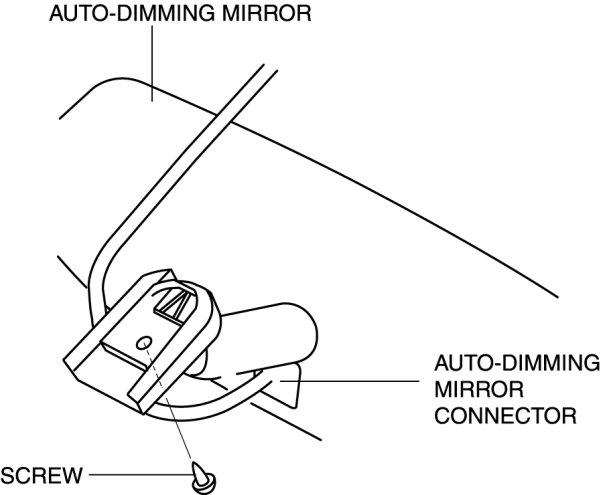

AUTO-DIMMING MIRROR INSTALLATION

1. Install the auto-dimming mirror.






2. Install the screw.

3. Connect the auto-dimming mirror connector.

4. Install the rain sensor. Service and Repair

5. Install the rain sensor cover. Service and Repair

6. Connect the negative battery cable.
