Auto-Dimming Mirror Inspection




AUTO-DIMMING MIRROR INSPECTION

1. Remove the rain sensor. (vehicles with auto light/wiper system) Service and Repair

2. Remove the rain sensor cover. (vehicles without auto light/wiper system) Service and Repair

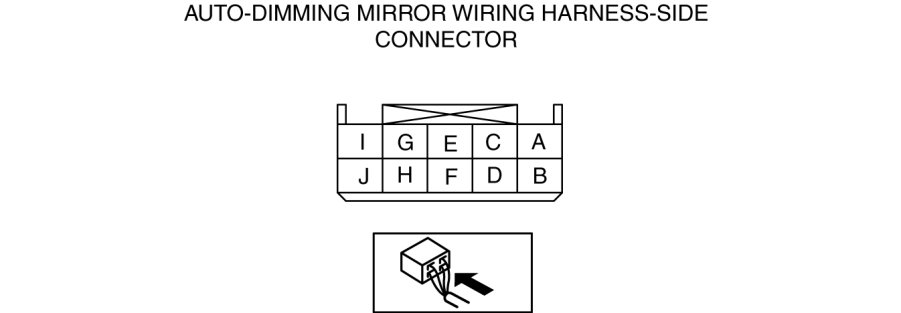

3. Measure the voltage at each terminal.

- If the voltage is not as specified in the Terminal Voltage Table (Reference), inspect the parts under "Inspection item (s)" and related wiring harnesses.

- If the system does not work properly even though the inspection items or related wiring harnesses do not have any malfunction, replace the auto-dimming mirror.

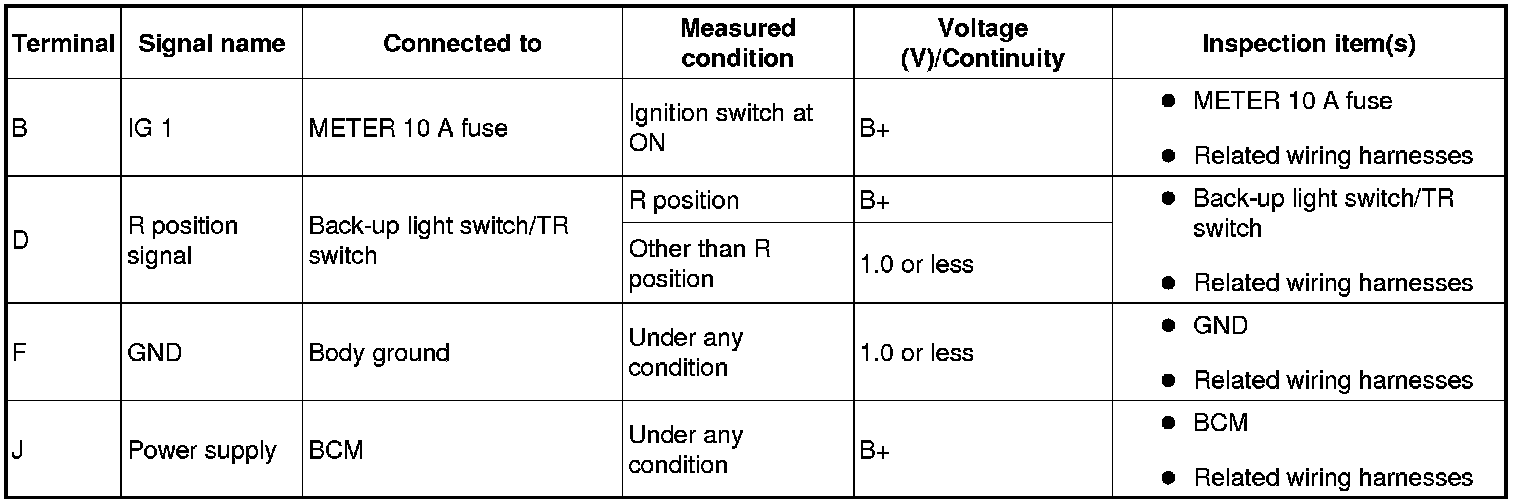

Terminal Voltage Table (Reference)
