Sound Proofing / Insulation: Locations






DAMPING SHEET REPLACEMENT [WATER-PROOF AND RUST PREVENTIVE]

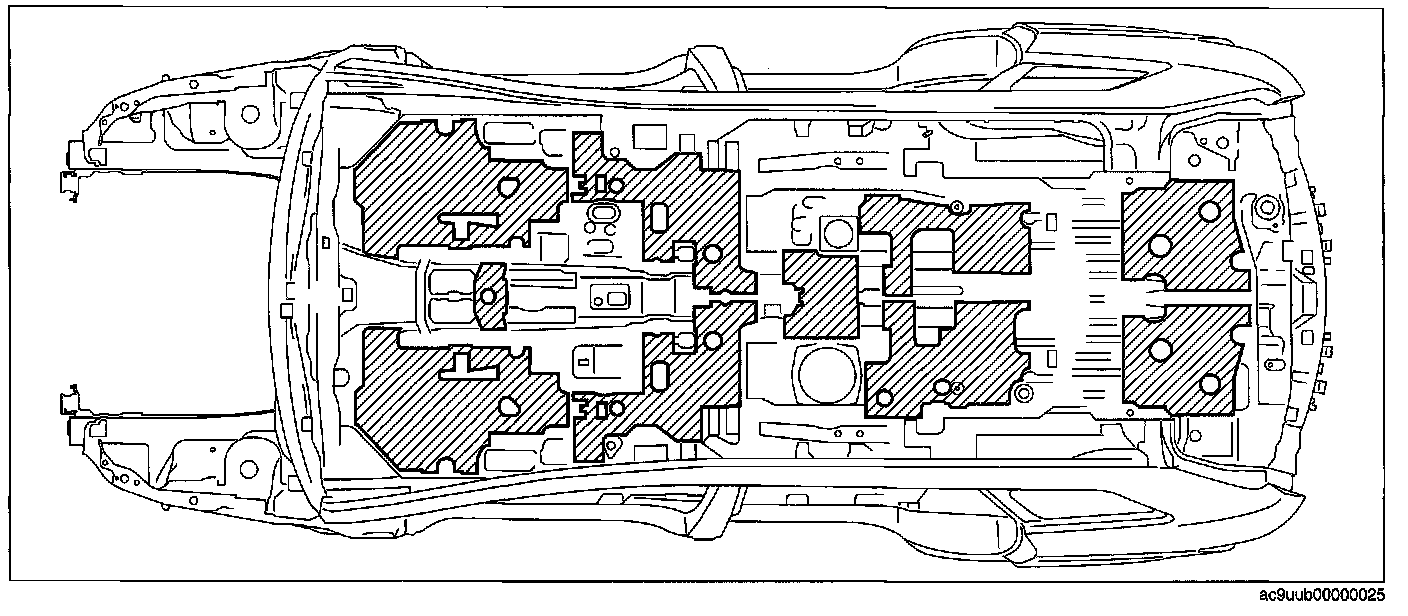

After repairing the body, attach the damping sheet to the location shown in the figure for noise insulation.
