Traction Control Switch: Service and Repair

TCS OFF SWITCH REMOVAL/INSTALLATION

1. Remove the dashboard under cover. Dashboard Removal/Installation

2. Remove the hood release lever. Service and Repair

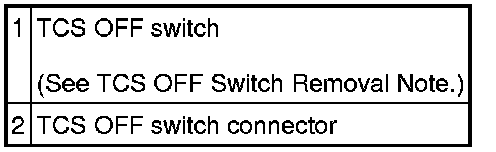

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

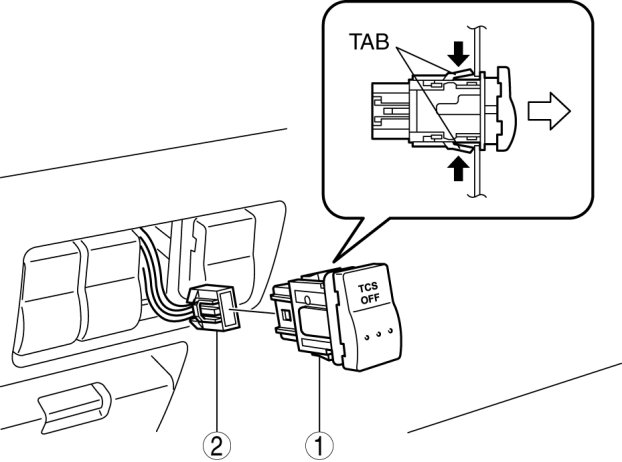

TCS OFF Switch Removal Note

1. Access the TCS OFF switch from behind of the dashboard, and squeeze the tabs of the switch.

2. Remove the TCS OFF switch from the dashboard.
