Brake Fluid Level Sensor/Switch: Testing and Inspection

BRAKE FLUID LEVEL SENSOR INSPECTION

1. Disconnect the brake fluid level sensor connector from the master cylinder.

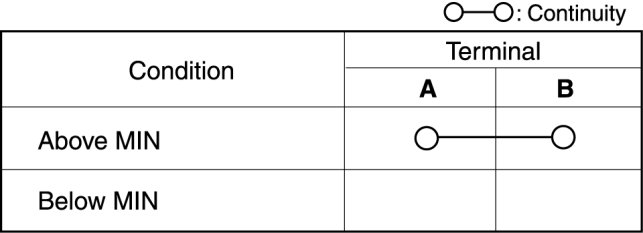

2. Inspect for continuity according to fluid level between the brake fluid level sensor terminals.

- If not as indicated in the table, replace the No.1 reserve tank. Service and Repair
