Parking Brake System: Adjustments

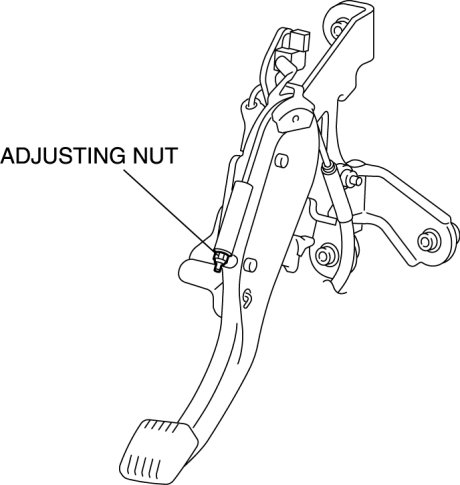

PARKING BRAKE ADJUSTMENT 1.
Turn the adjusting nut at the front of the parking cable.
2.
After adjustment, inspect the following points:
a.
Turn the ignition switch on, depress the parking brake pedal one notch, and verify that the brake system warning light illuminates.
b.
Verify that the rear brakes do not drag.
