Automatic Transmission/Transaxle

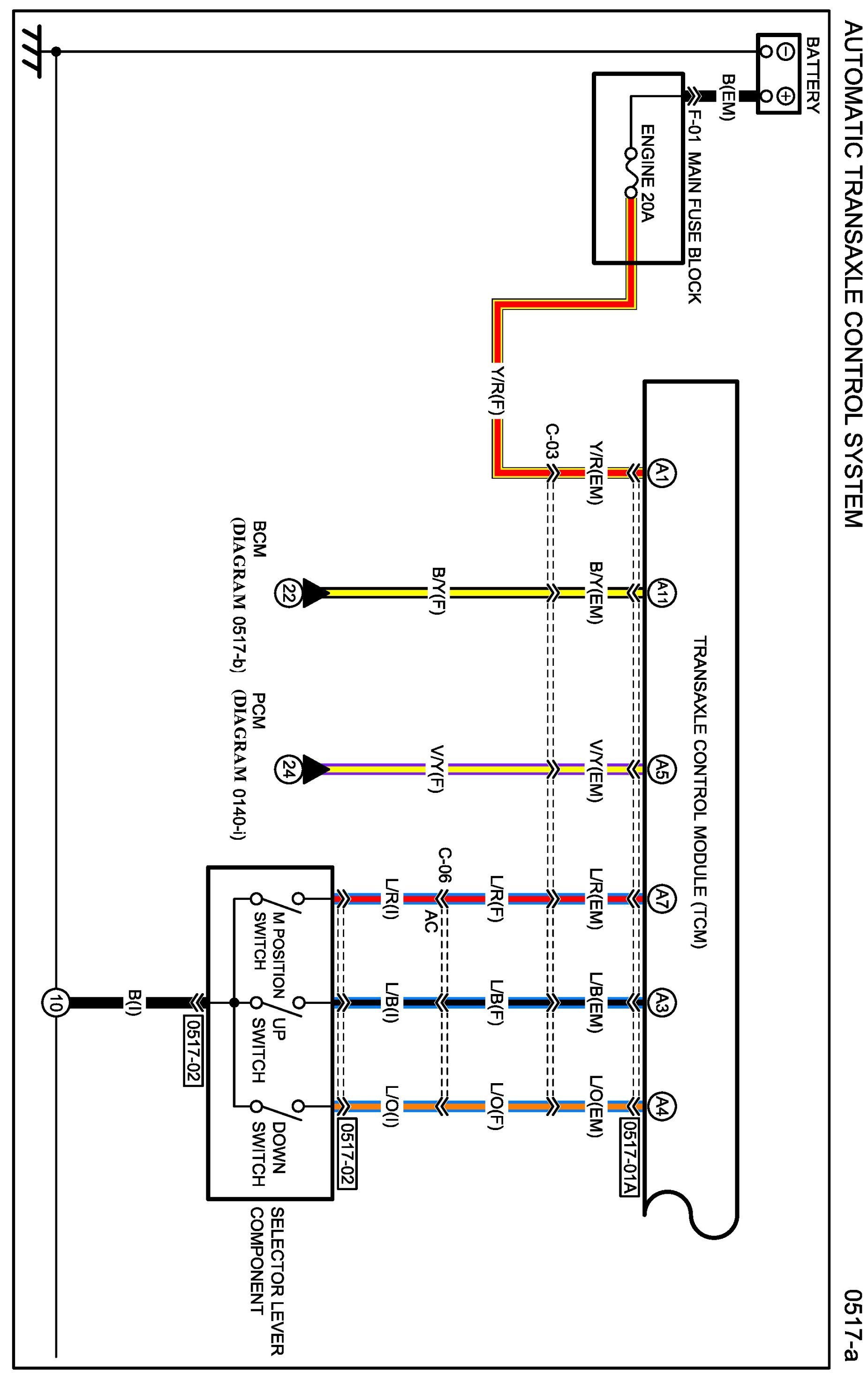

Diagram 0517-a:

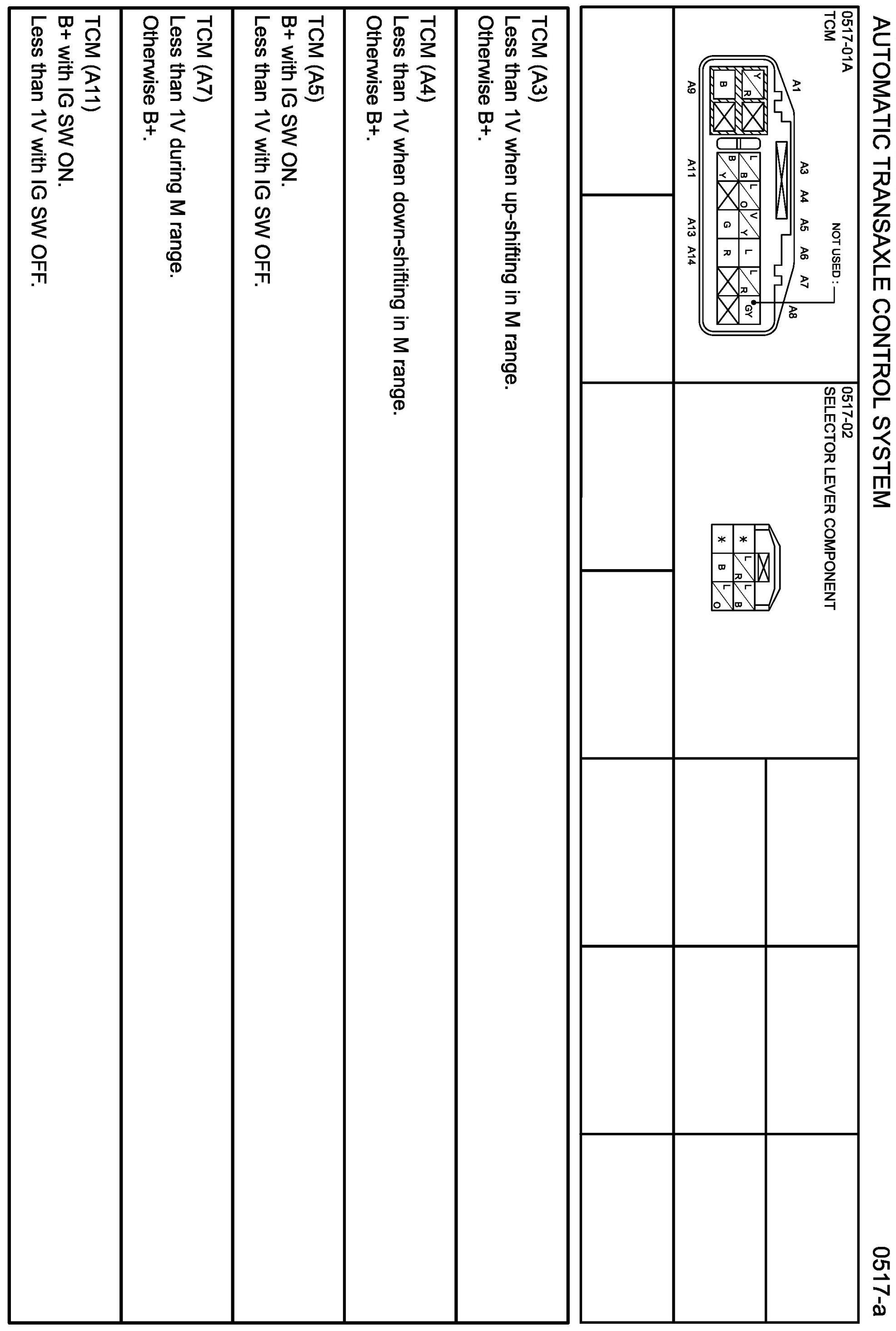

Connectors 0517-a:

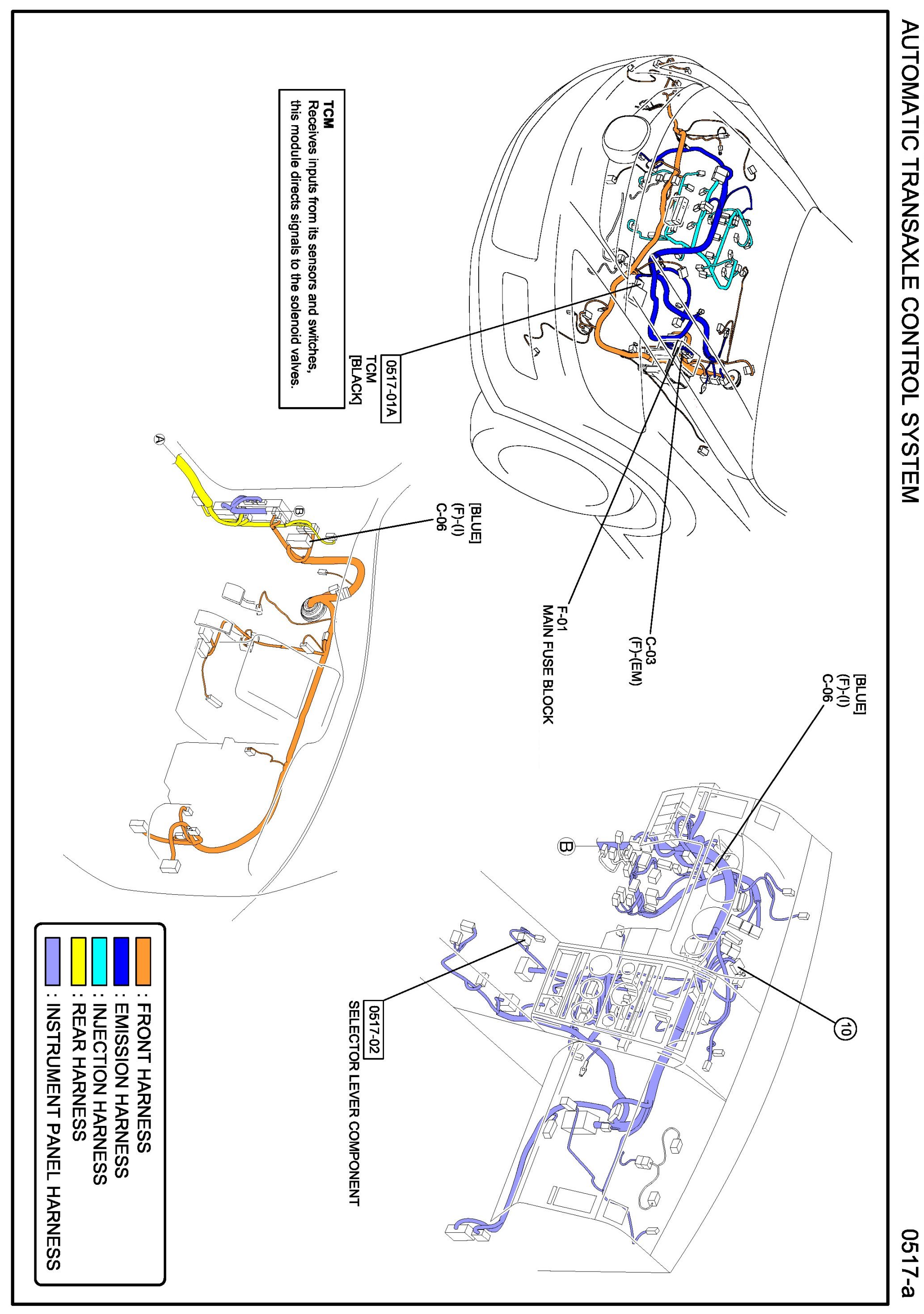

Routing View 0517-a:

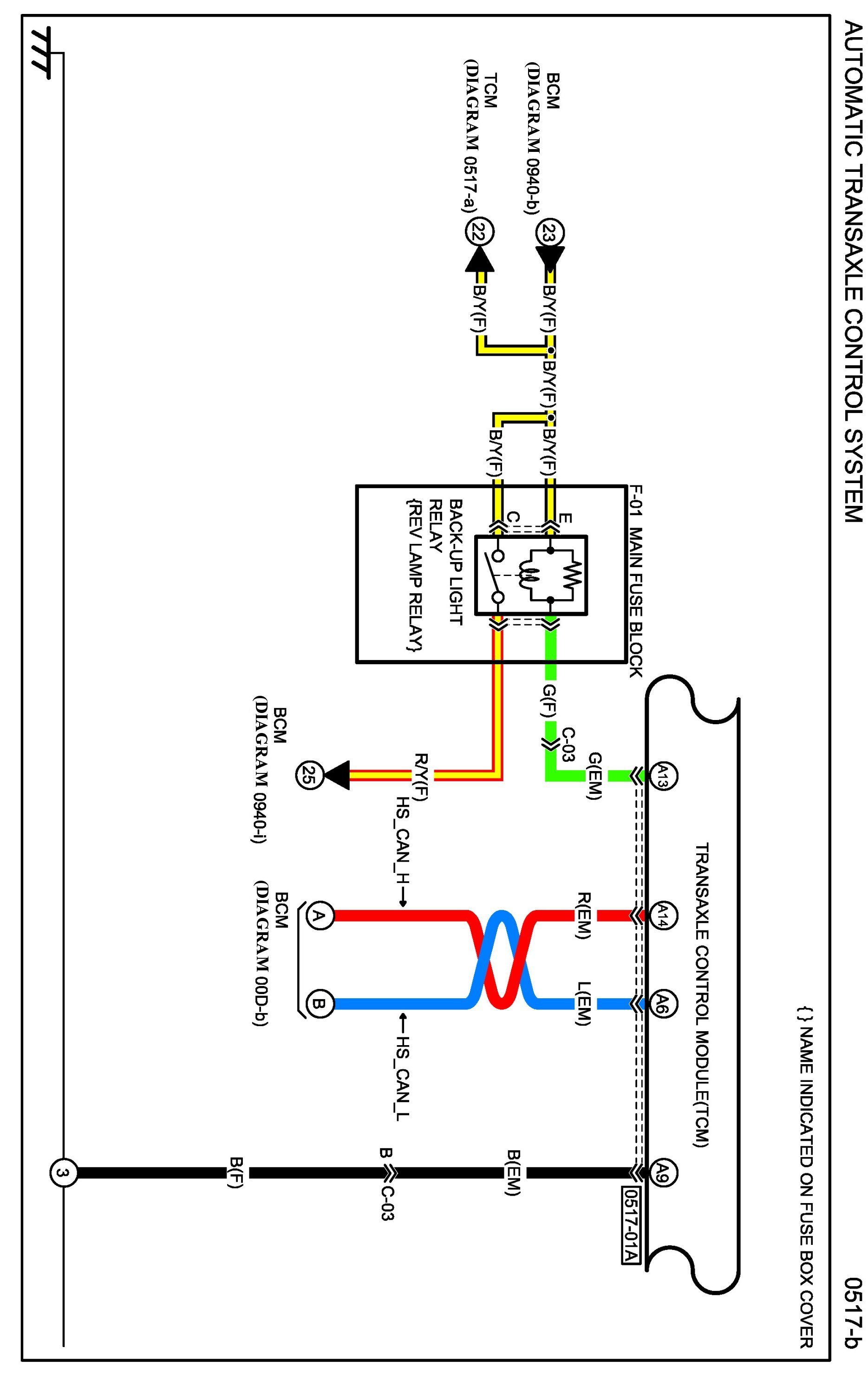

Diagram 0517-b:
Connectors 0517-b:

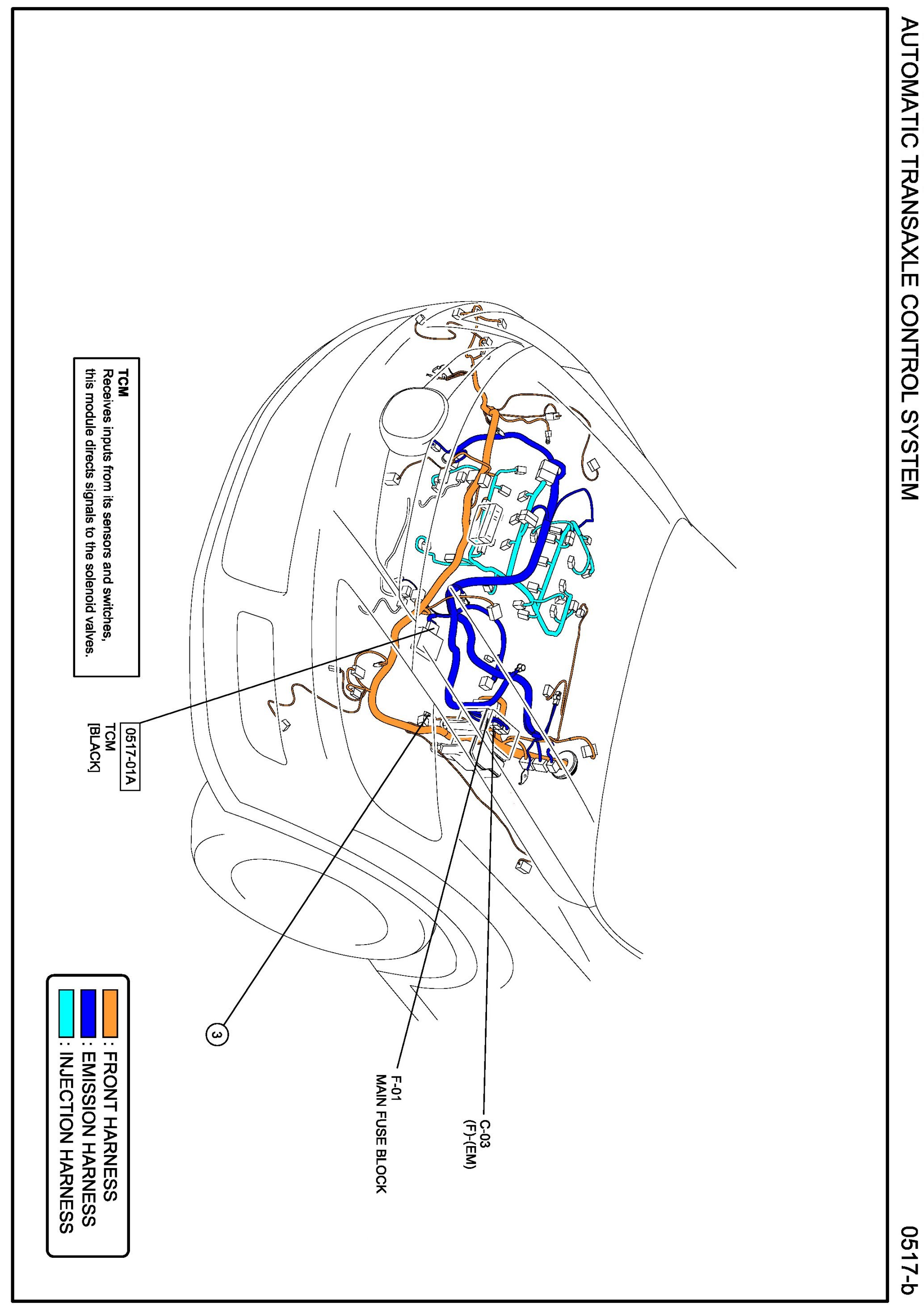

Routing View 0517-b:

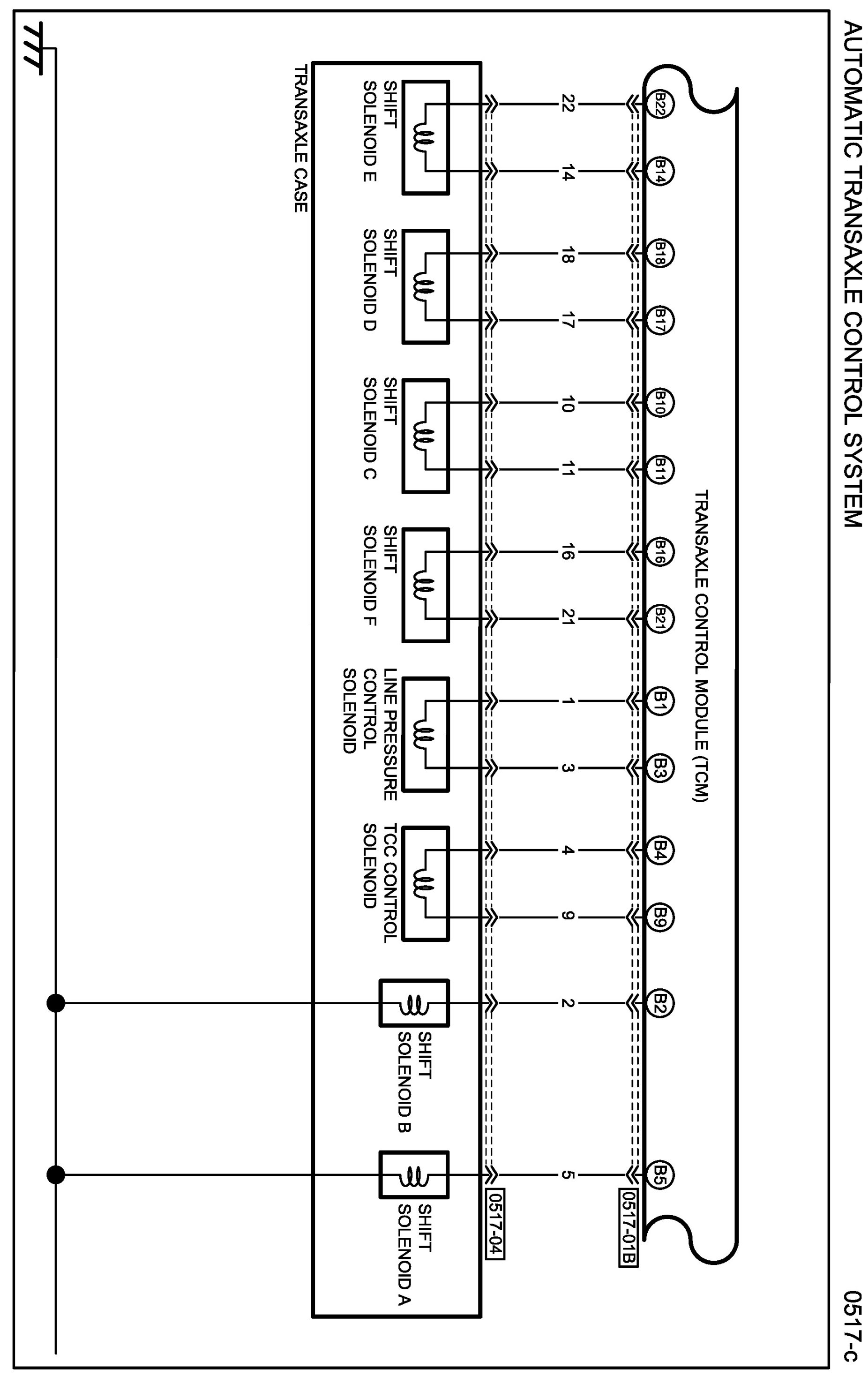

Diagram 0517-c:

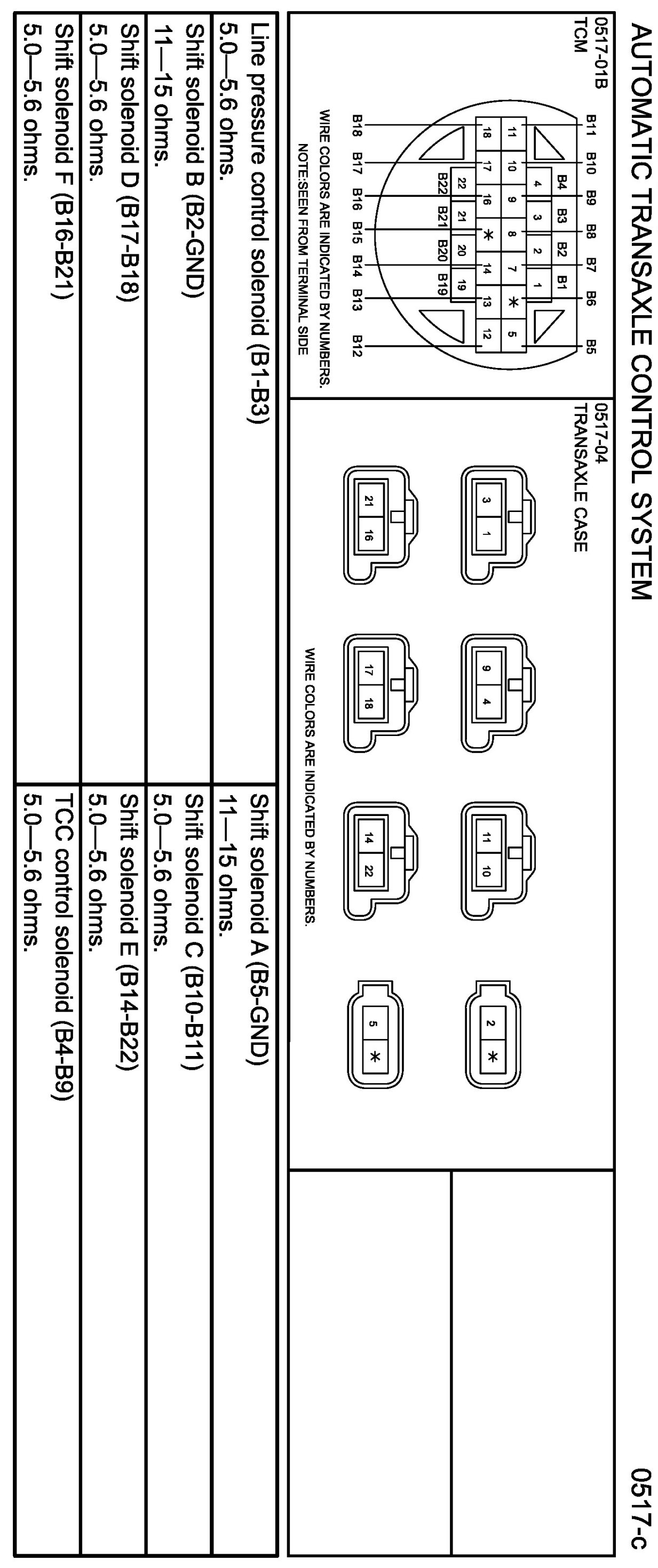

Connectors 0517-c:

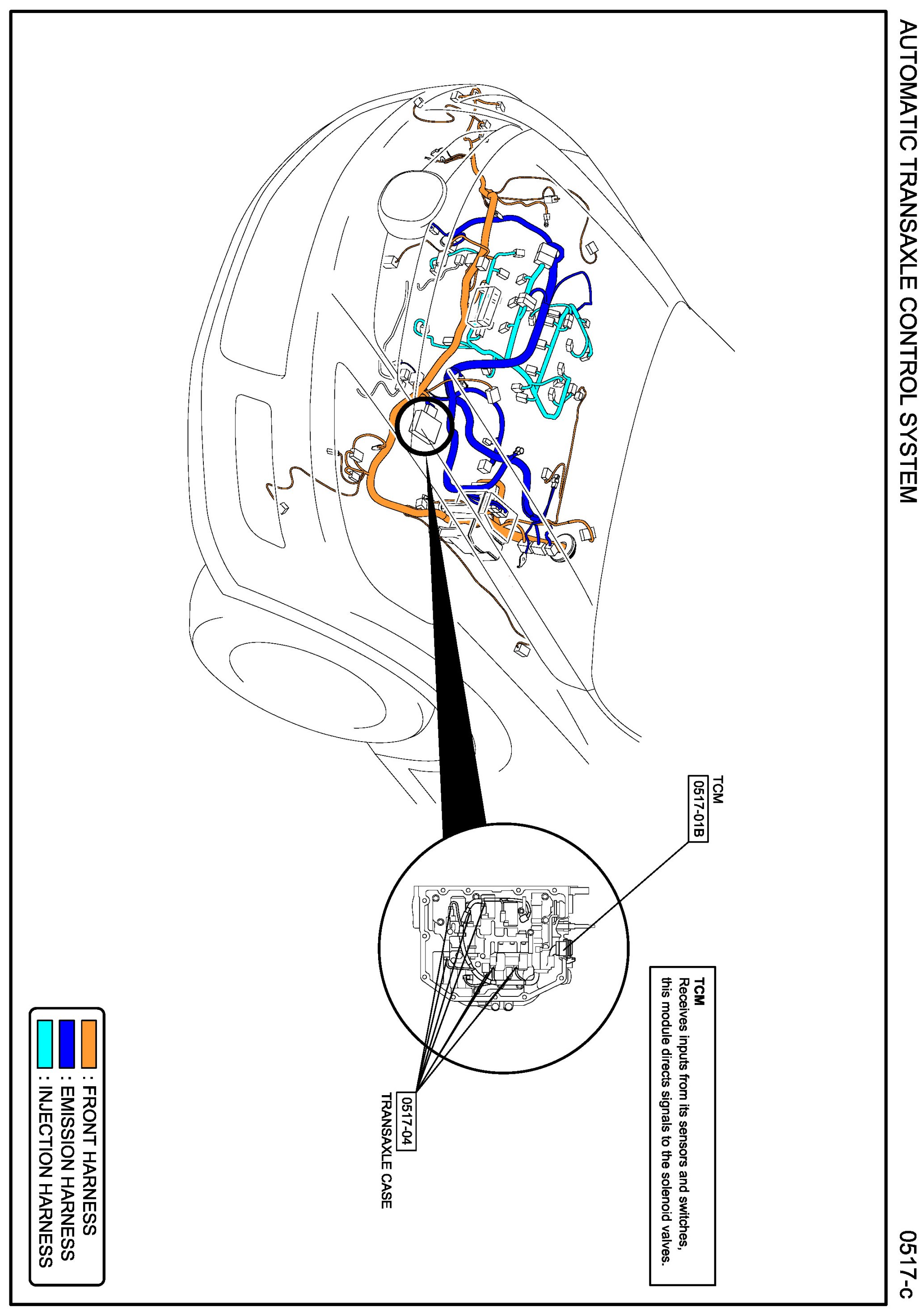

Routing View 0517-c:

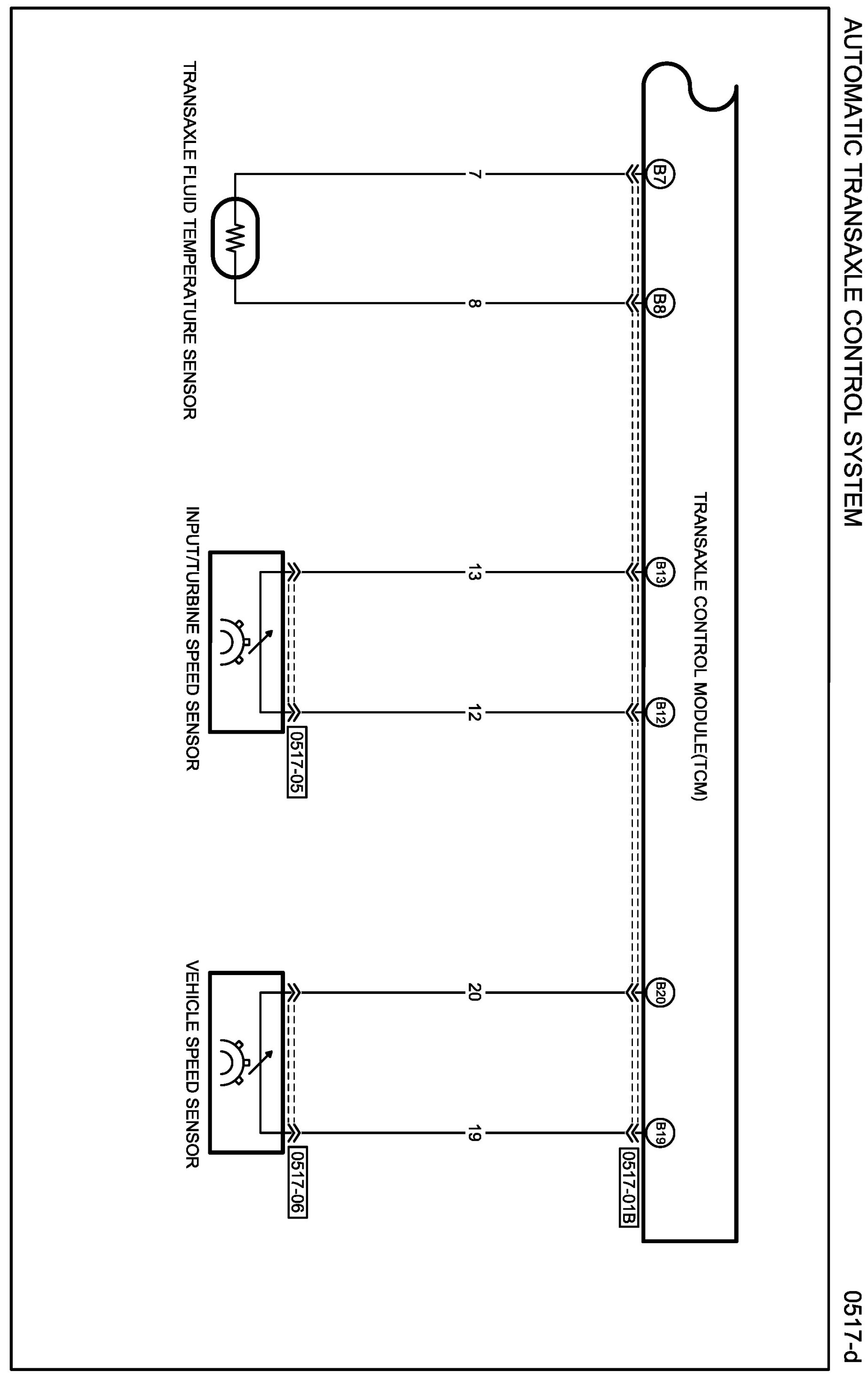

Diagram 0517-d:

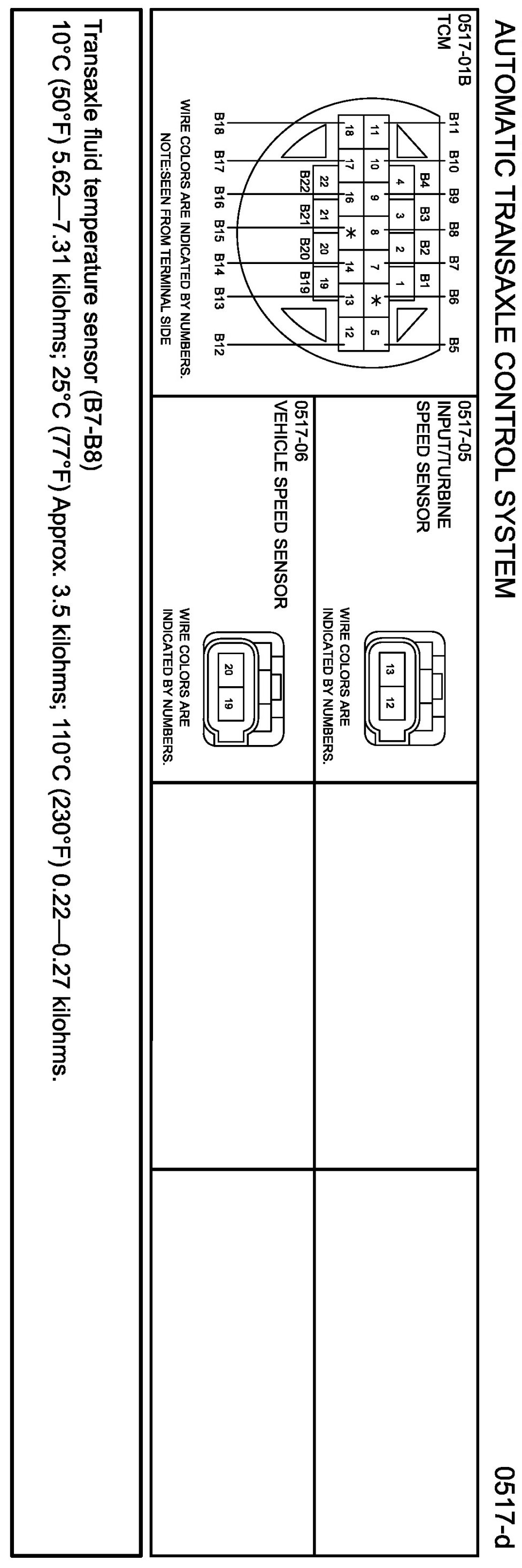

Connectors 0517-d:

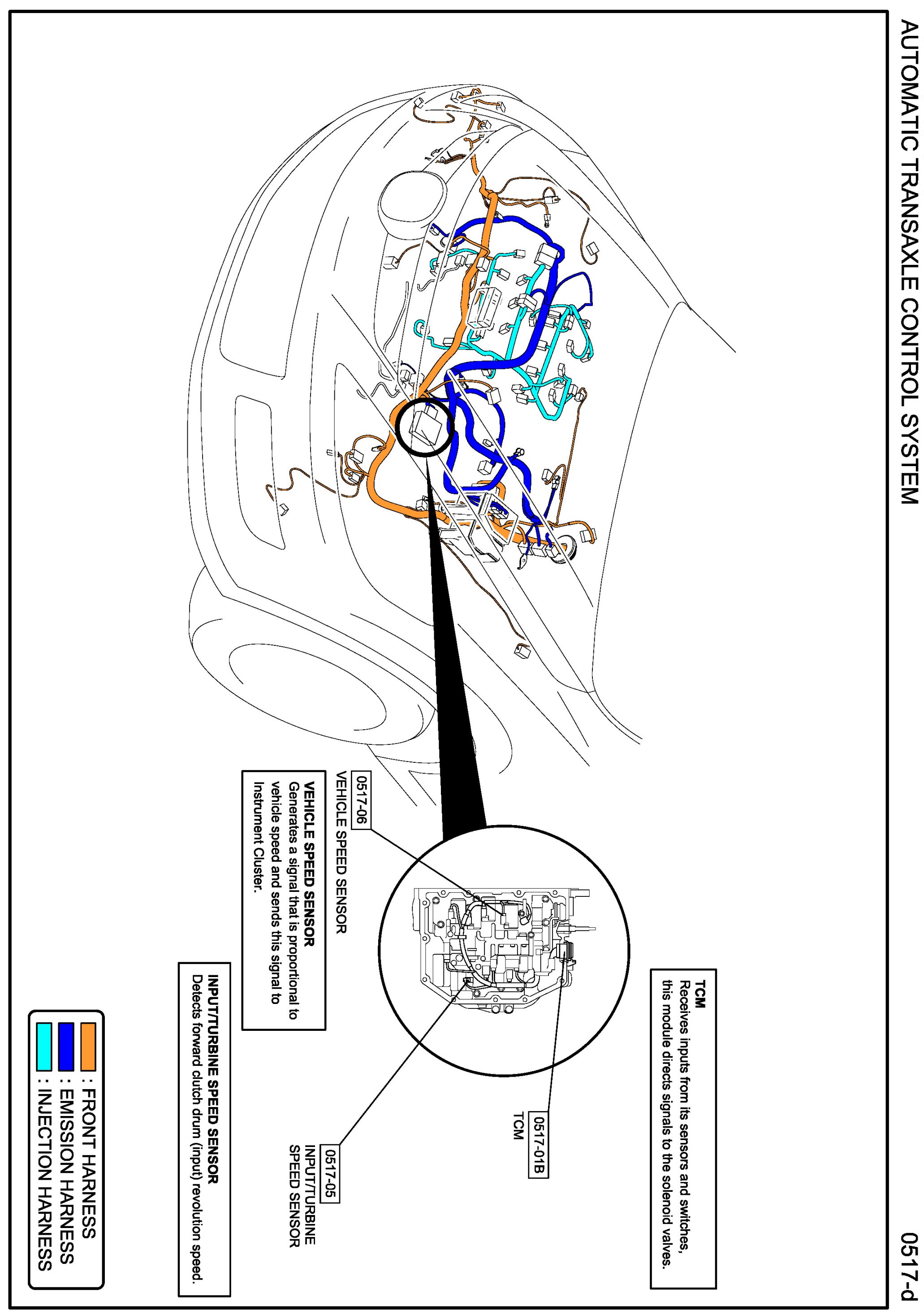

Routing View 0517-d:
Diagrams: Other diagrams referred to by name within these diagrams can be found at
Diagrams by Diagram Name Diagrams By Diagram Name
