Data Link Connector

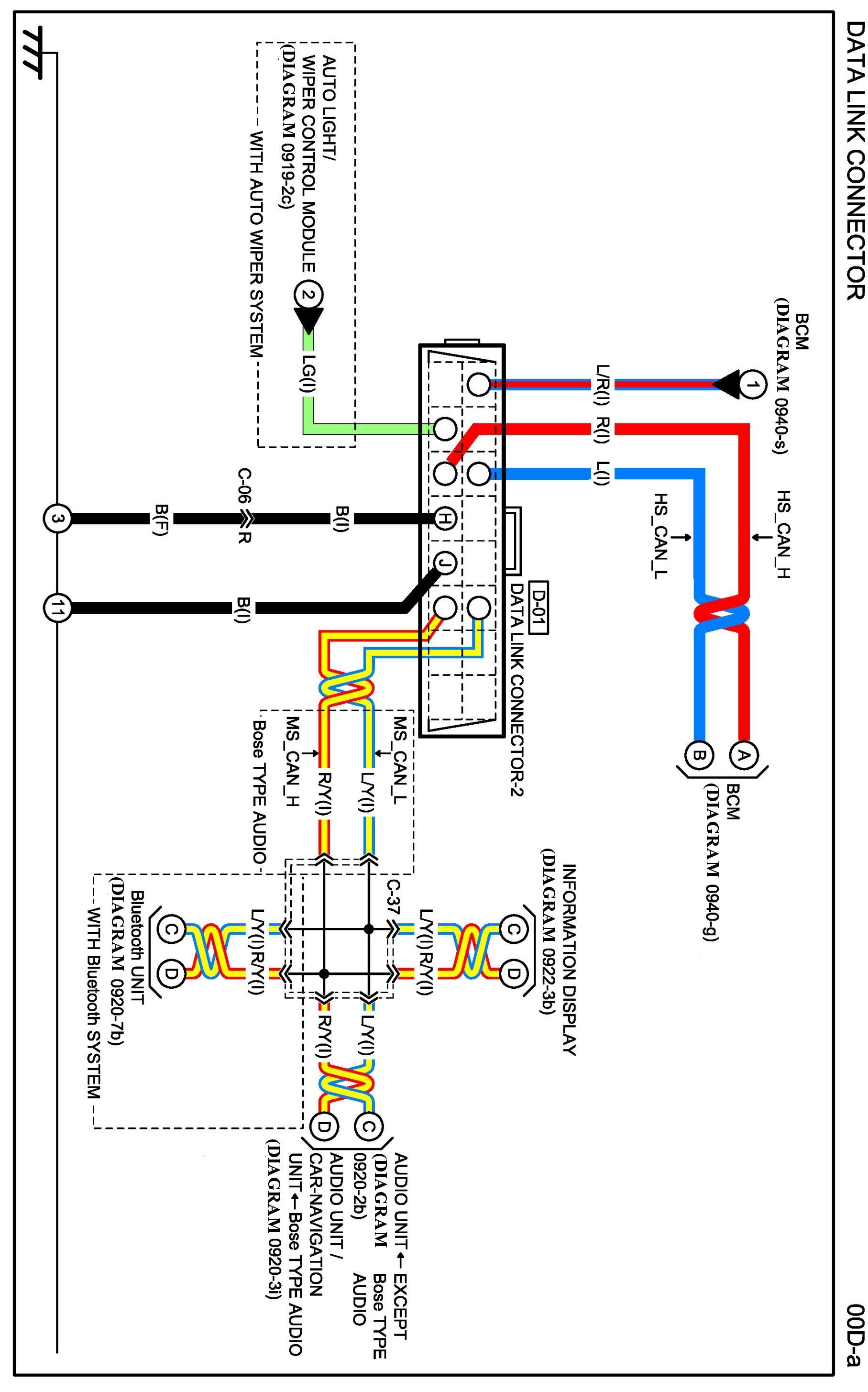

Diagram 00D-a:




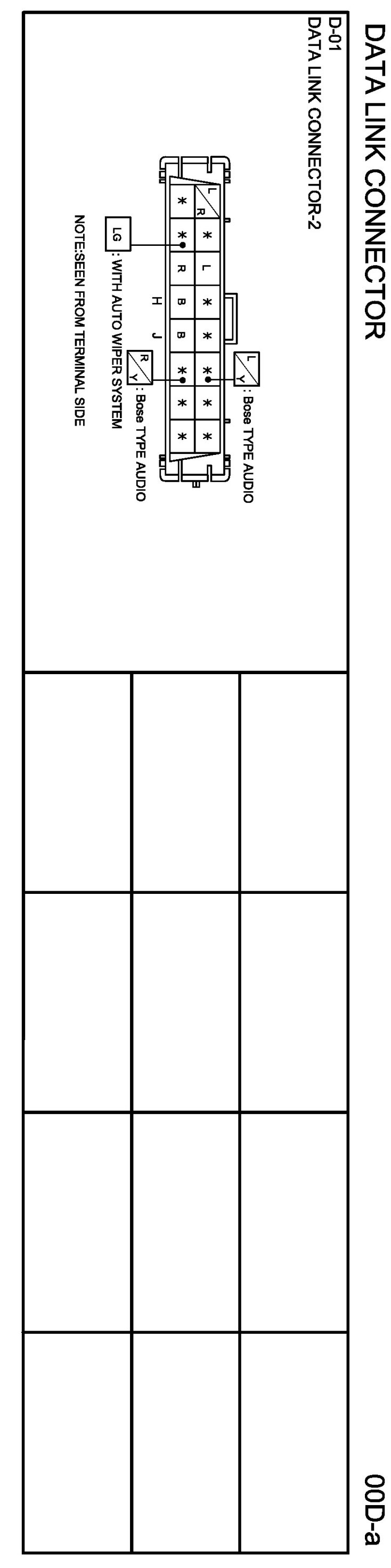

Connectors 00D-a:

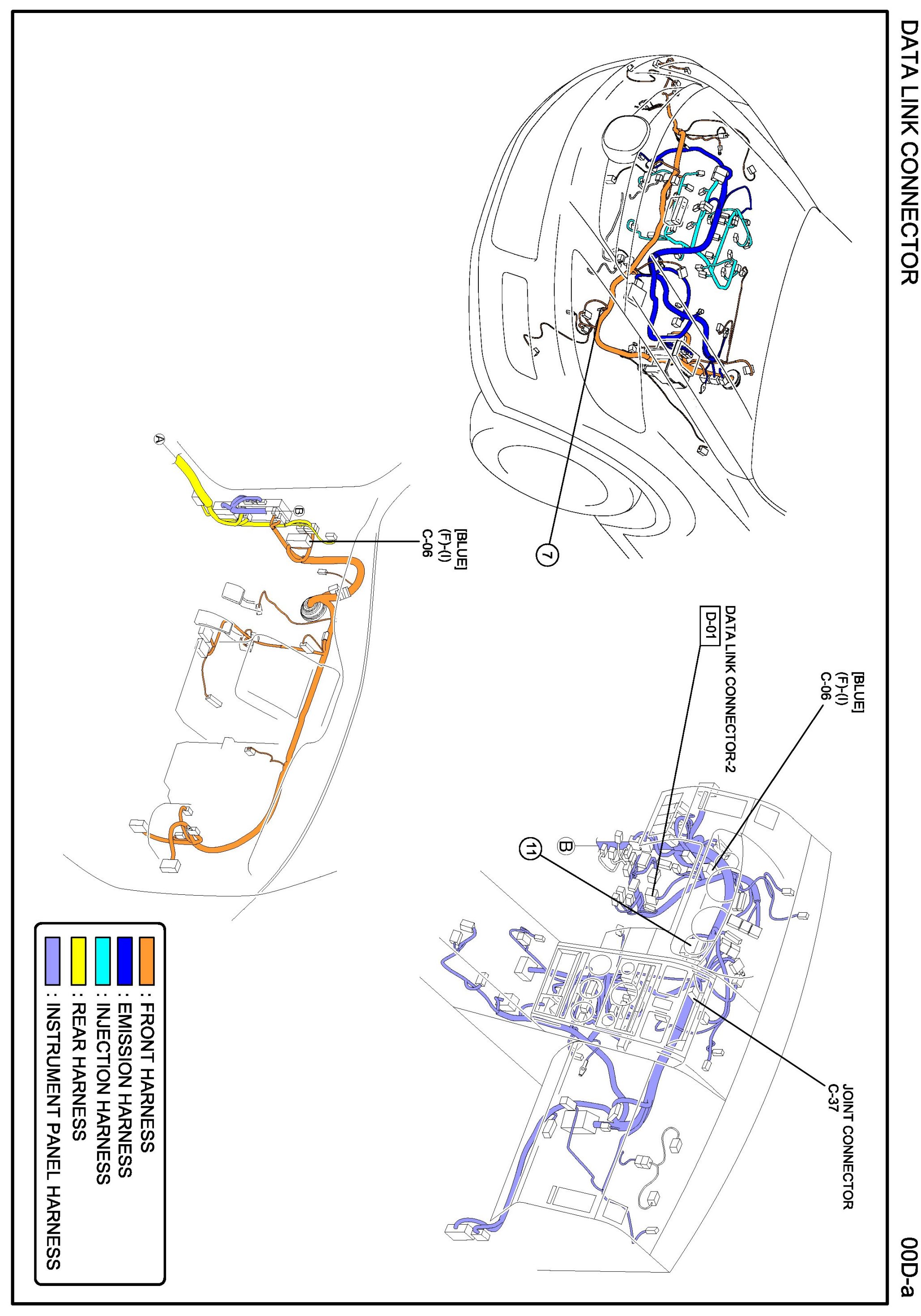

Routing View 00D-a:

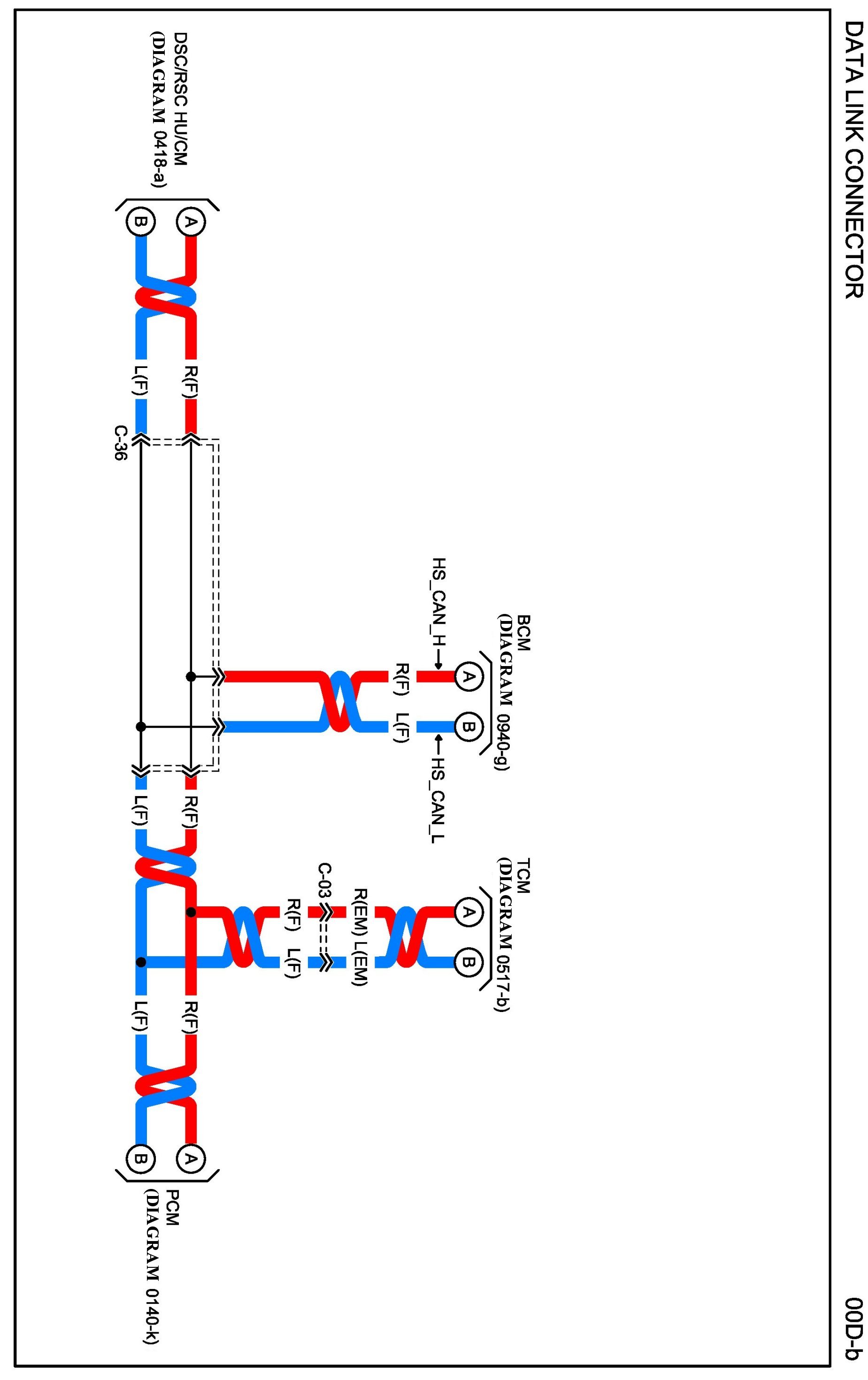

Diagram 00D-b:




Connectors 00D-a:

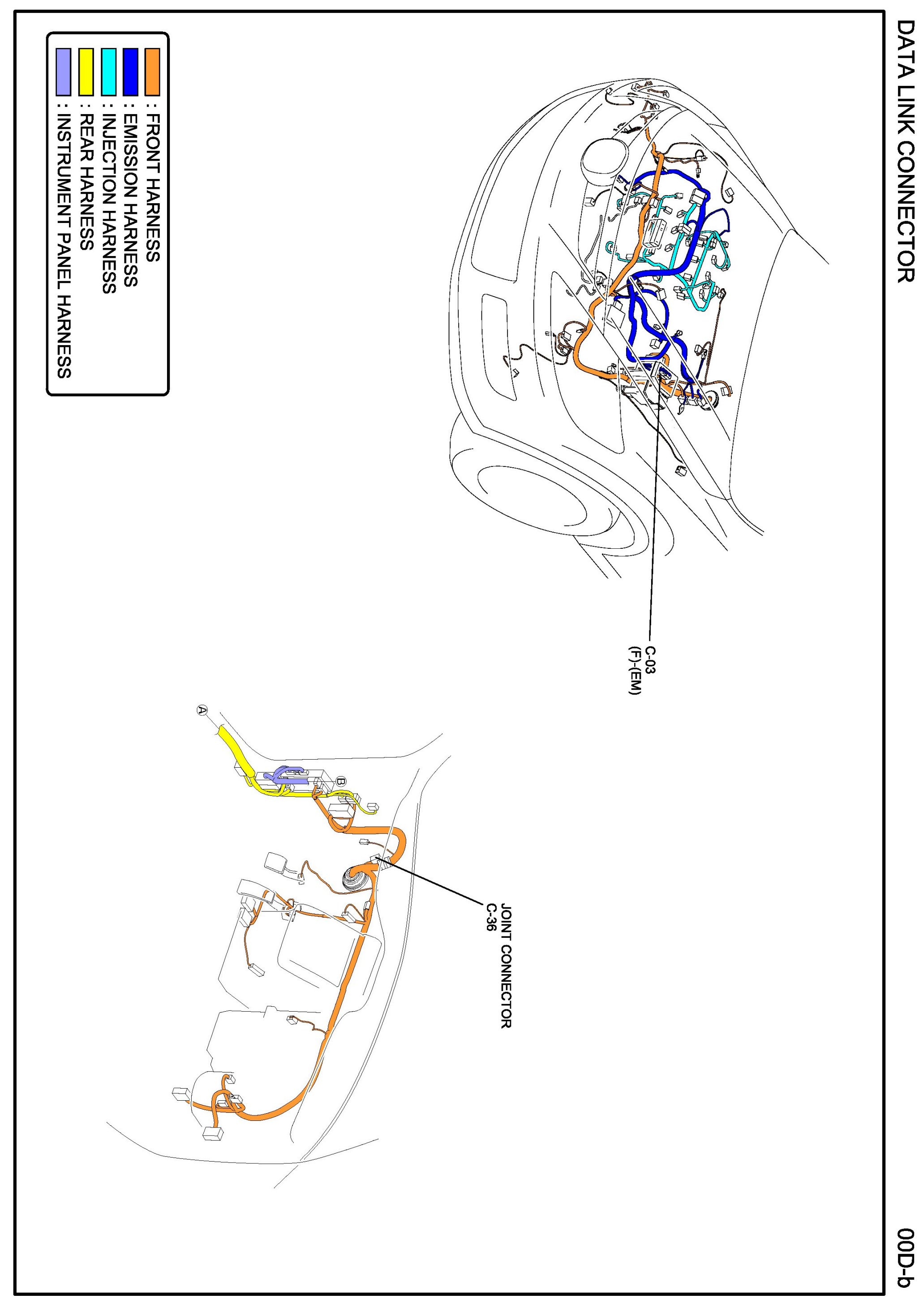

Routing View 00D-b:






Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name Diagrams By Diagram Name
