Cooling System (Single Fan Control Module)
Diagram 0112-1a:
Connectors 0112-1a:
Routing View 0112-1a:

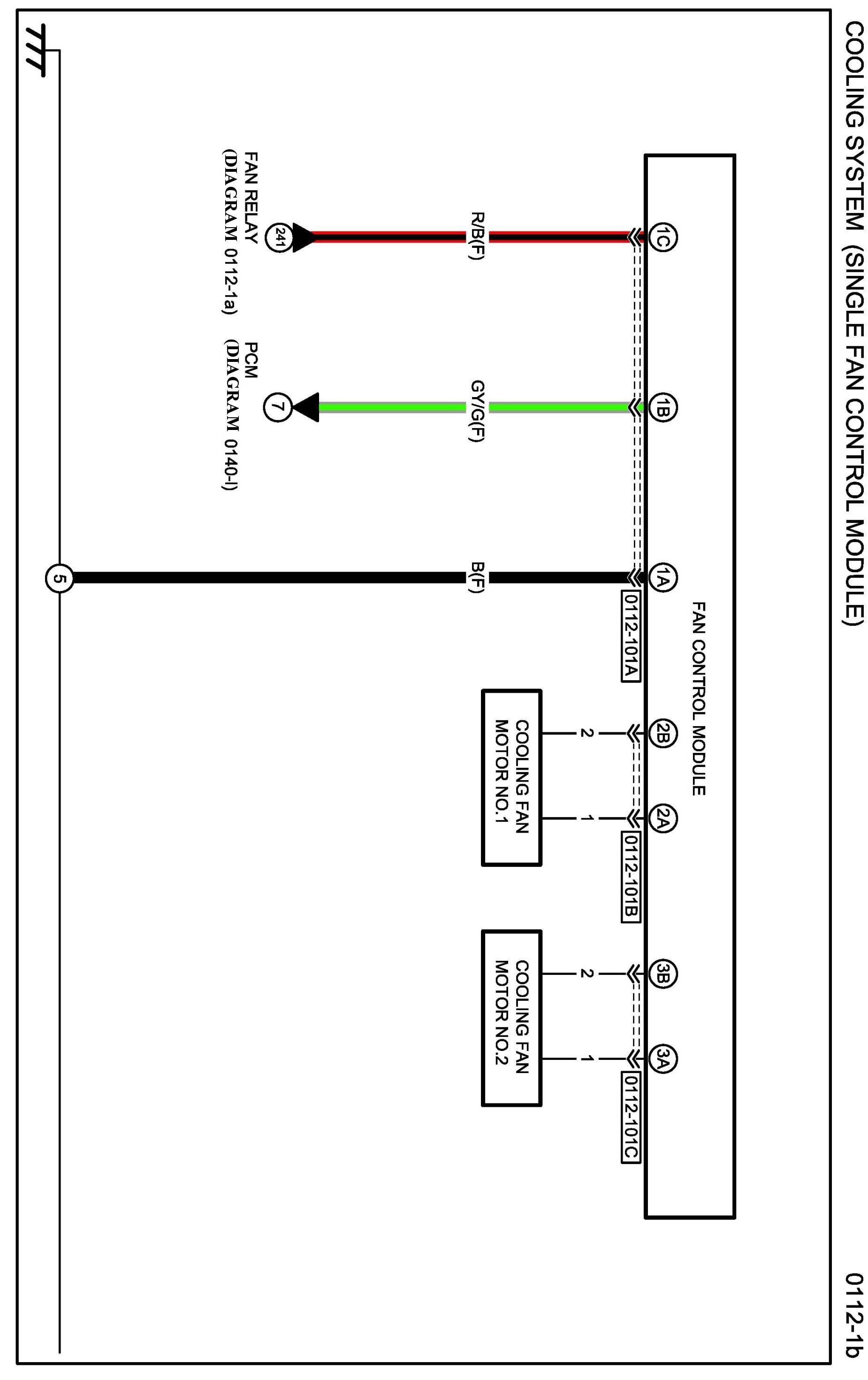

Diagram 0112-1b:

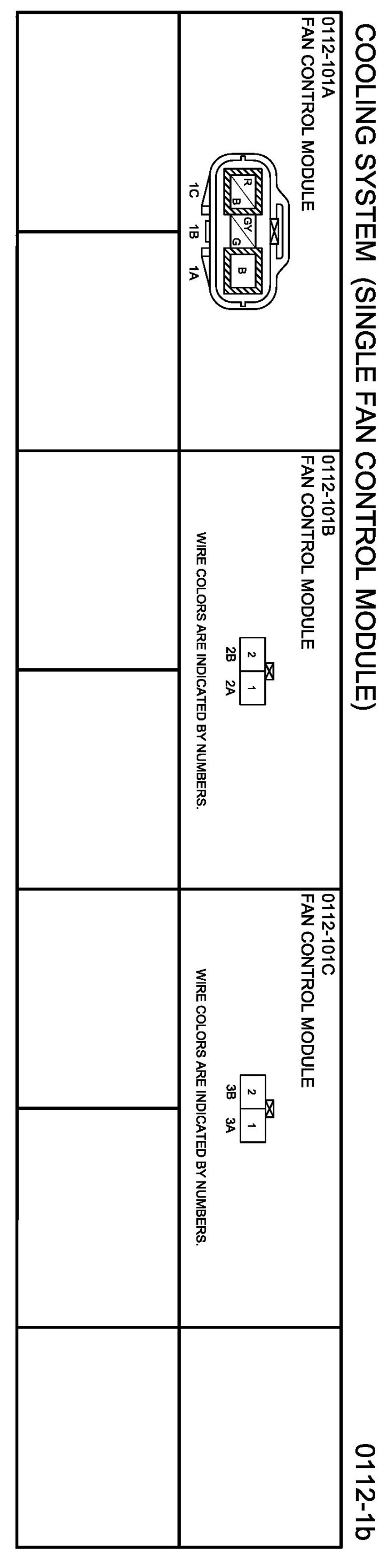

Connectors 0112-1b:

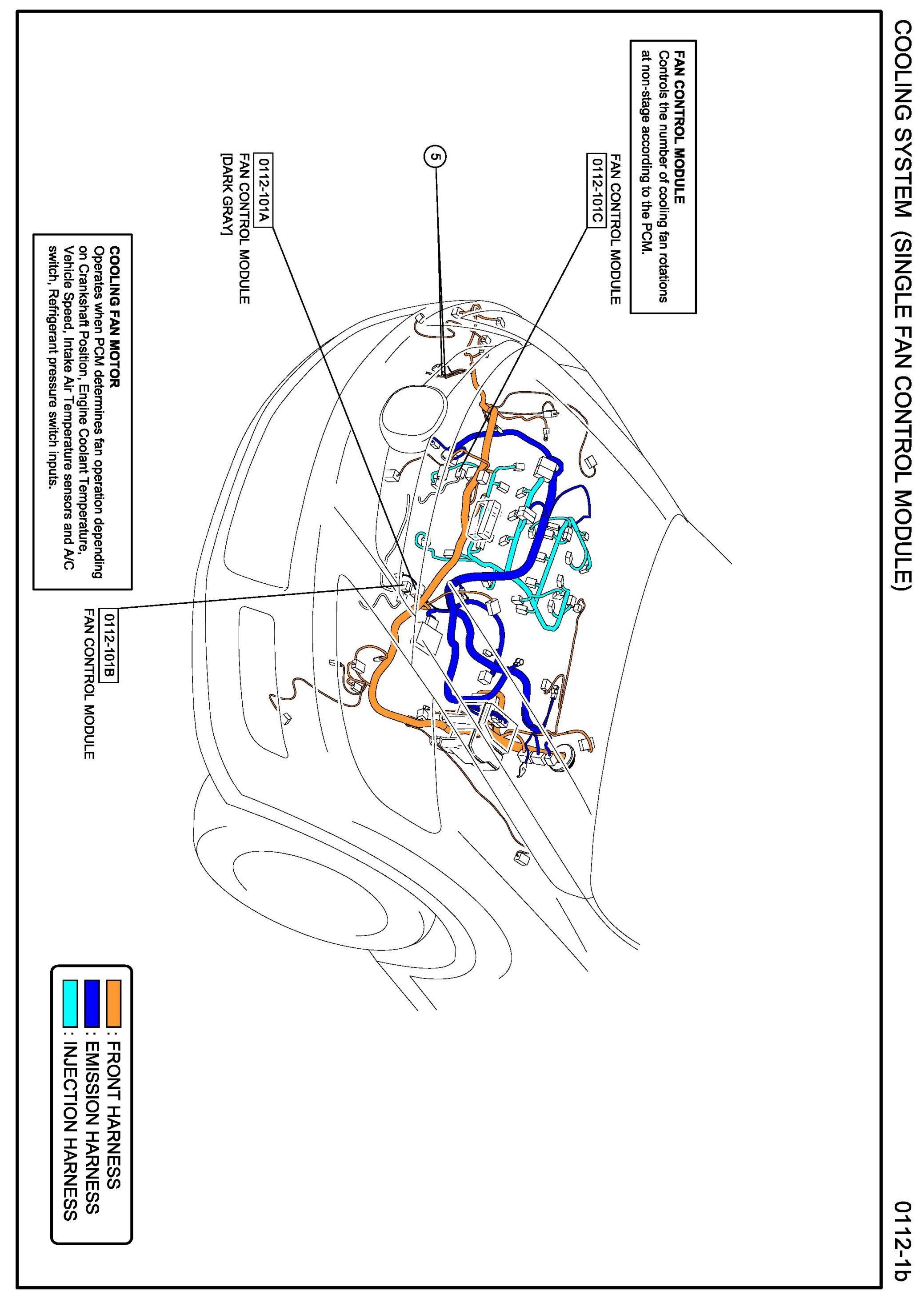

Routing View 0112-1b:
Diagrams: Other diagrams referred to by name within these diagrams can be found at
Diagrams by Diagram Name Diagrams By Diagram Name
