Starting System

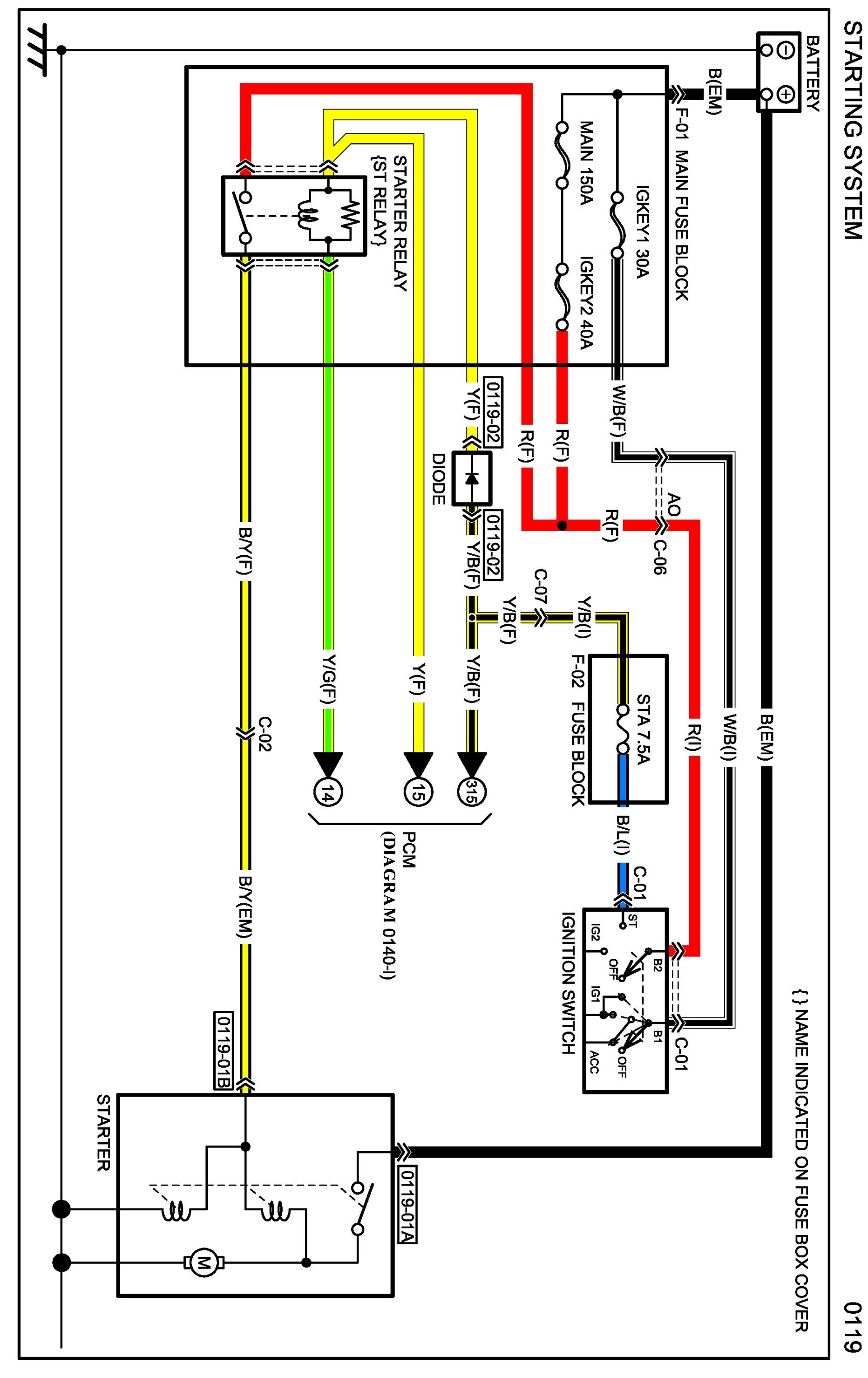

Diagram 0119:

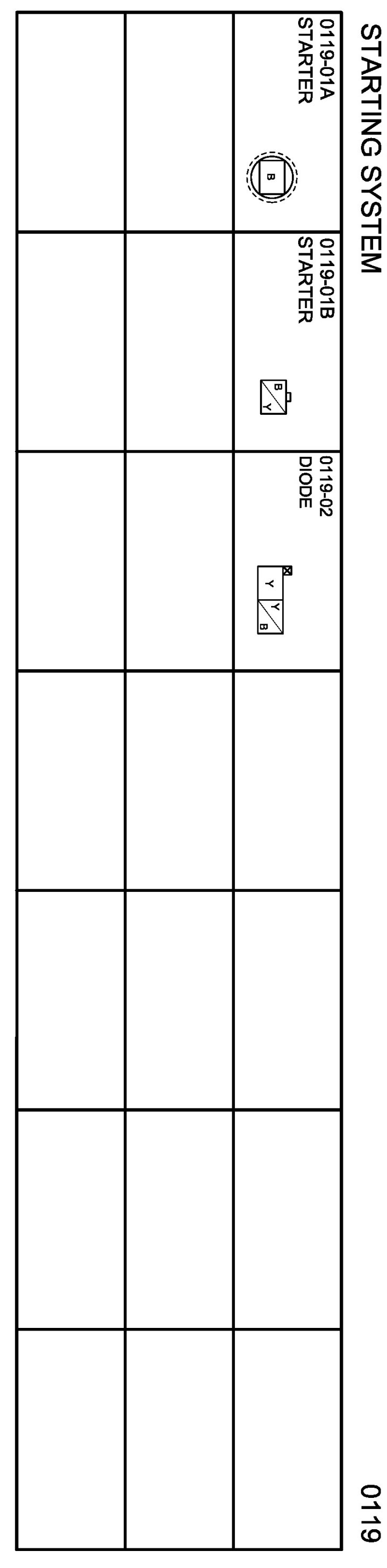

Connectors 0119:

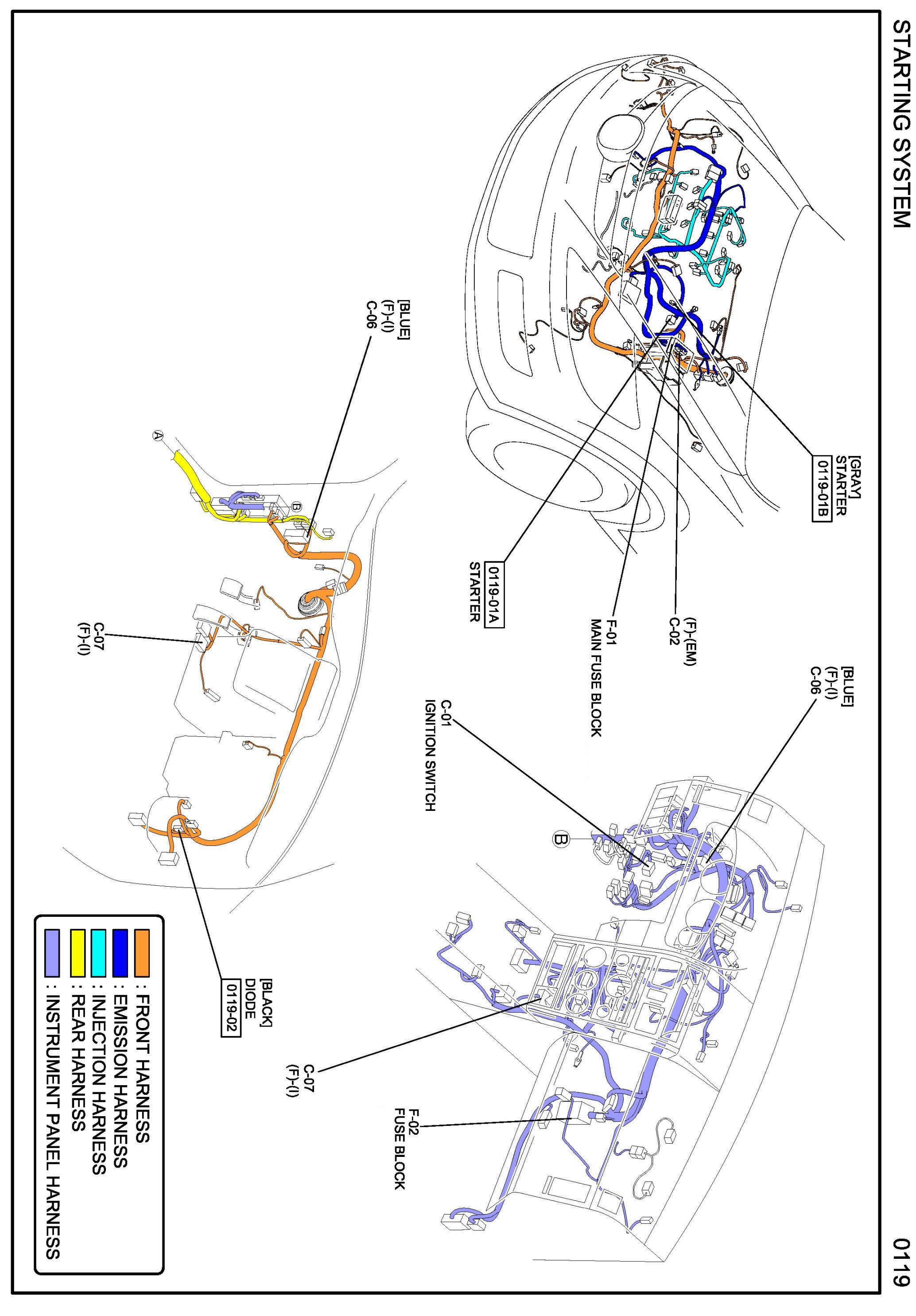

Routing View 0119:






Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name Diagrams By Diagram Name
