Steering Angle Sensor

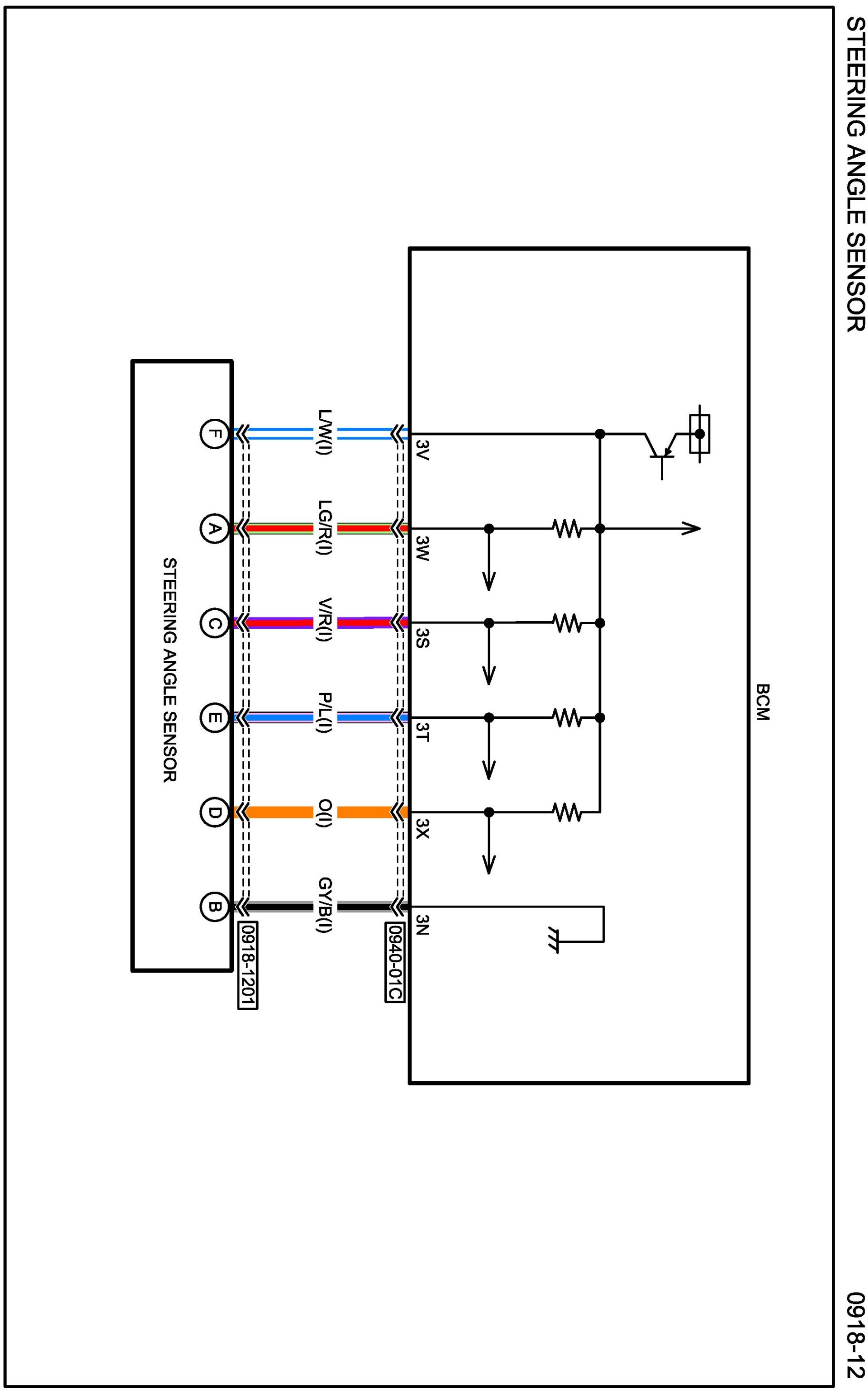

Diagram 0918-12:

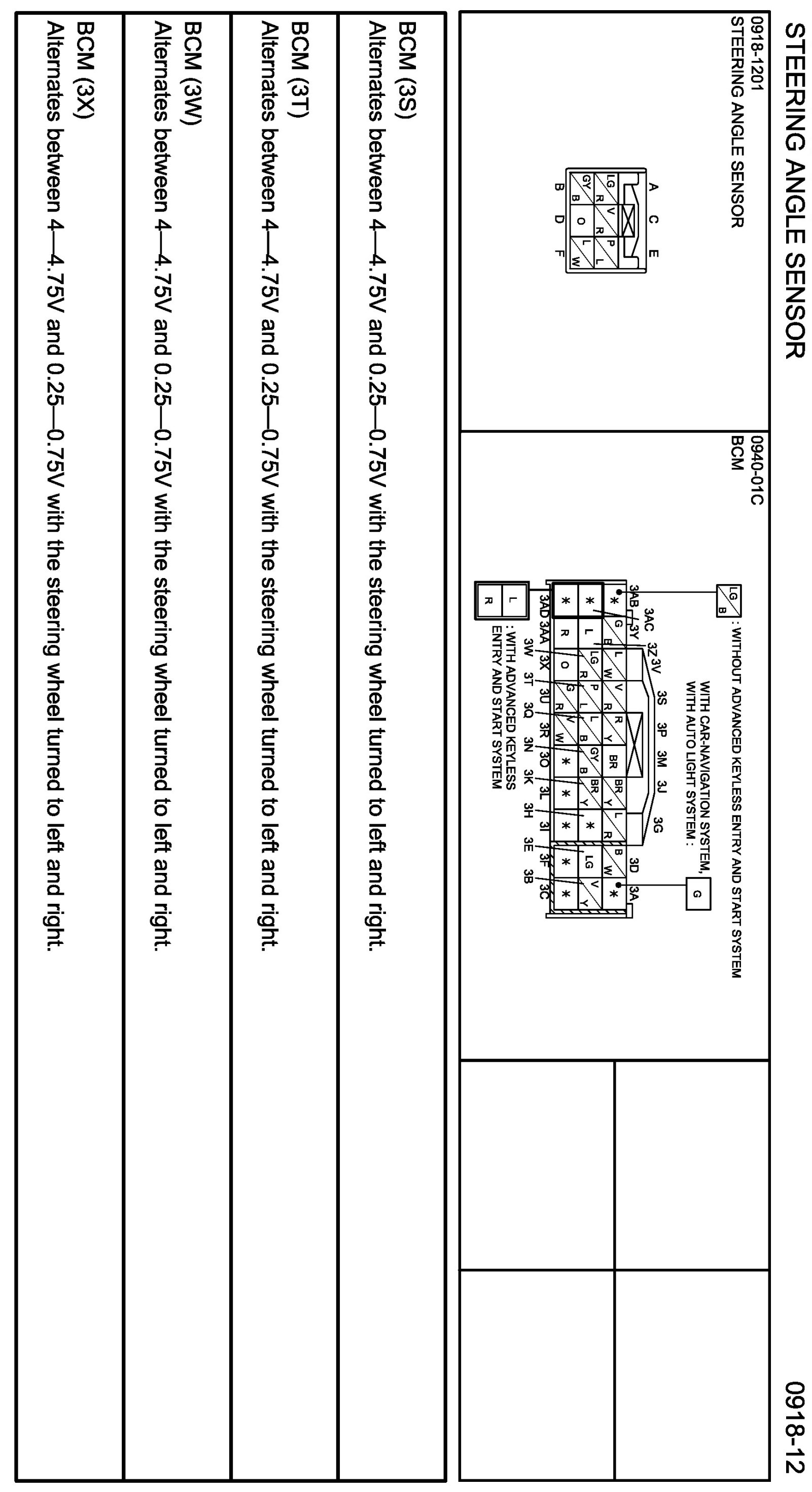

Connectors 0918-12:

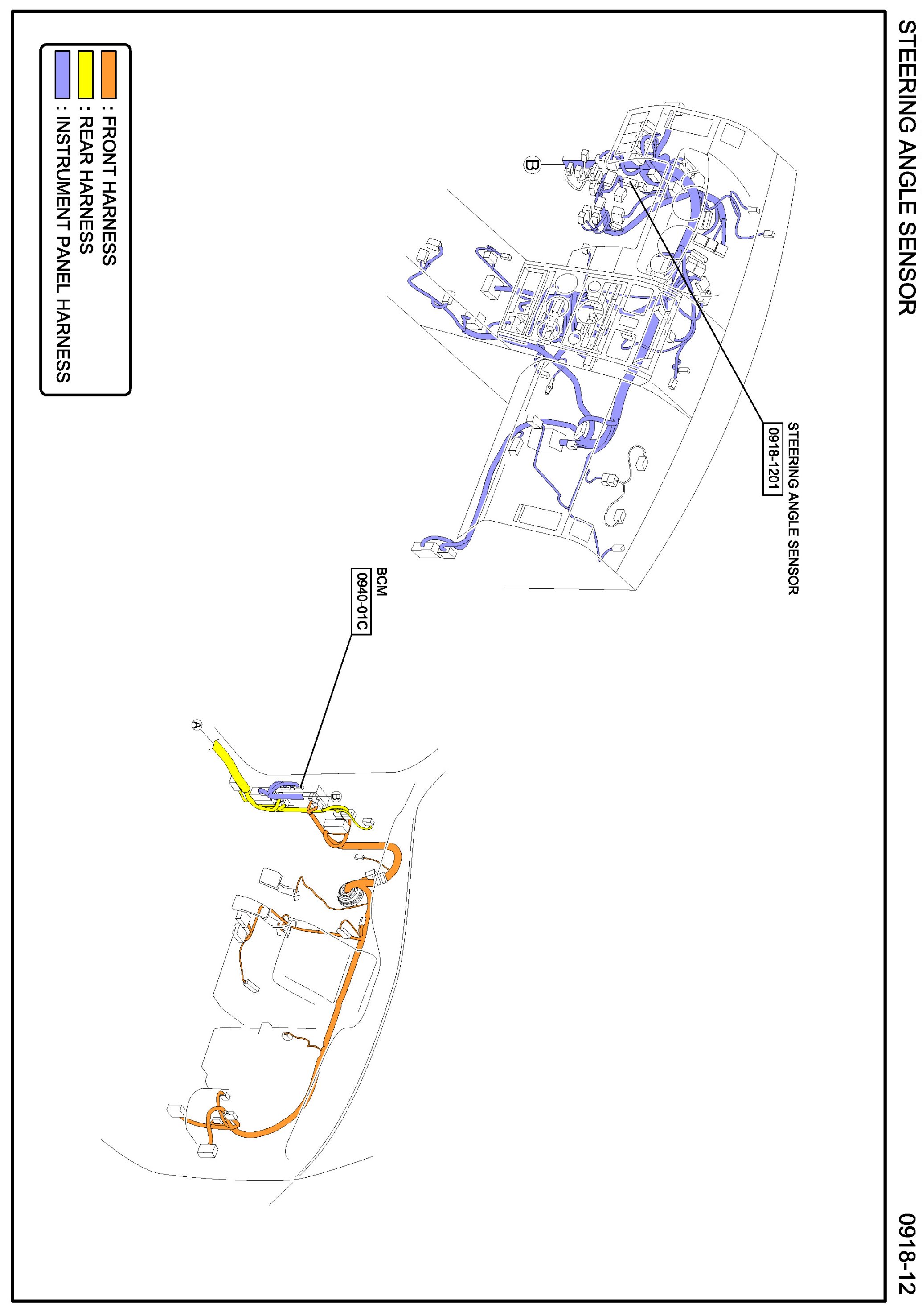

Routing View 0918-12:
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name Diagrams By Diagram Name
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name Diagrams By Diagram Name
