Windows

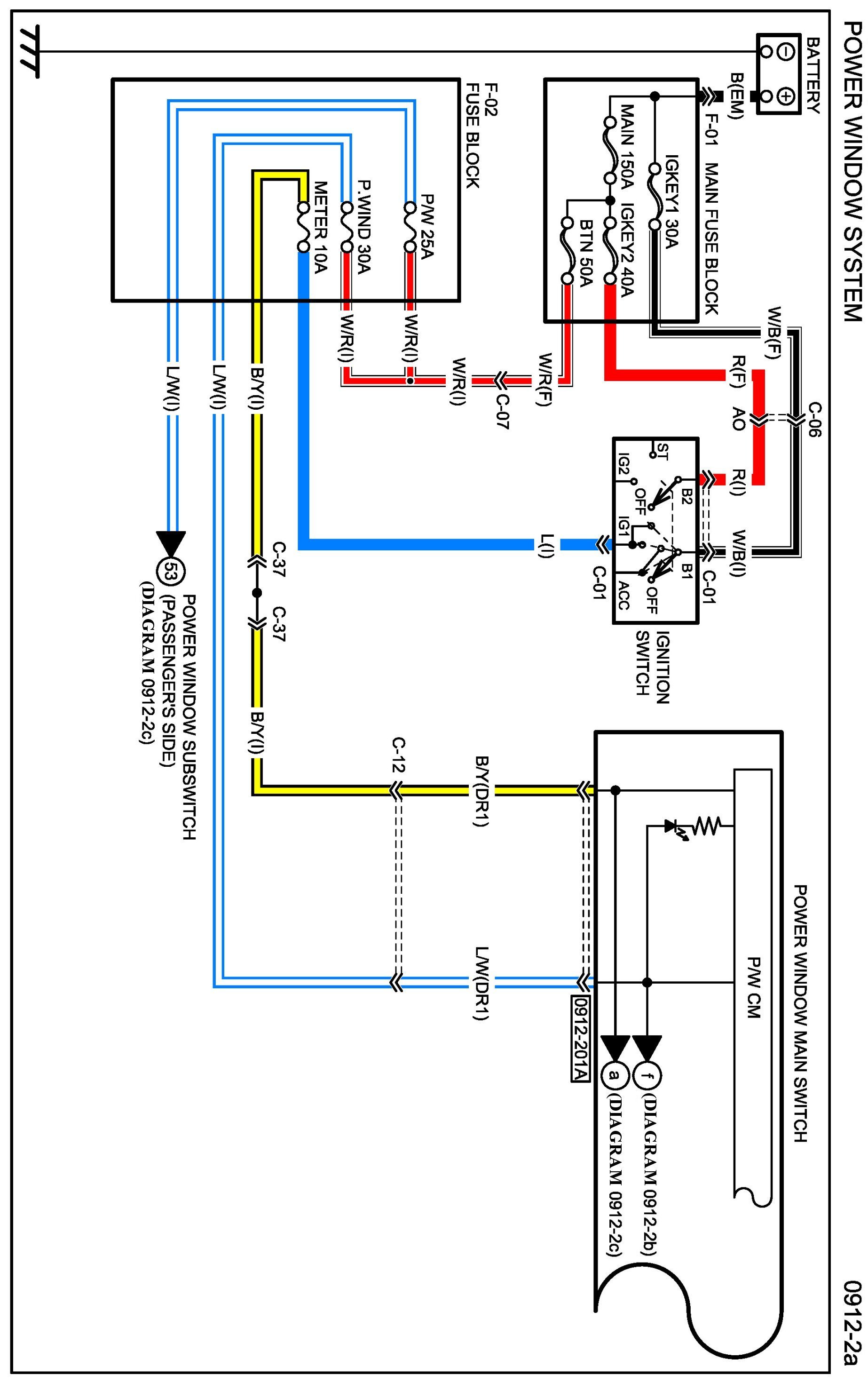

Diagram 0912-2a:

Connectors 0912-2a:

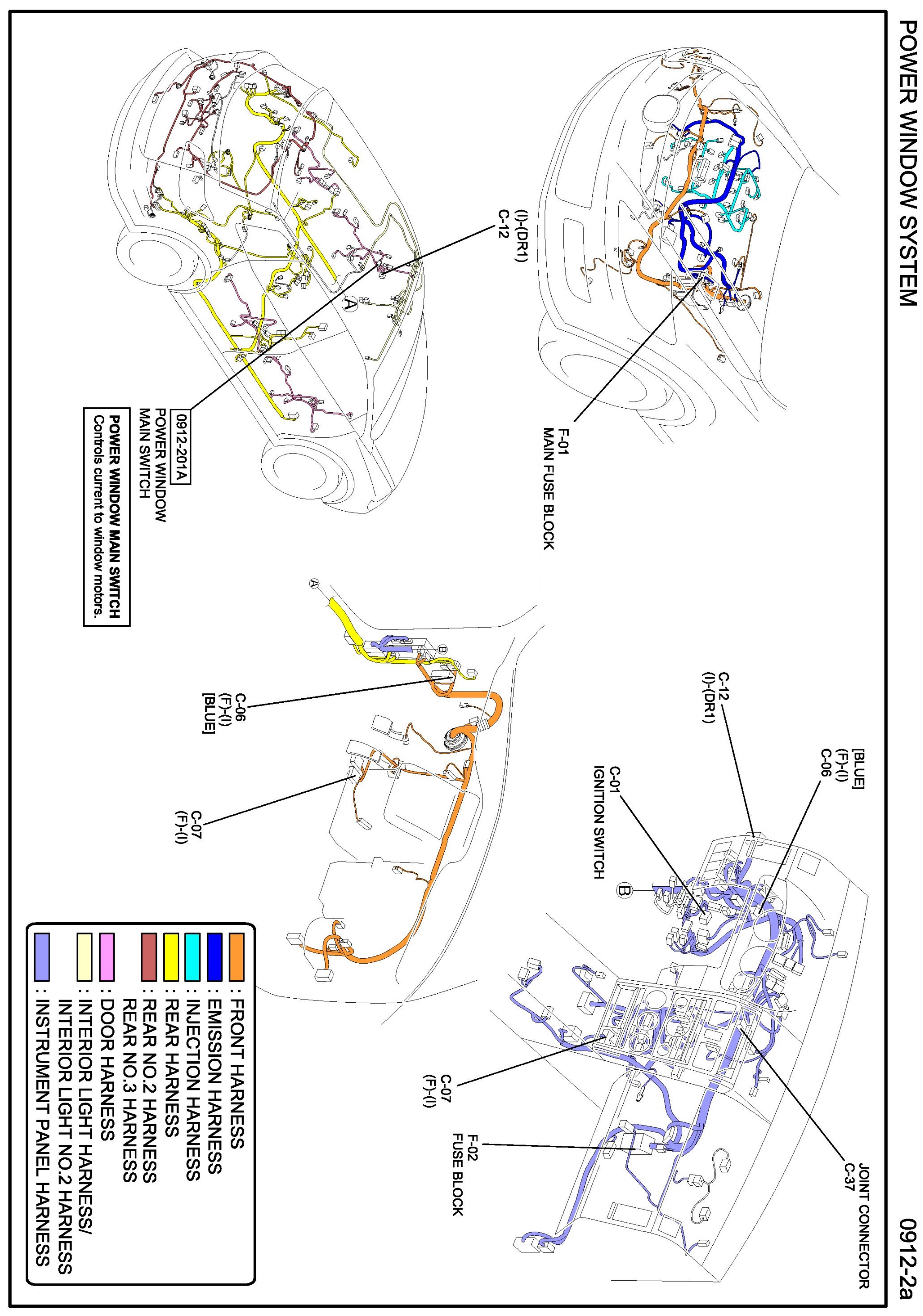

Routing View 0912-2a:

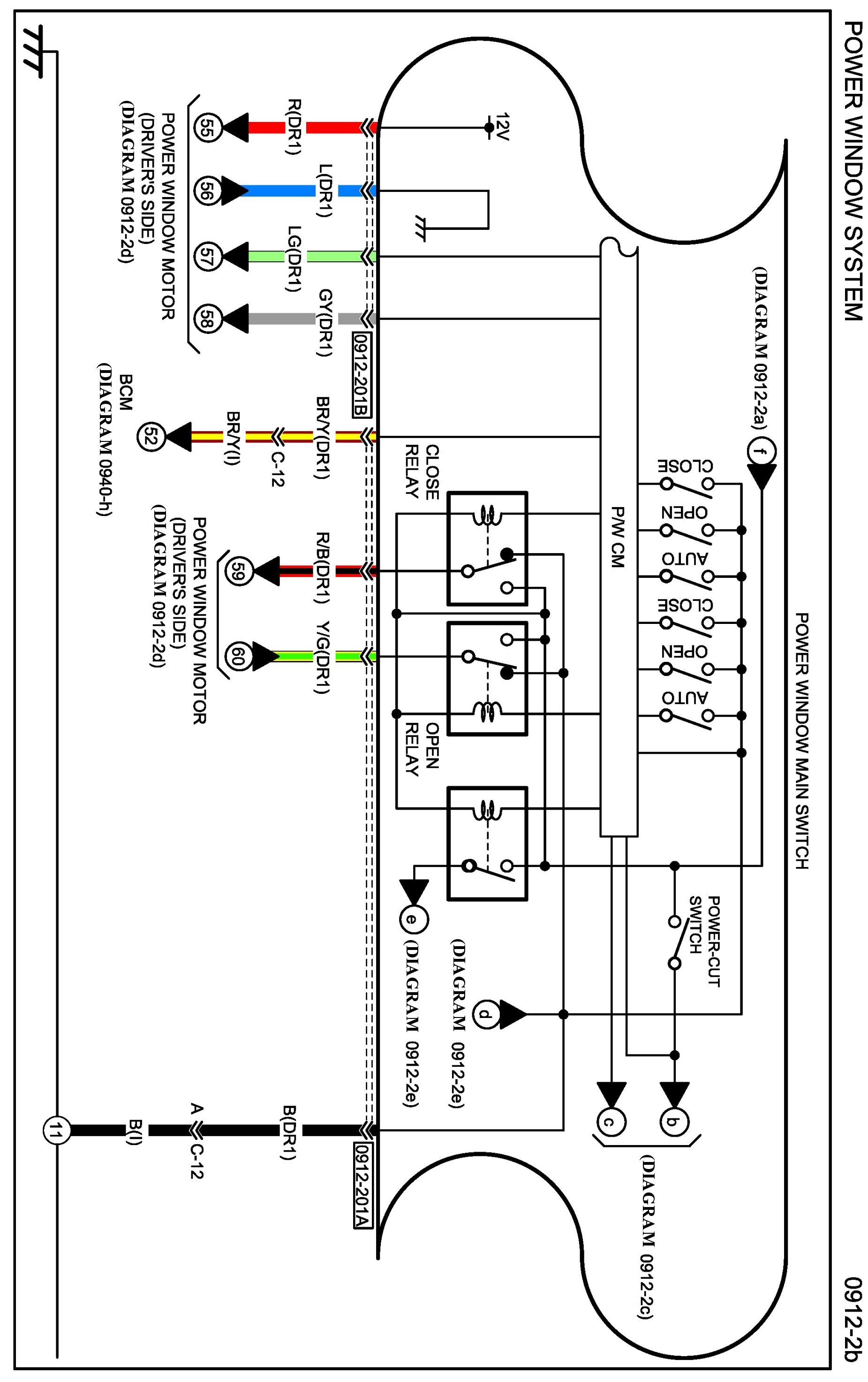

Diagram 0912-2b:

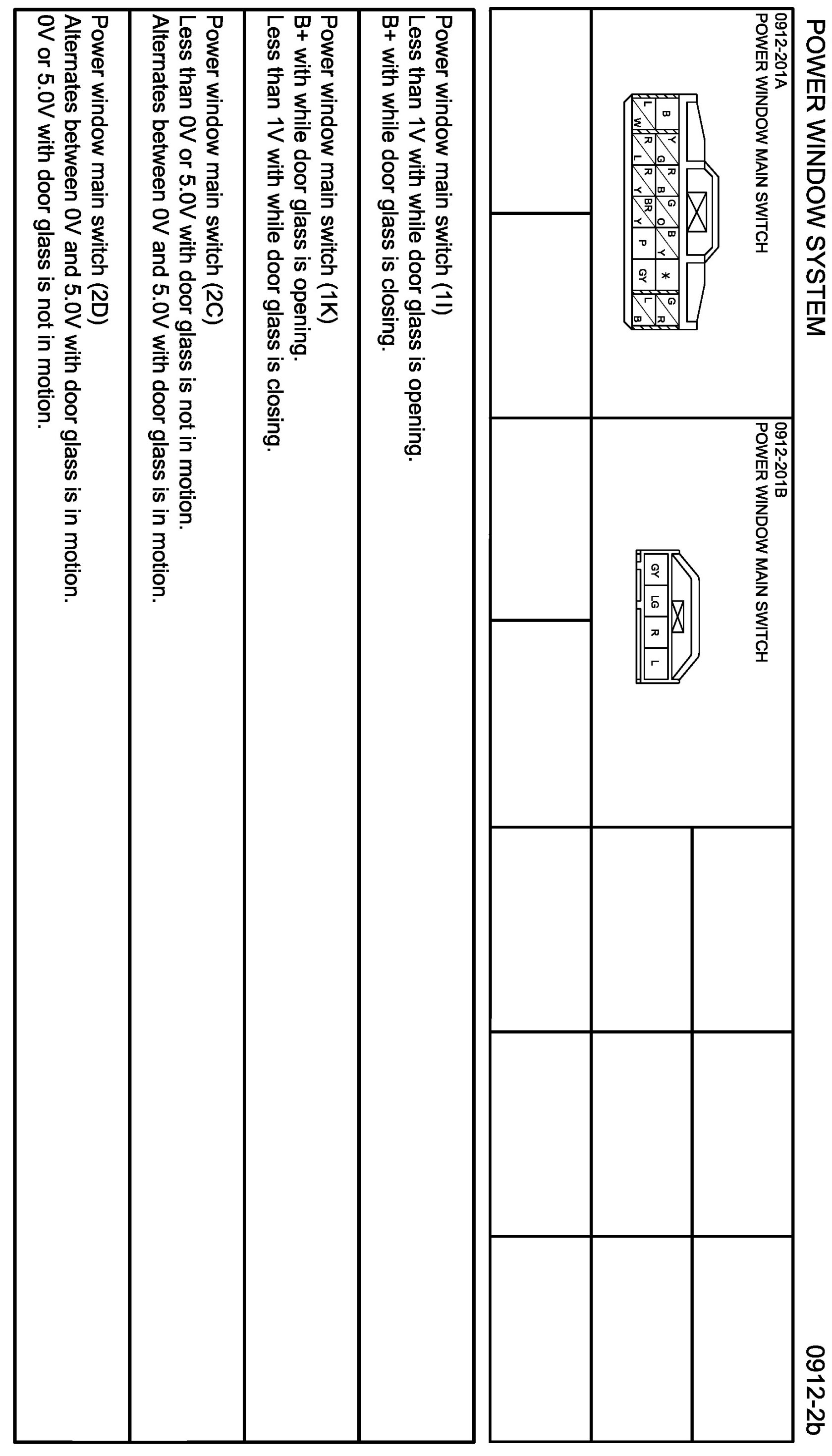

Connectors 0912-2b:

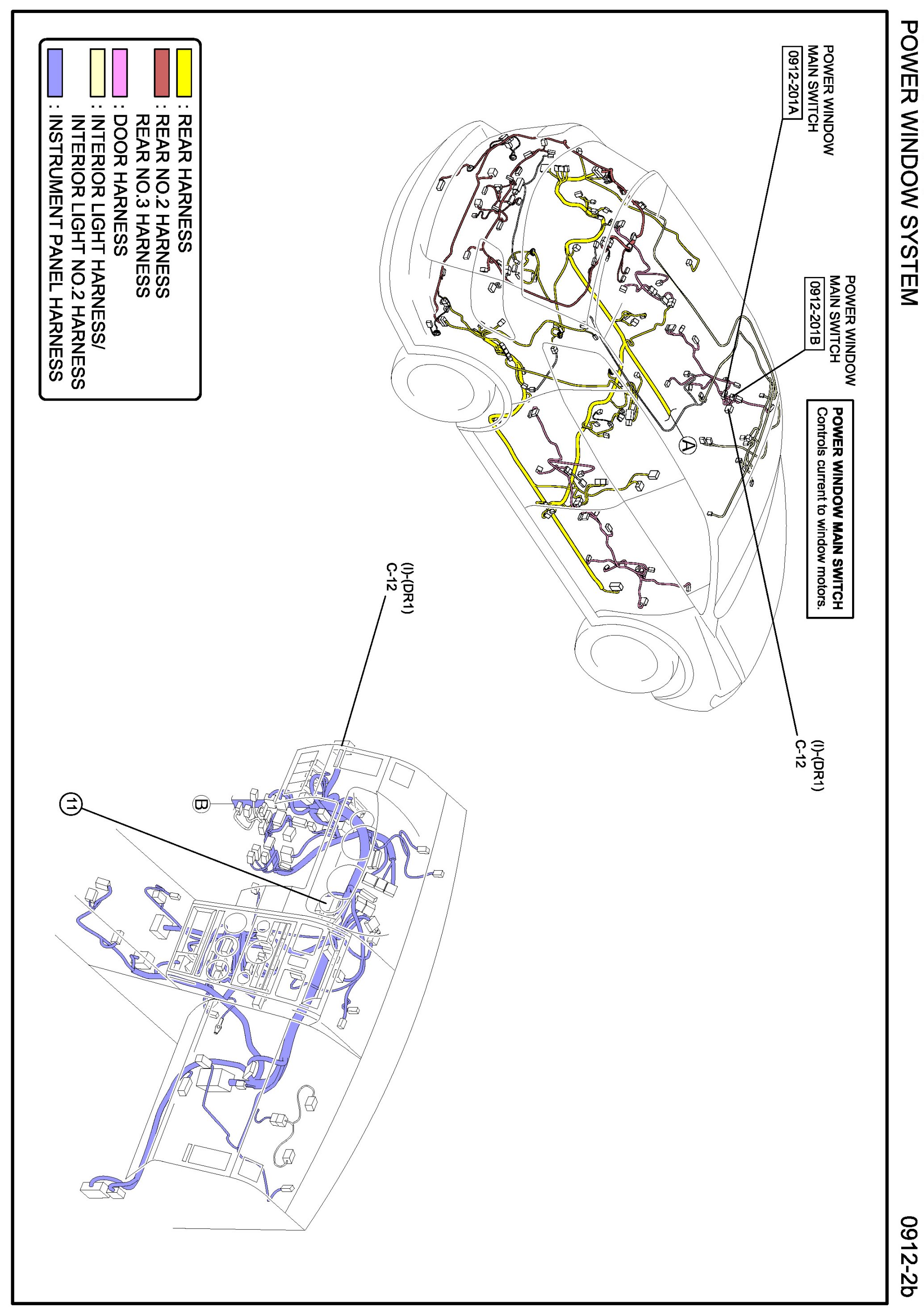

Routing View 0912-2b:

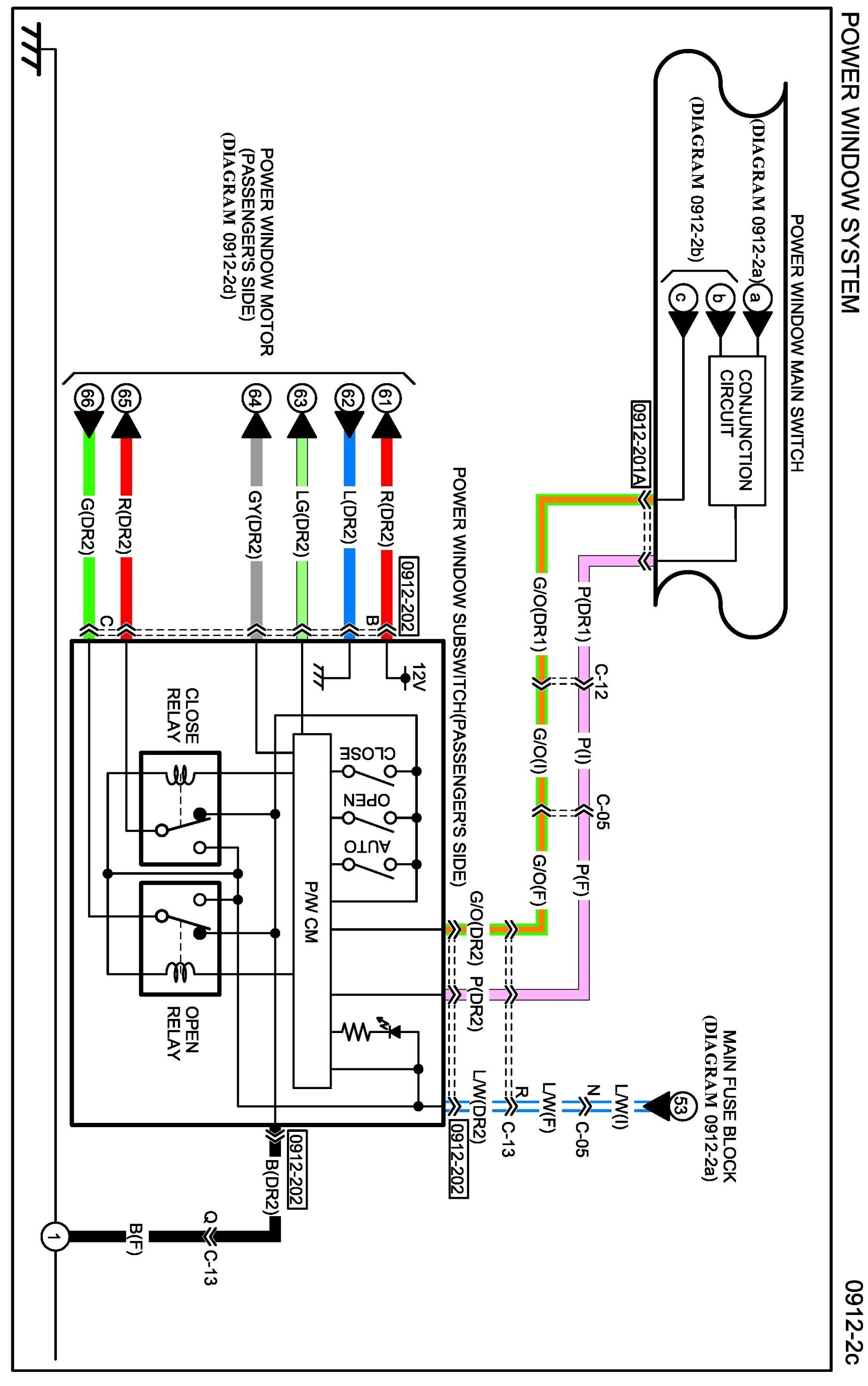

Diagram 0912-2c:

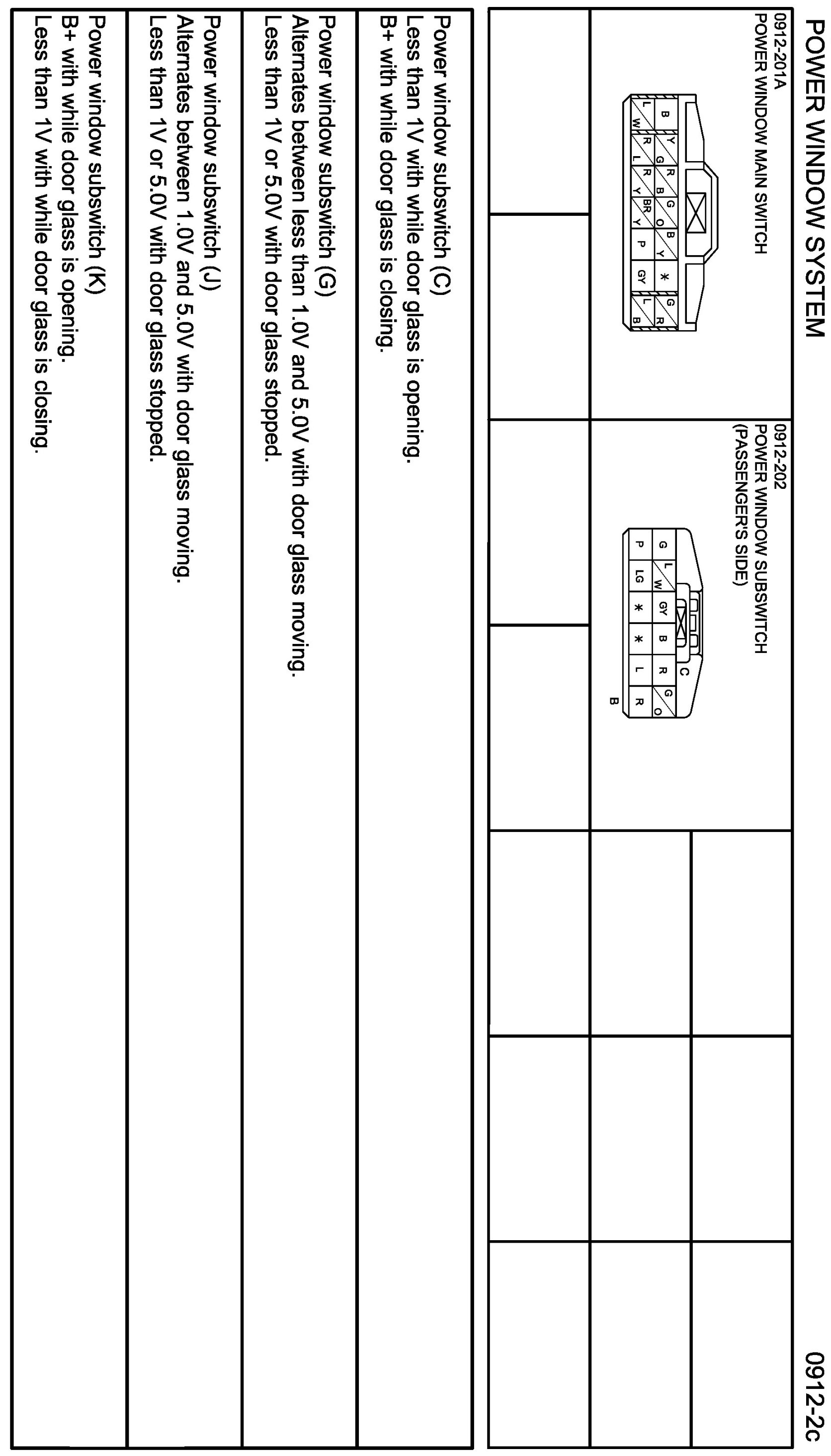

Connectors 0912-2c:

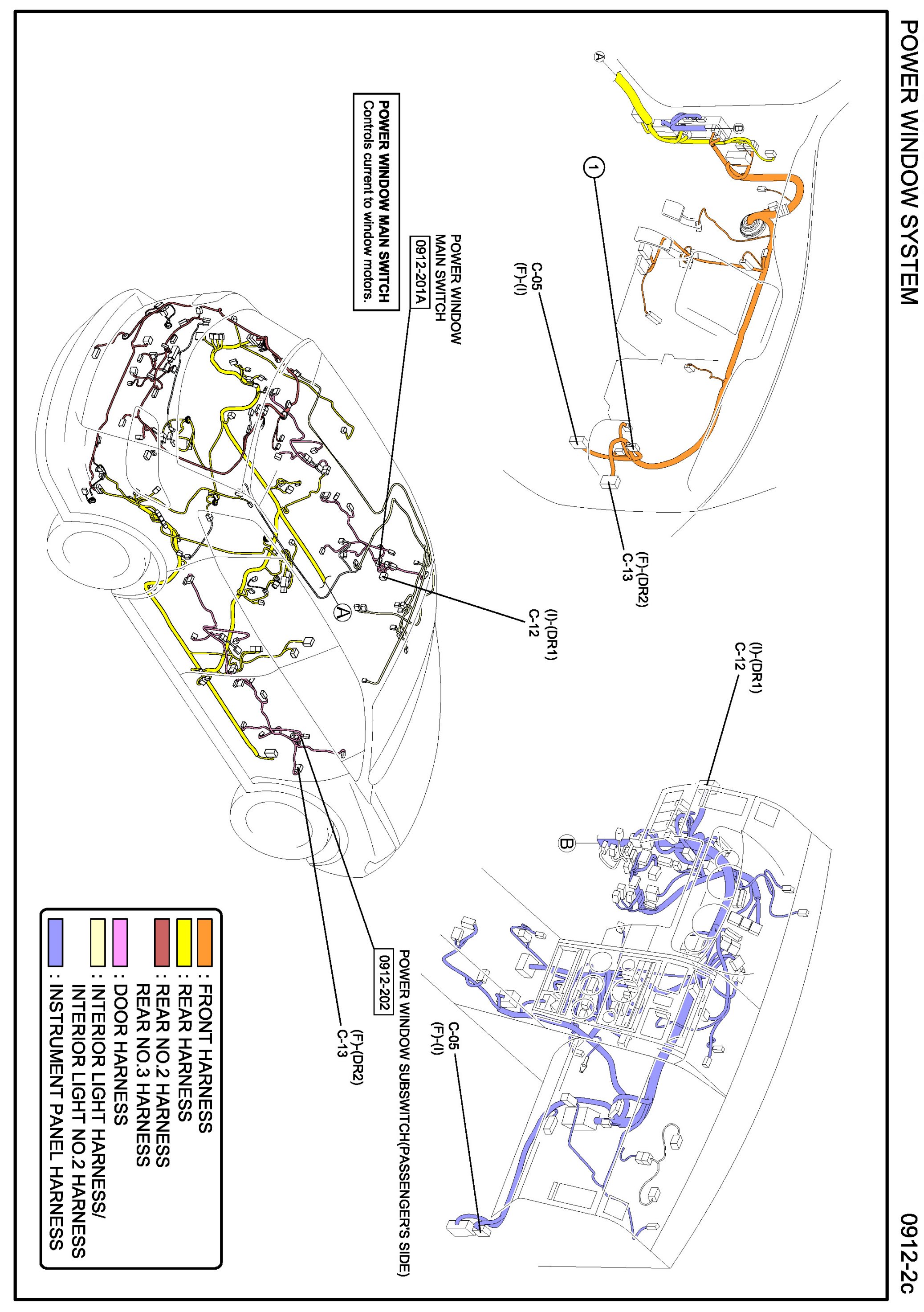

Routing View 0912-2c:

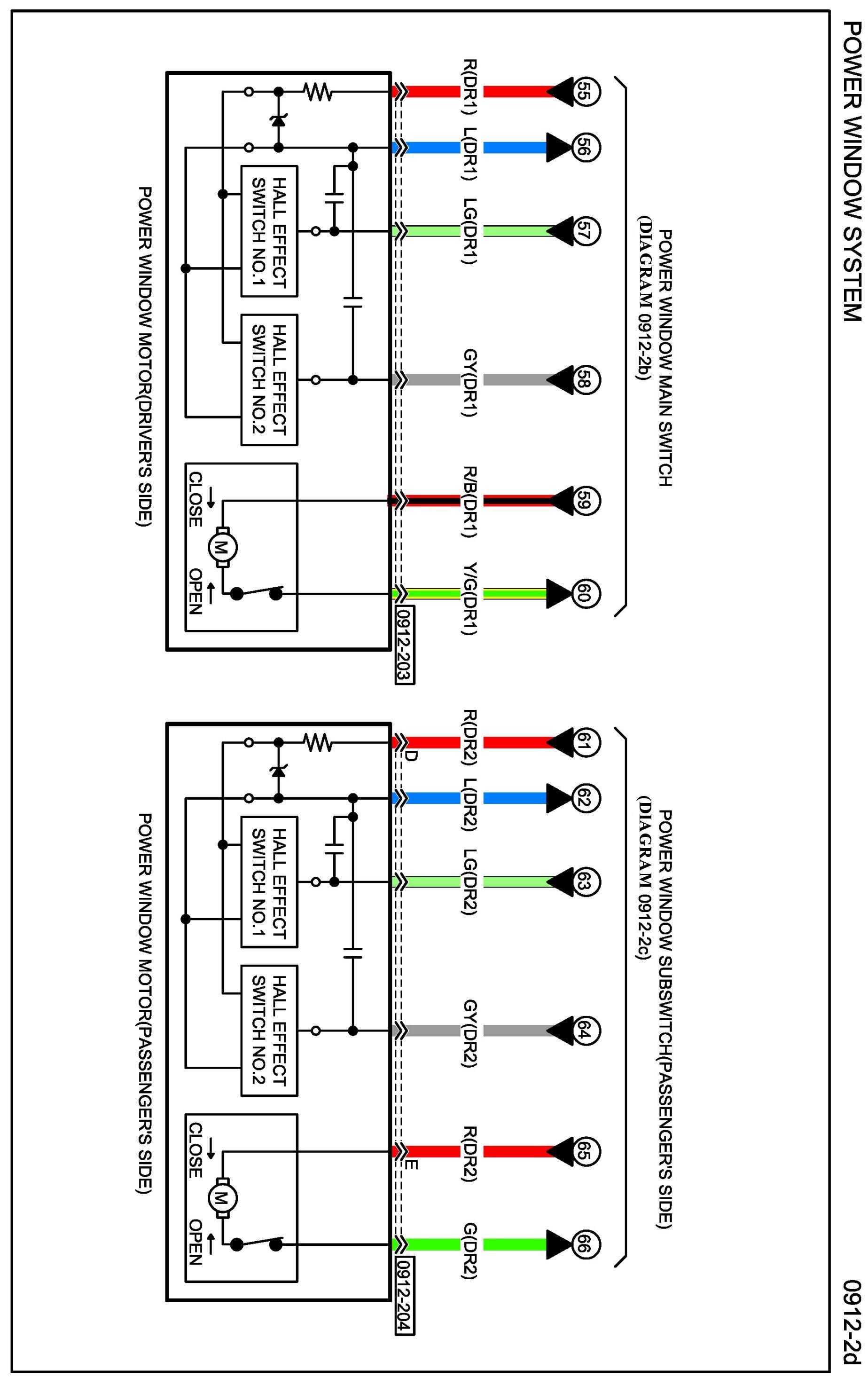

Diagram 0912-2d:

Connectors 0912-2d:

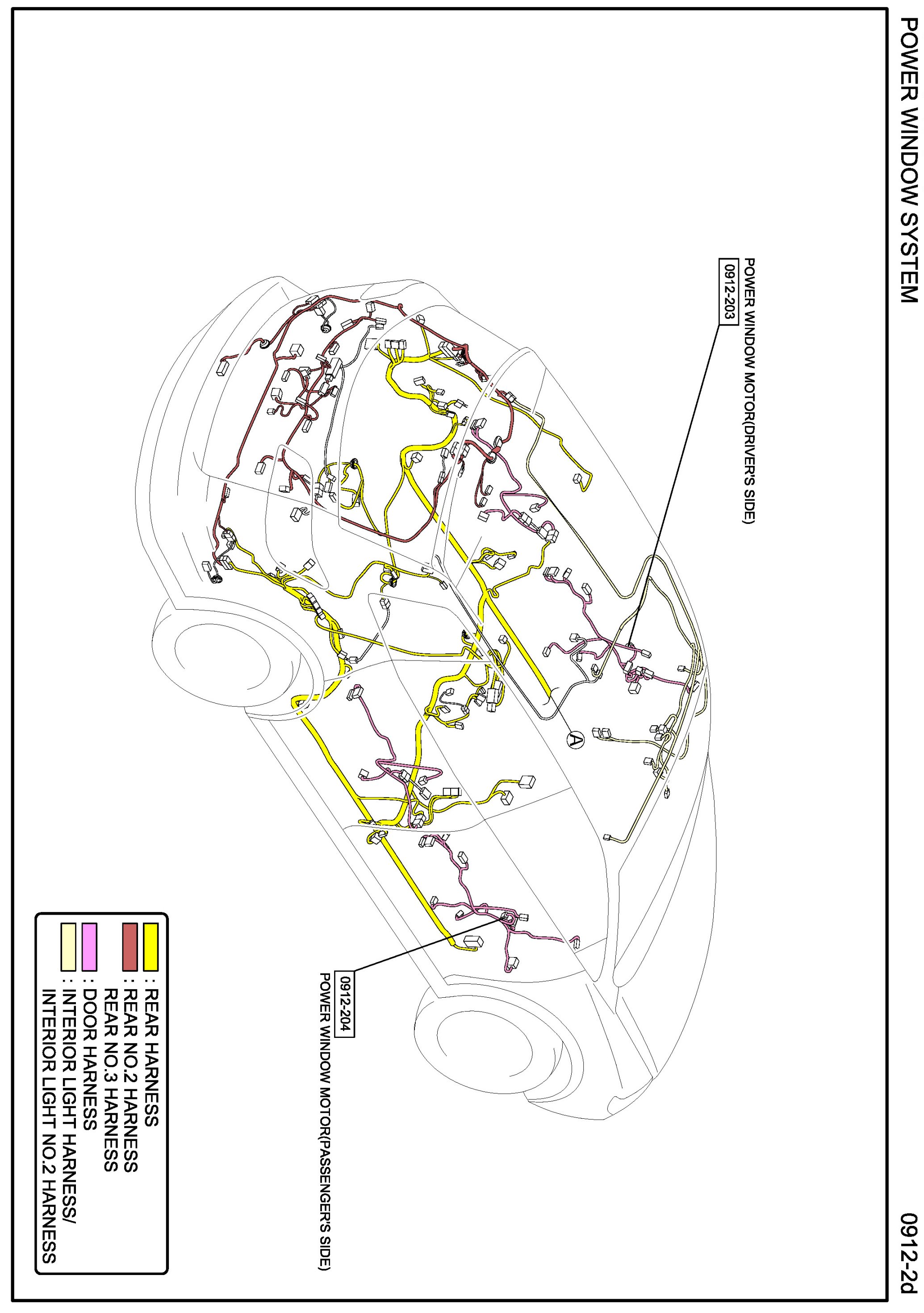

Routing View 0912-2d:

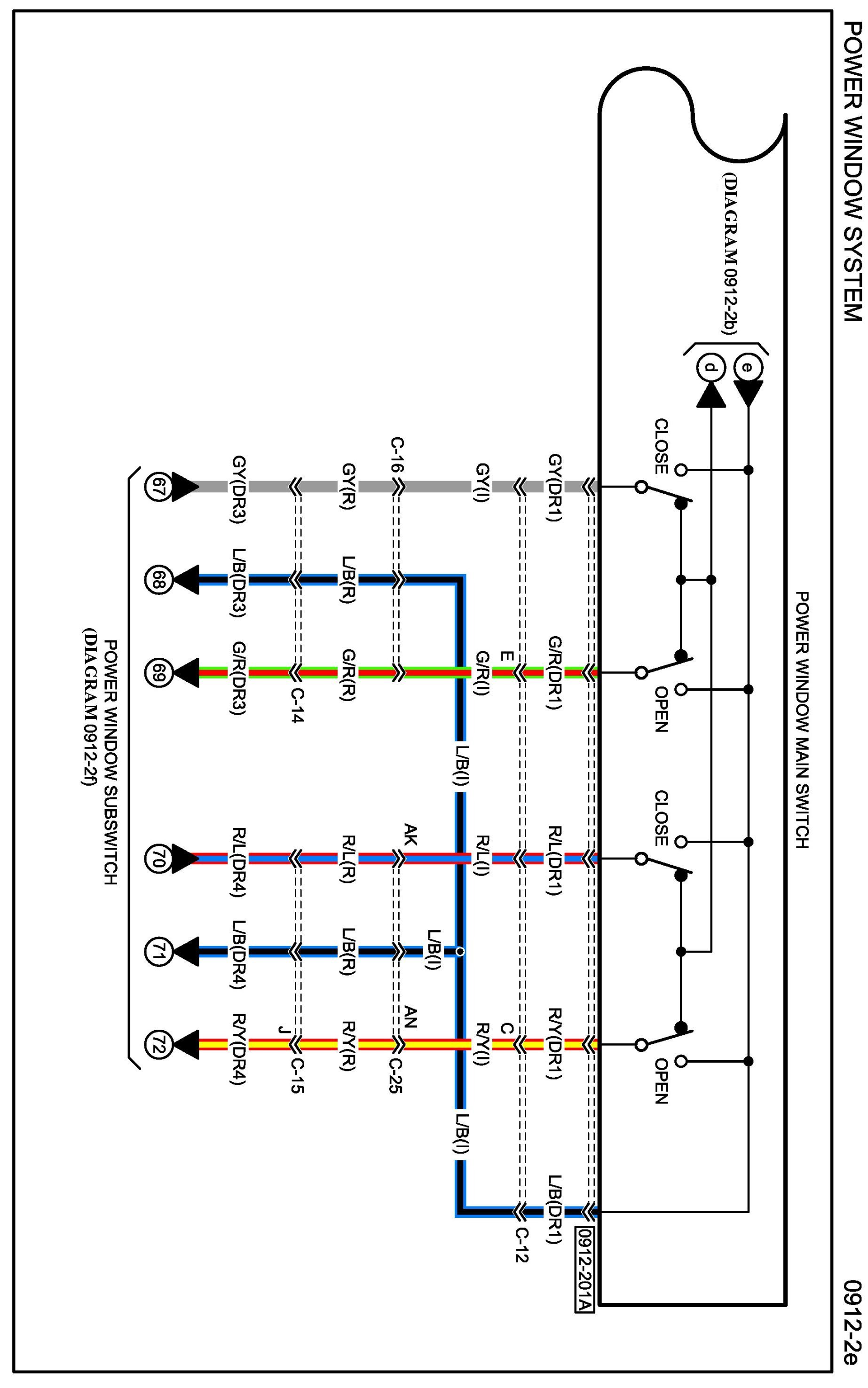

Diagram 0912-2e:

Connectors 0912-2e:

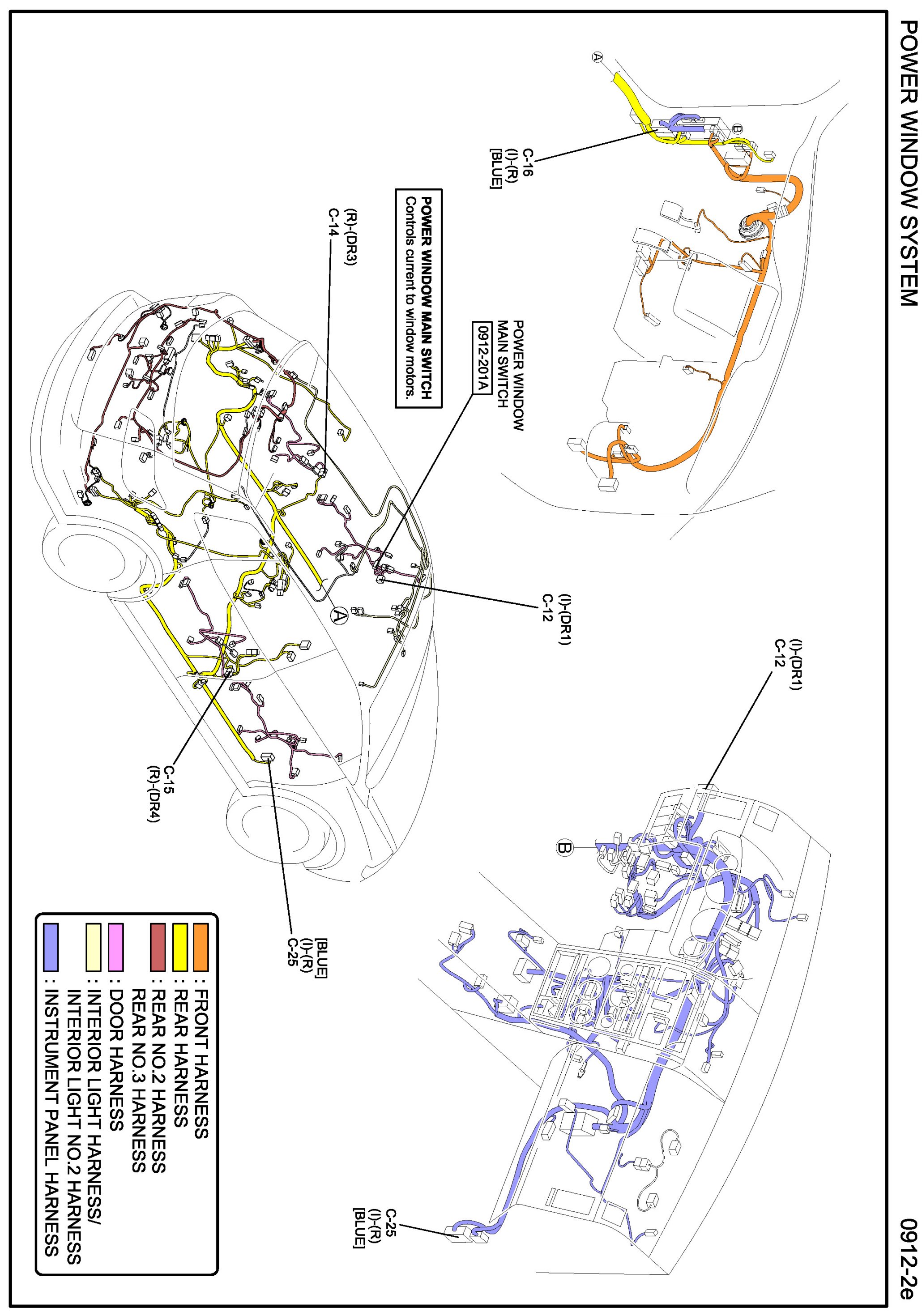

Routing View 0912-2e:

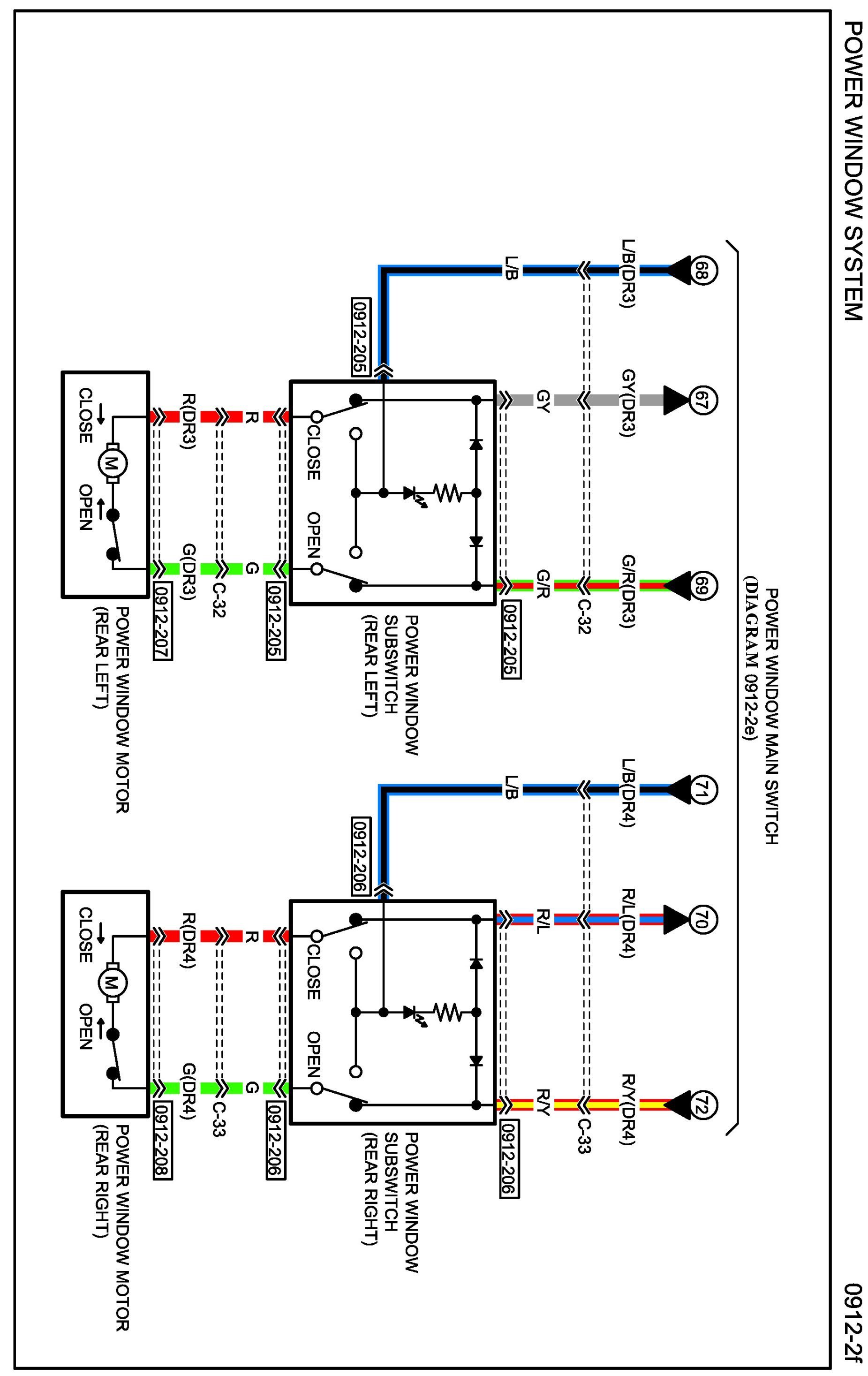

Diagram 0912-2f:

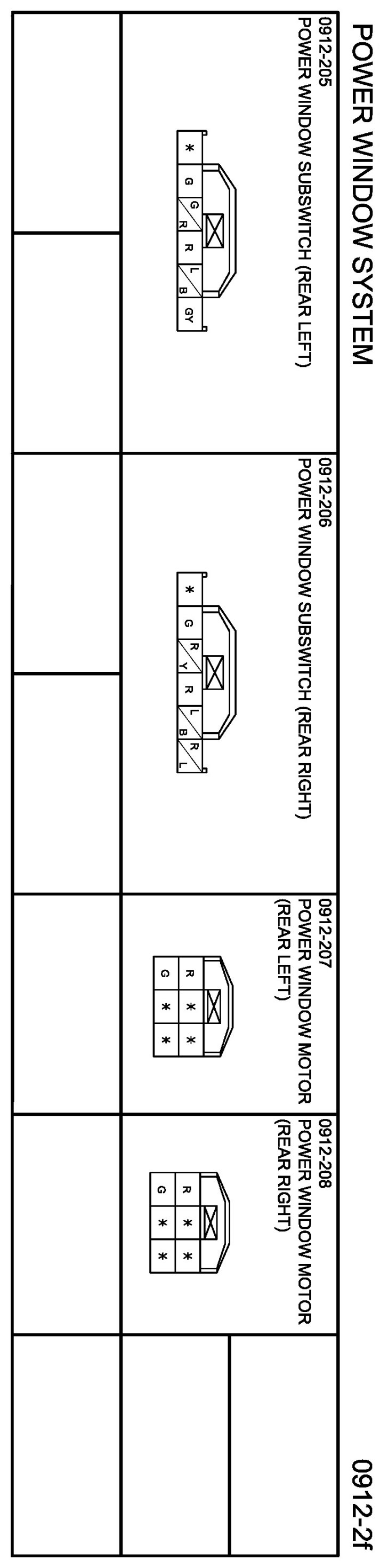

Connectors 0912-2f:

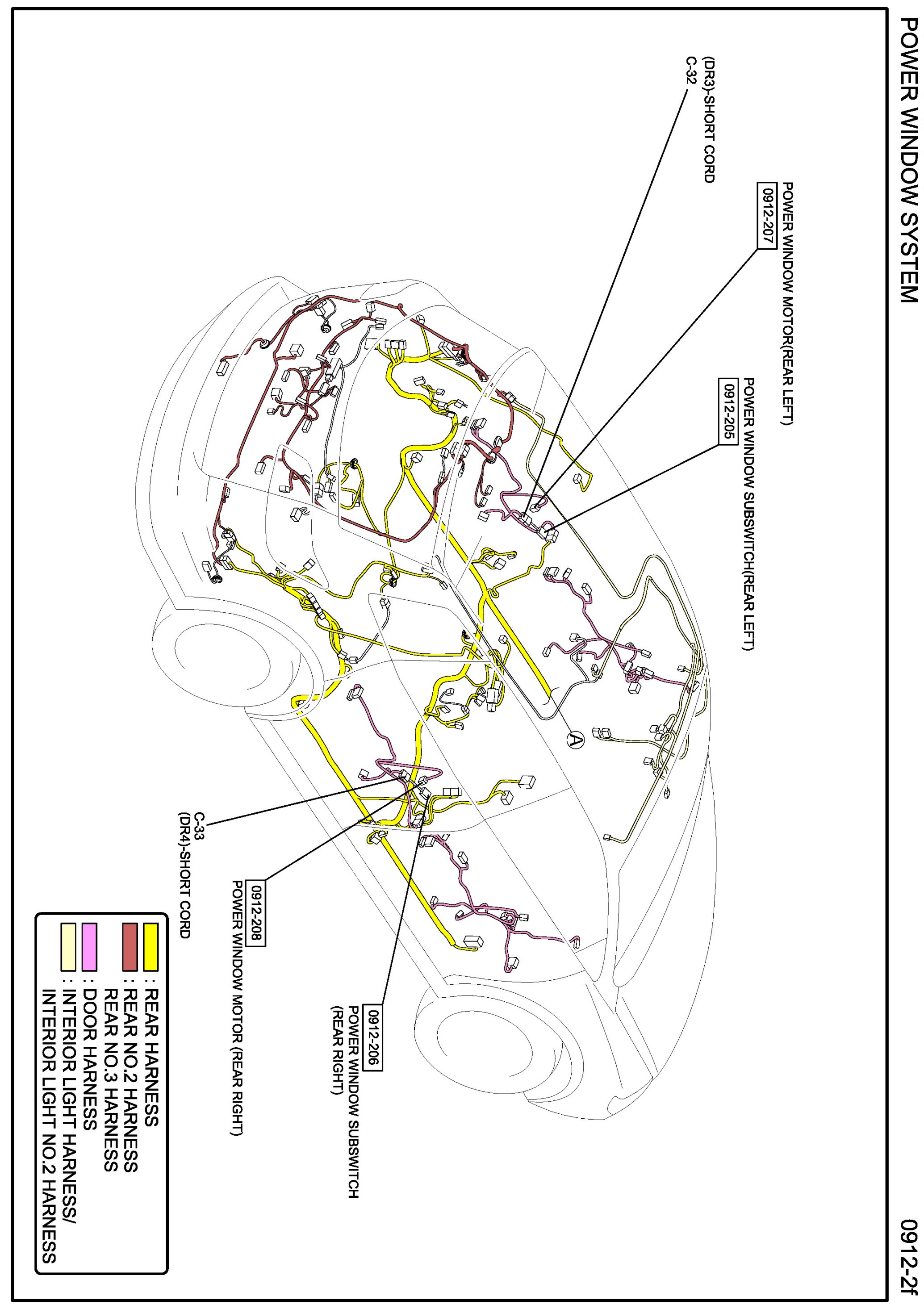

Routing View 0912-2f:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name Diagrams By Diagram Name
