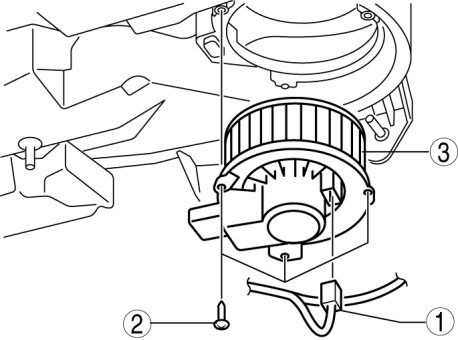

Front Blower Motor Removal/Installation
FRONT BLOWER MOTOR REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Remove the dashboard under cover. (passenger side)
Dashboard Under Cover Removal/Installation 3.

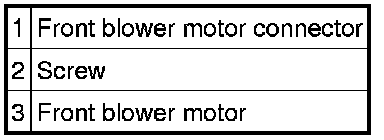

Remove in the order indicated in the table.
4.
Install in the reverse order of removal.
