Cabin Temperature Sensor / Switch: Service and Repair

CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Dashboard under cover (Driver side) Dashboard Under Cover Removal/Installation

b. Side wall Side Wall Removal/Installation

c. Console panel (LH) Console Panel Removal/Installation

d. Hood release lever Service and Repair

e. Lower panel Lower Panel Removal/Installation

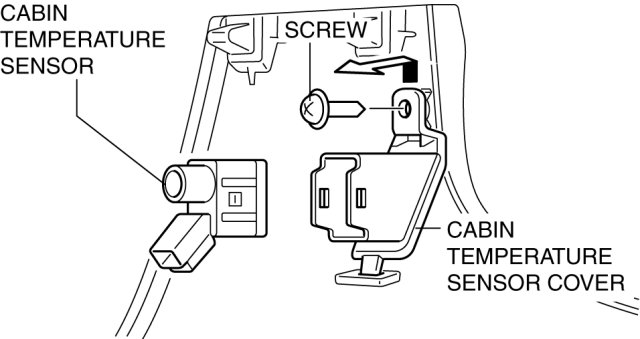

3. Remove the screw.






4. Remove the cabin temperature sensor cover in the direction of the arrow.

5. Remove the cabin temperature sensor.

6. Install in the reverse order of removal.
