Front Climate Control Unit Removal/Installation

FRONT CLIMATE CONTROL UNIT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Decoration panel Decoration Panel Removal/Installation

b. Front console box mat Front Console Box Mat Removal/Installation

c. Indicator panel Indicator Panel Removal/Installation

d. Front console box Front Console Box Removal/Installation

e. Center panel Center Panel Removal/Installation

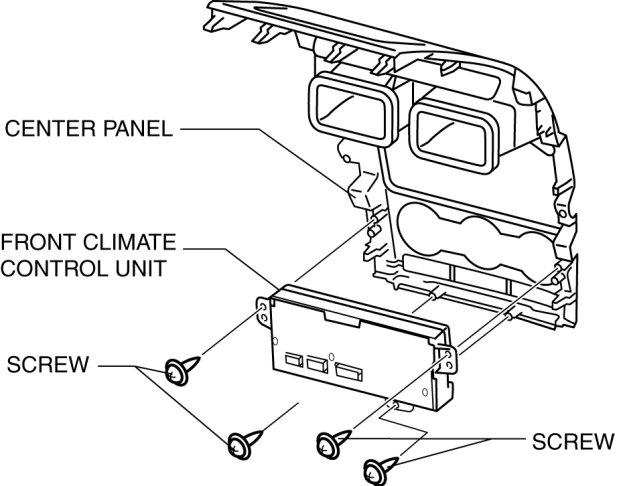

3. Remove the screws.

4. Remove the front climate control unit.

5. Install in the reverse order of removal.
