Overhaul

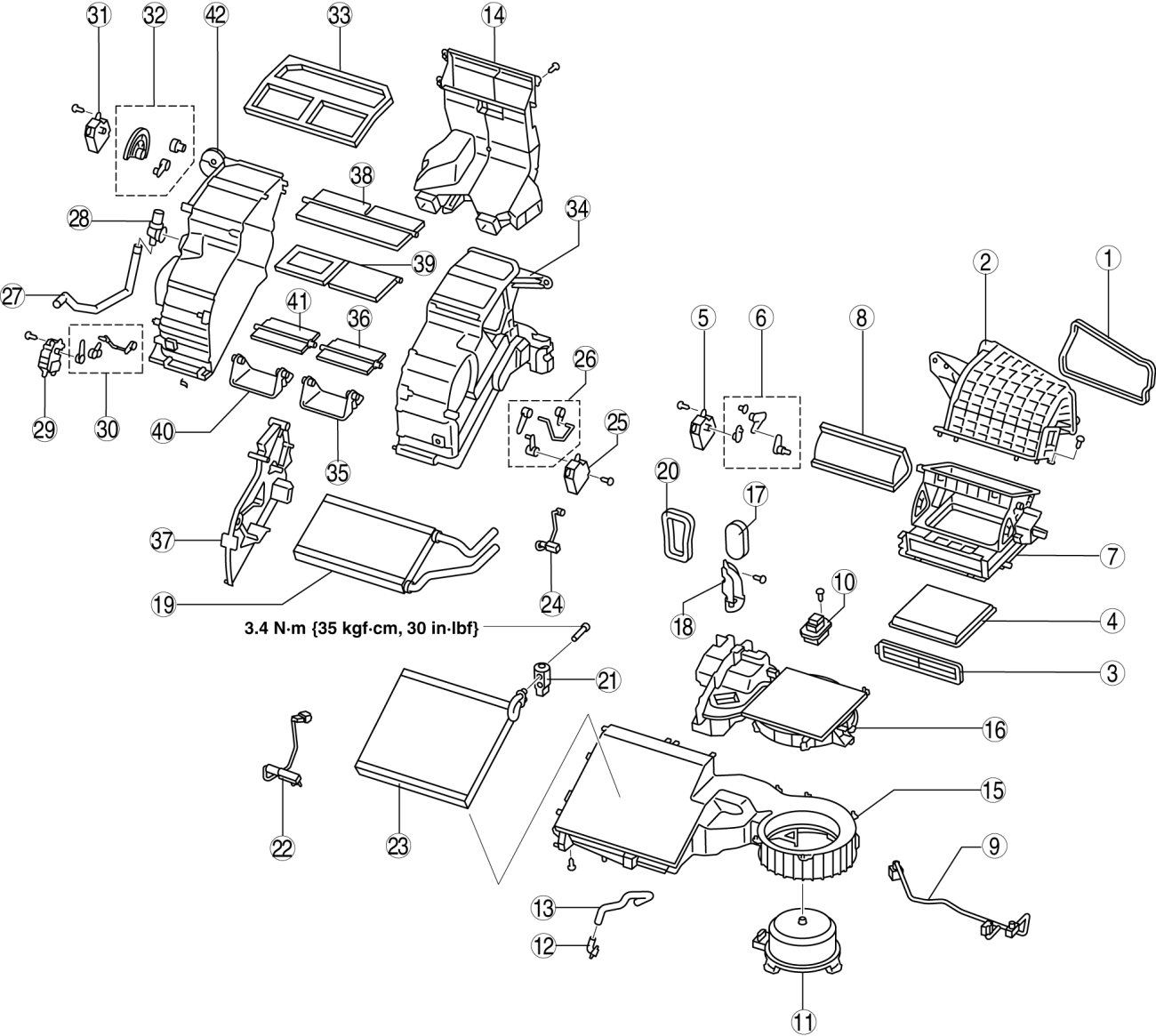

FRONT A/C UNIT DISASSEMBLY/ASSEMBLY

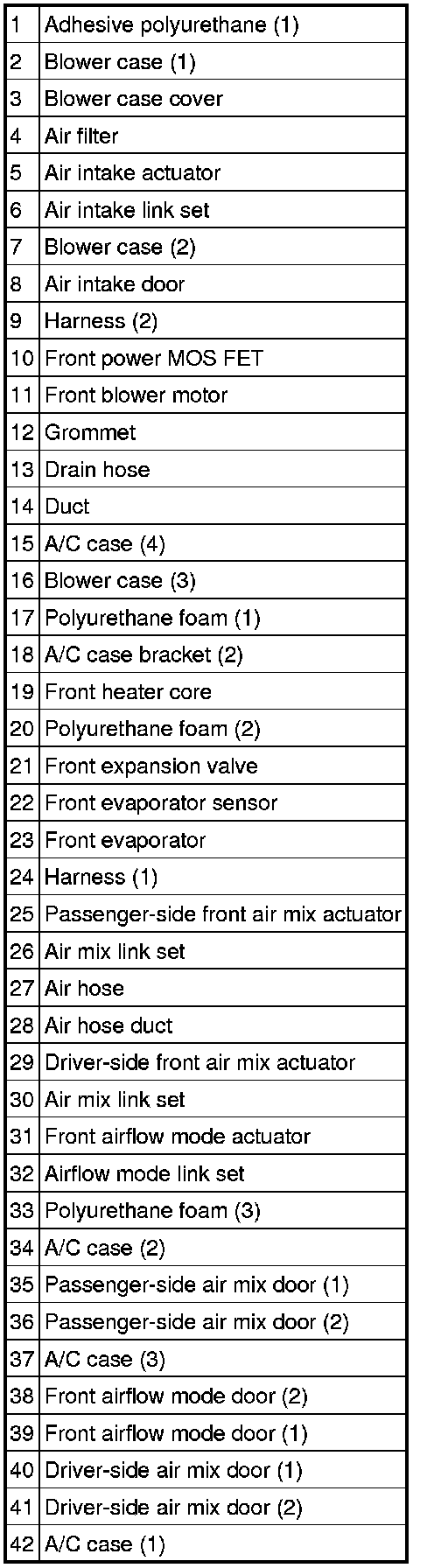

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.
