Front Power Metal Oxide Semiconductor Field Effect Transistor (Power MOS FET) Removal/Installation




FRONT POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the dashboard under cover. (passenger side) Dashboard Under Cover Removal/Installation

3. Remove the glove compartment. Service and Repair

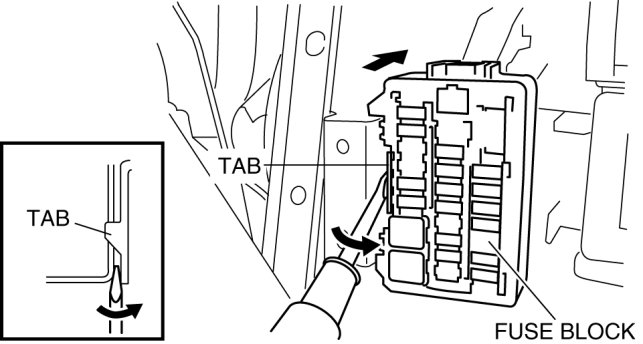

4. Insert a flathead screwdriver as shown in the figure and detach the fuse block tab by prying it in the direction of the arrow.






5. Press the fuse block and remove it from the bracket.

6. Set the fuse block out of the way.

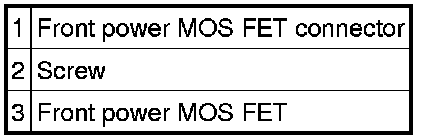

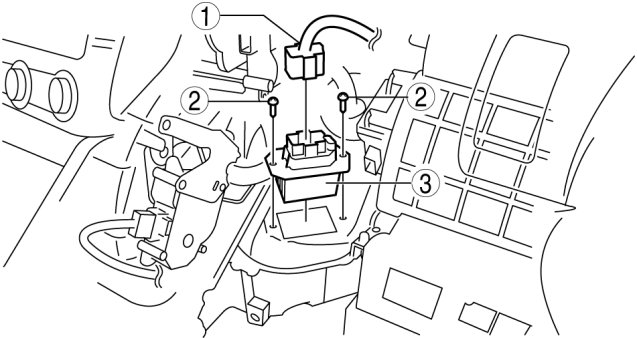

7. Remove in the order indicated in the table.










8. Install in the reverse order of removal.
