Refrigerant System General Procedures

REFRIGERANT SYSTEM GENERAL PROCEDURES

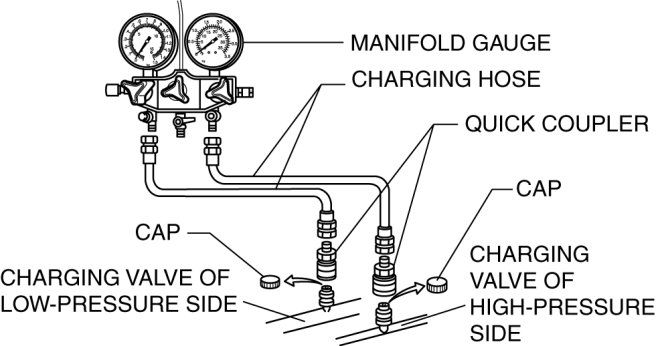

Manifold Gauge Set Installation

1. Fully close the valves of the manifold gauge.

2. Connect the charging hoses to the high and low-pressure side joints of the manifold gauge.

3. Connect the quick couplers to the ends of the charging hoses.

4. Connect the quick couplers to the charging valves.
