No. 10 Noise While Operating A/C System.

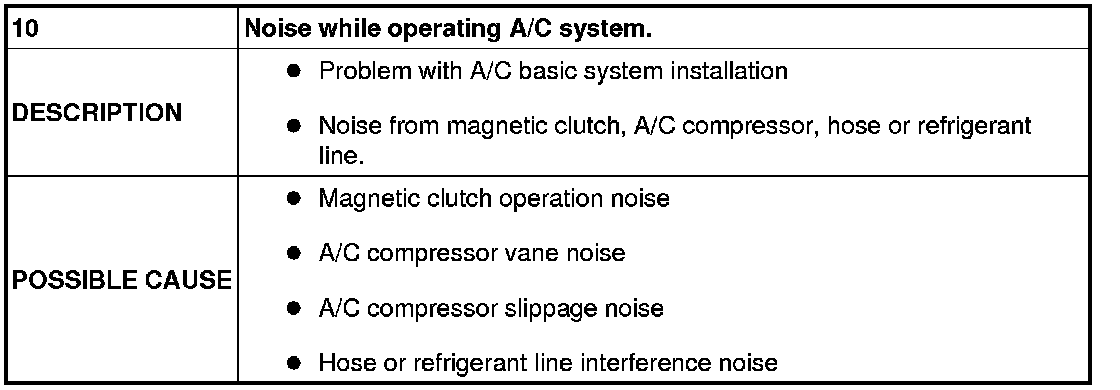

NO.10 NOISE WHILE OPERATING A/C SYSTEM.

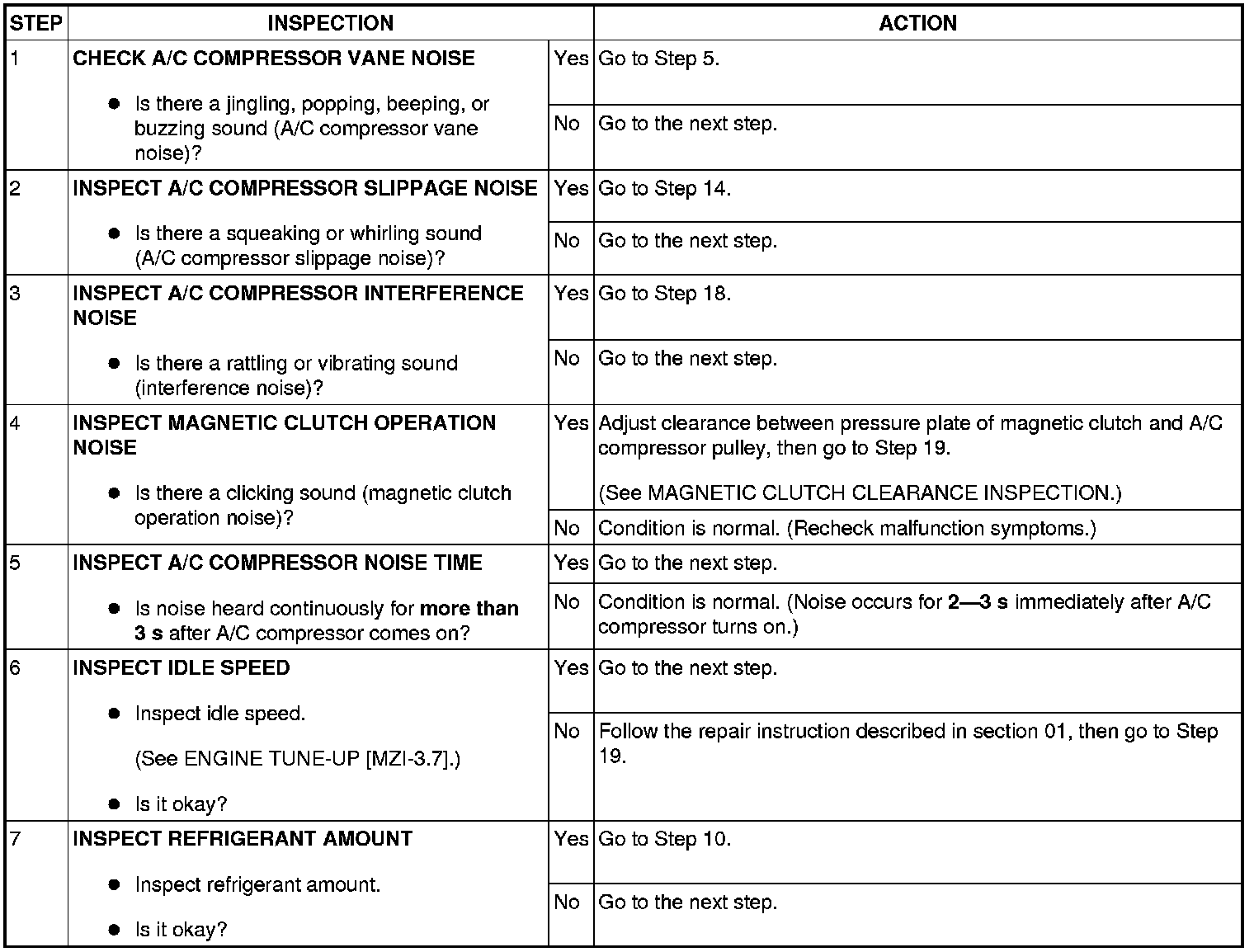

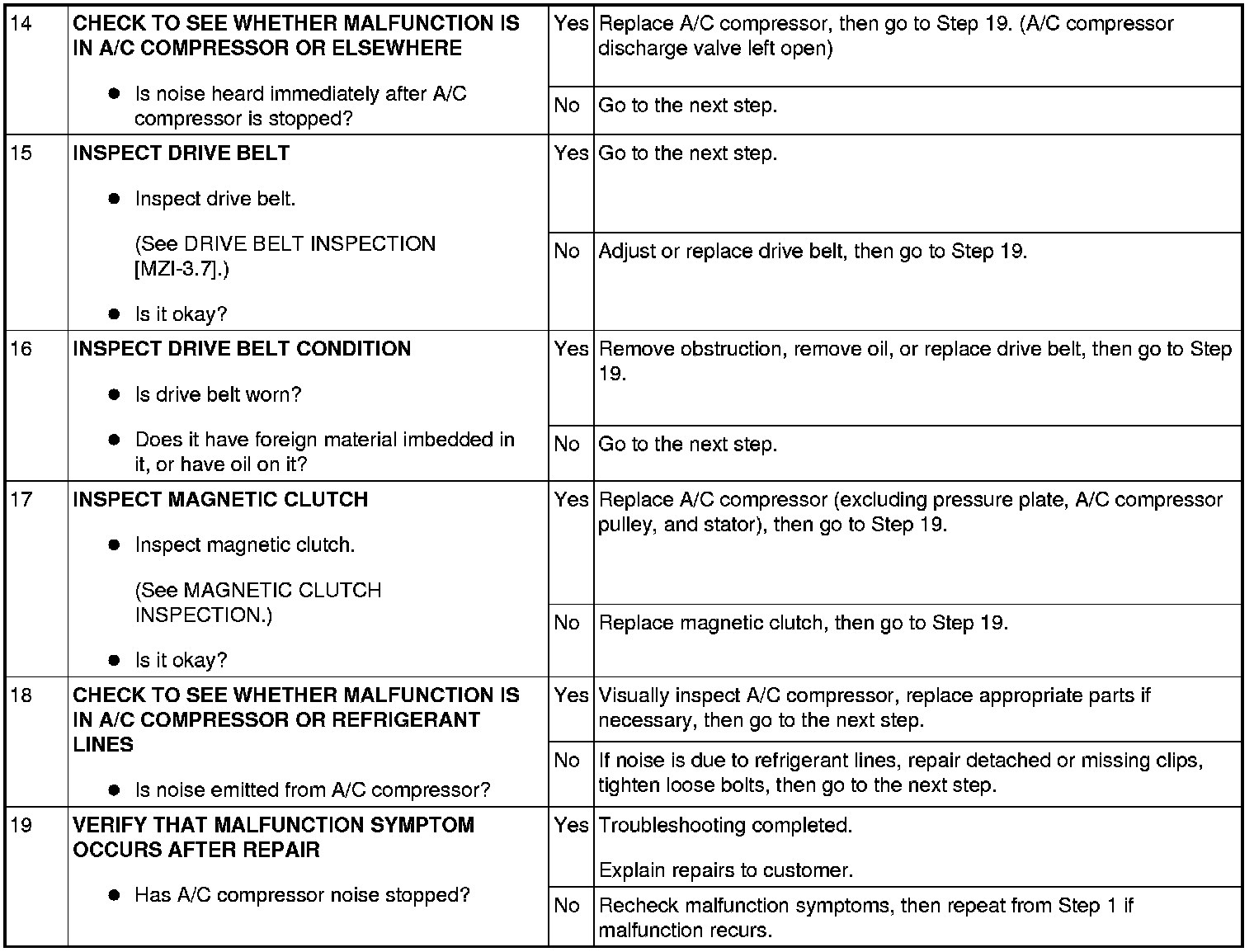

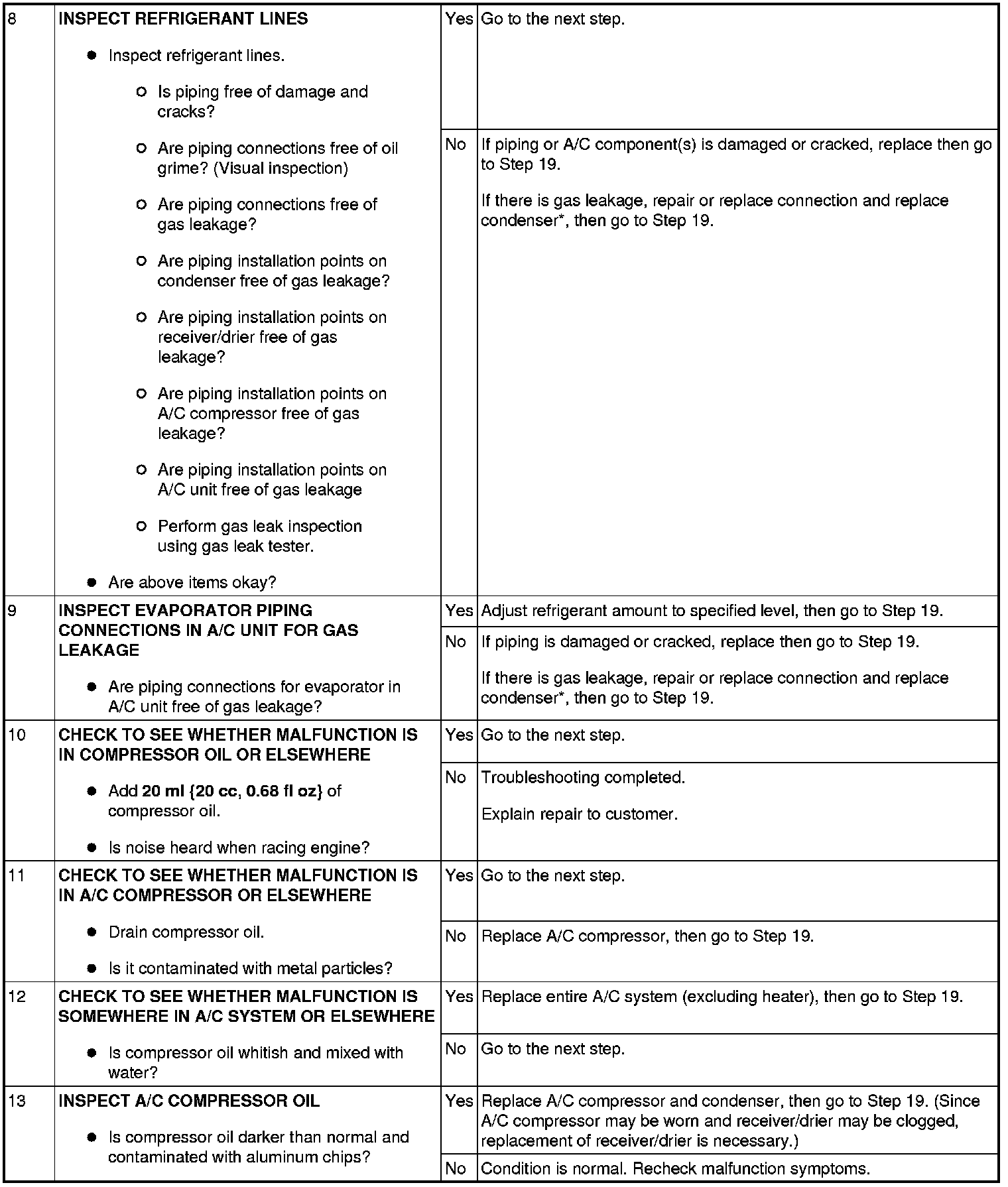

Diagnostic procedure













*
If there is gas leakage, air enters into the A/C system. The desiccant within the receiver/drier absorbs the moisture from the air and becomes saturated. If the A/C system is used in this condition, the inside of the A/C compressor will begin to rust due to this moisture, which may cause lock up or noise to occur. Therefore, replacement of the receiver/drier is necessary.
